| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Ø inch (mm) | Flow rate Nl/min. 1 - 2 | Flow rate Nl/min. 2 - 3 | Response Time (ms) En. | Response Time (ms) De-en. | Manual override | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

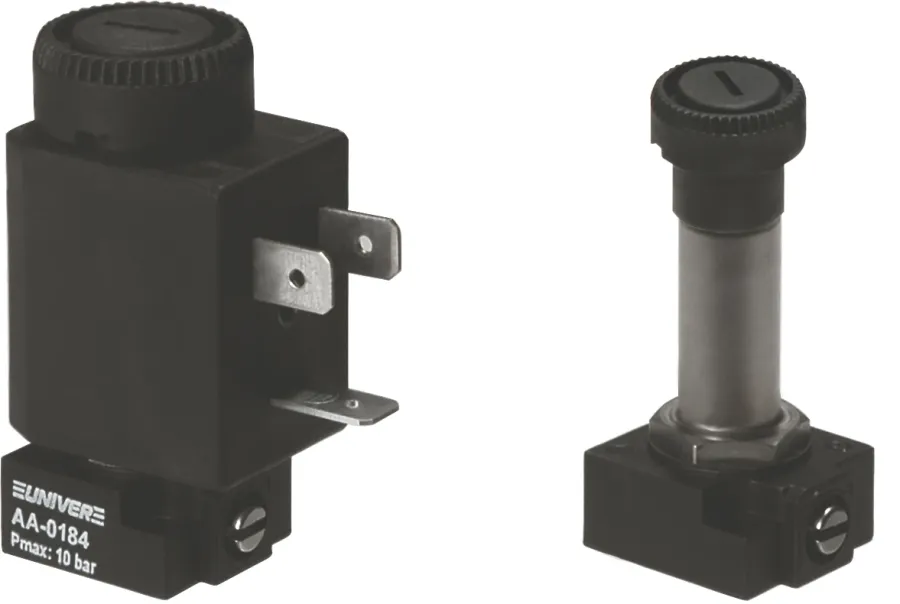

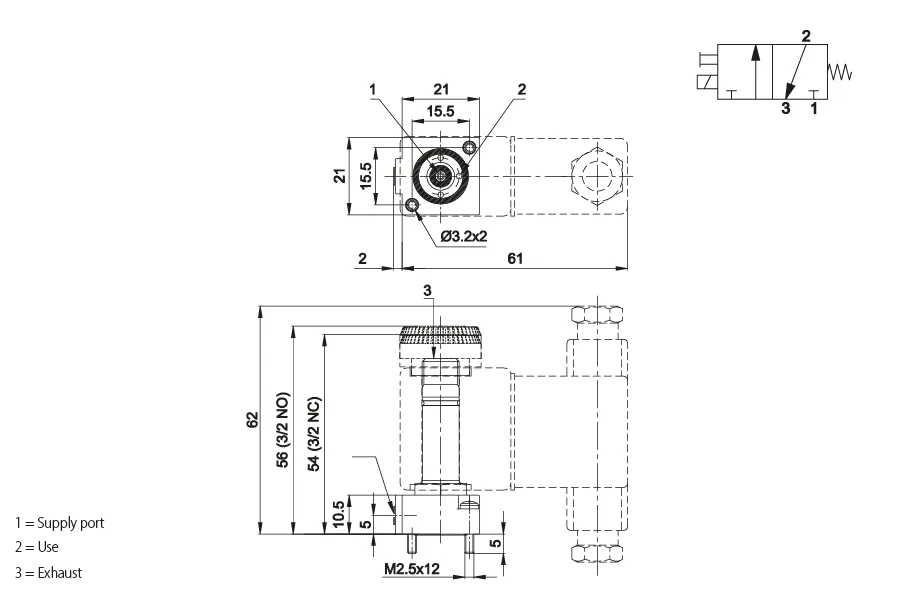

| UAA 0184 | UAA0184 | Request access | 3/2 | NC | .059 (1.5) | 60 | 80 | 12 | 12 | Screwdriver adjustment | 0.06 (0.027) | ||

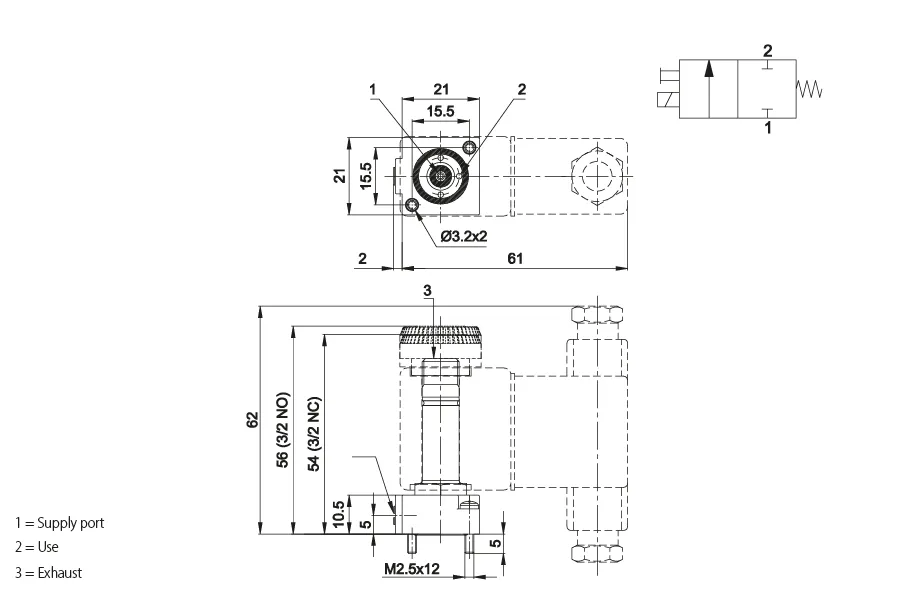

| UAA 0186 | UAA0186 | Request access | 2/2 | NC | .051 (1.3) | 50 | - | 16 | - | Screwdriver adjustment | 0.06 (0.027) | ||

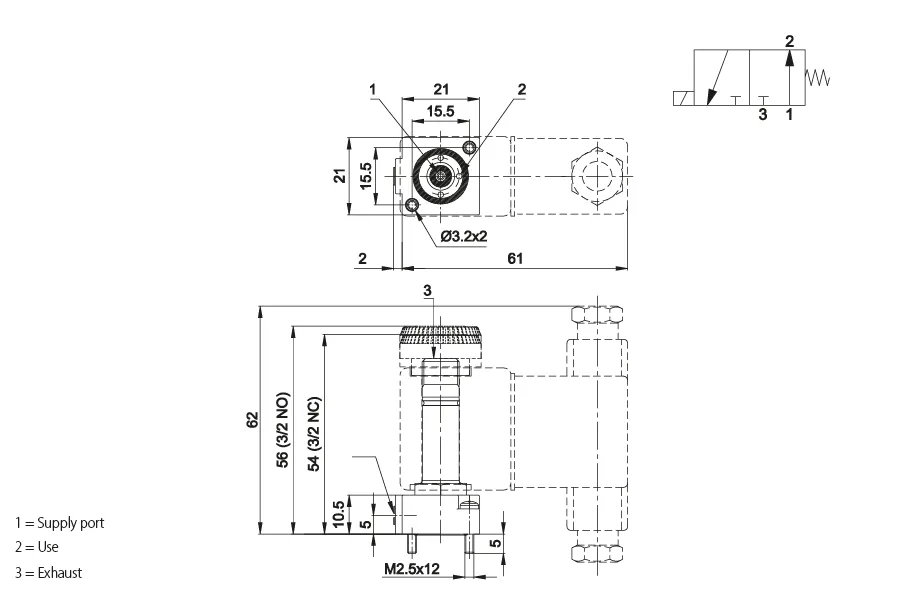

| UAA 0188 | UAA0188 | Request access | 3/2 | NO | .047 (1.2) | 30 | 70 | 11 | 10 | Button on the ring nut | 0.07 (0.030) |
