80621

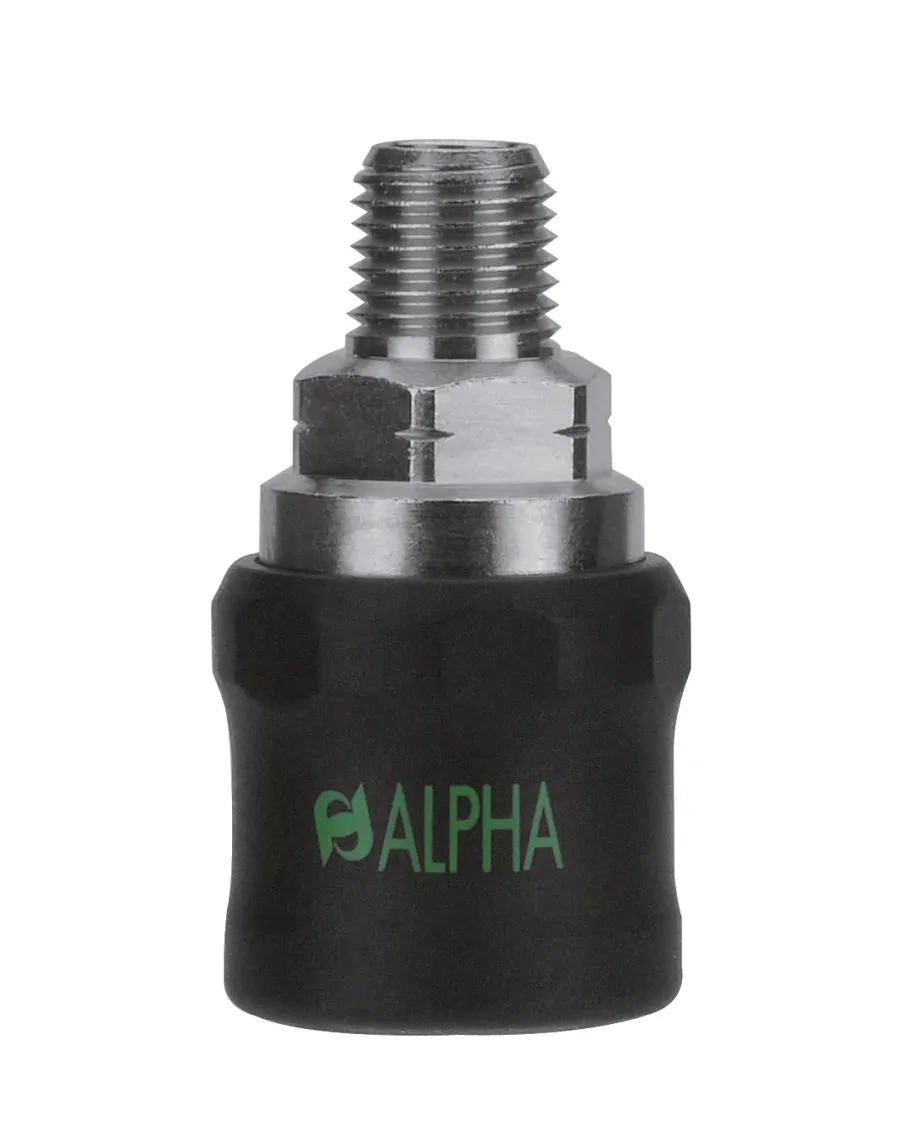

MALE SAFETY COUPLER - NPTF

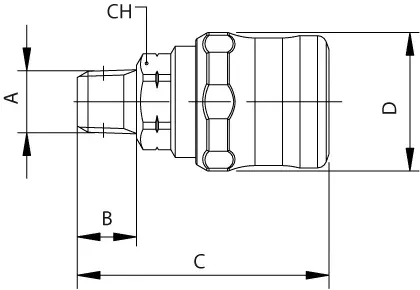

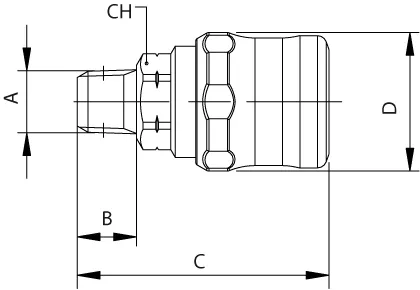

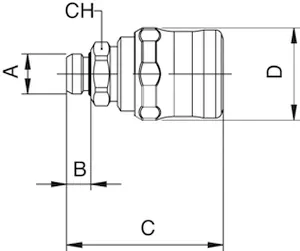

| Code | USA Ref | 3D Drawings | A NPTF | B | C | D | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 80621 00 001 | 80621-04 | Request access | 1/4 | 0.512 (13) | 2.165 (55) | 1.201 (30.5) | 0.748 (19) | 10 | |
| 80621 00 002 | 80621-06 | Request access | 3/8 | 0.512 (13) | 2.165 (55) | 1.201 (30.5) | 0.748 (19) | 10 | |
| 80621 00 003 | 80621-08 | Request access | 1/2 | 0.669 (17) | 2.323 (59) | 1.201 (30.5) | 0.866 (22) | 10 |
