90241
TOOL FOR SADDLE CLAMP CONNECTOR

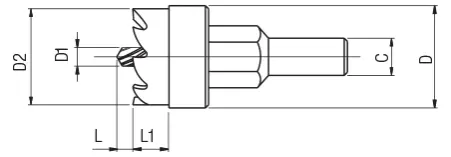

| Code | USA Ref | 3D Drawings | Tube | C | D | D1 | D2 | L | L1 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90241 00 003 | 90241-25 | Request access | 25 | 0.354 (9) | 0.689 (17.5) | 0.236 (6) | 0.669 (17) | 0.118 (3) | 0.394 (10) | 1 | |
| 90241 00 001 | 90241-32 | Request access | 32-40-80-110-168-3/4-168-1" | 0.354 (9) | 0.945 (24) | 0.236 (6) | 0.925 (23.5) | 0.118 (3) | 0.394 (10) | 1 | |
| 90241 00 002 | 90241-50 | Request access | 50-63 | 0.354 (9) | 1.220 (31) | 0.236 (6) | 1.201 (30.5) | 0.118 (3) | 0.354 (9) | 1 | |
| 90241 00 004 | 90241-168 | Request access | 168 1"1/2-168 2" | 0.394 (10) | 1.614 (41) | 0.236 (6) | 1.594 (40.5) | 0.118 (3) | 0.512 (13) | 1 |
