90230-80-110-168

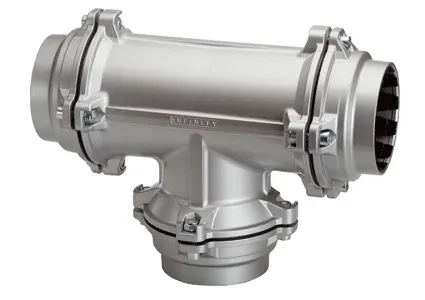

TEE CONNECTOR

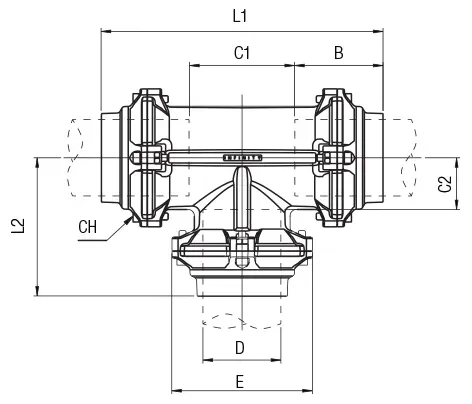

| Code | USA Ref | 3D Drawings | D | E | B | C1 | C2 | L1 | L2 | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90230 00 007 | 90230-80 | Request access | 80 | 5.709 (145) | 3.583 (91) | 4.291 (109) | 2.146 (54.5) | 11.476 (291.5) | 5.433 (138) | 0.236 (6) | 1 | |
| 90230 00 008 | 90230-110 | Request access | 110 | 7.874 (200) | 4.941 (125.5) | 5.925 (150.5) | 2.953 (75) | 15.787 (401) | 7.894 (200.5) | 0.315 (8) | 1 | |
| 90230 00 009 | 90230-168 | Request access | 168 | 12.047 (306) | 7.638 (194) | 9.252 (235) | 4.626 (117.5) | 24.528 (623) | 12.264 (311.5) | 0.394 (10) | 1 |
