90601
SINGLE OUTLET - NPTF
ADJUSTABLE

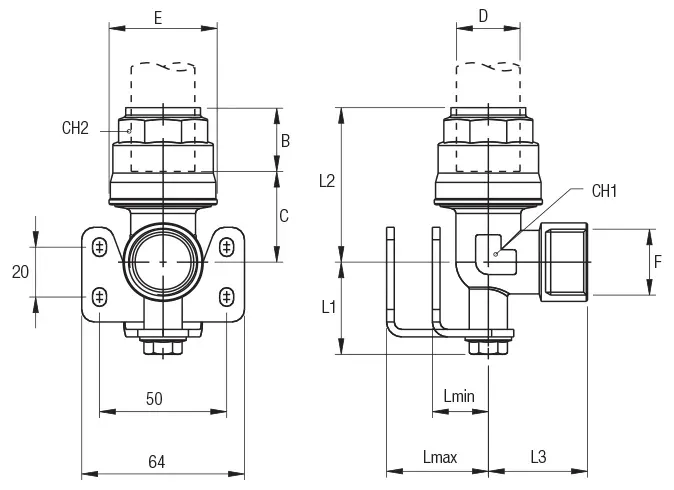

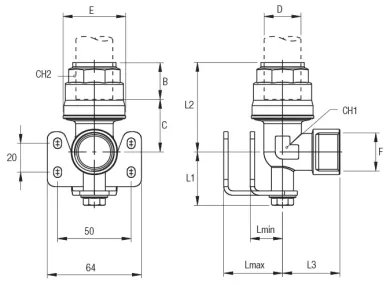

| Code | USA Ref | 3D Drawings | D | F (NPTF) | B | C | E | L1 | L2 | L3 | L Max | L Min | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90601 00 001 | 90601-20-08 | Request access | 20 | 1/2 | 1.240 (31.5) | 0.768 (19.5) | 1.358 (34.5) | 1.378 (35) | 2.008 (51) | 1.378 (35) | 1.575 (40) | 0.866 (22) | 0.827 (21) | 1.181 (30) | 4 | |
| 90601 00 002 | 90601-25-08 | Request access | 25 | 1/2 | 1.516 (38.5) | 0.906 (23) | 1.673 (42.5) | 1.457 (37) | 2.441 (62) | 1.535 (39) | 1.575 (40) | 0.866 (22) | 1.024 (26) | 1.378 (35) | 3 | |
| 90601 00 003 | 90601-32-08 | Request access | 32 | 1/2 | 1.811 (46) | 1.102 (28) | 2.441 (62) | 1.614 (41) | 2.933 (74.5) | 1.909 (48.5) | 1.575 (40) | 1.024 (26) | 1.339 (34) | 1.772 (45) | 2 |
