90255

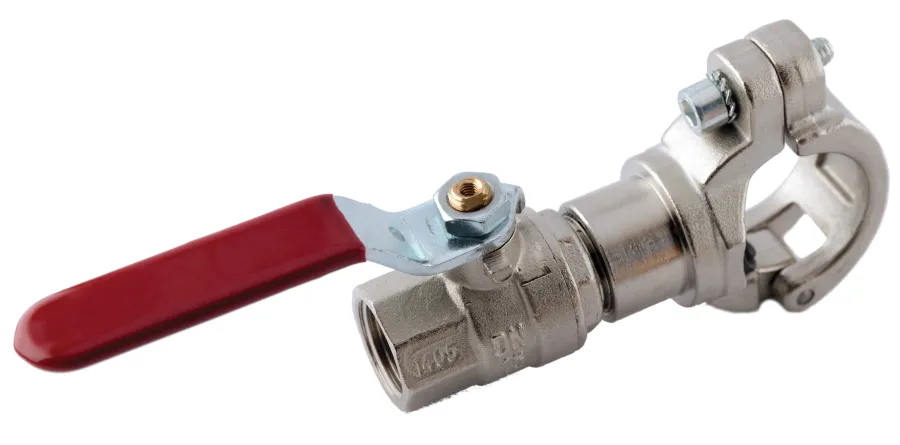

SADDLE CLAMP CONNECTOR WITH VALVE - NPTF

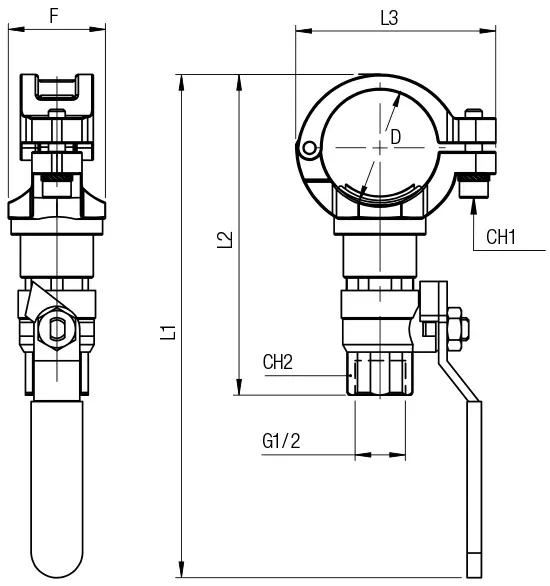

| Code | USA Ref | 3D Drawings | D | G | F | L1 | L2 | L3 | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90255 00 002 | 90255-25-08 | Request access | 25 | 1/2 | 1.004 (25.5) | 6.339 (161) | 3.839 (97.5) | 2.185 (55.5) | 0.197 (5) | 0.984 (25) | 1 | |
| 90255 00 003 | 90255-32-08 | Request access | 32 | 1/2 | 1.339 (34) | 6.614 (168) | 4.094 (104) | 2.421 (61.5) | 0.197 (5) | 0.984 (25) | 1 | |
| 90255 00 004 | 90255-40-08 | Request access | 40 | 1/2 | 1.339 (34) | 6.929 (176) | 4.409 (112) | 2.756 (70) | 0.197 (5) | 0.984 (25) | 1 | |
| 90255 00 005 | 90255-50-08 | Request access | 50 | 1/2 | 1.673 (42.5) | 7.402 (188) | 4.921 (125) | 3.327 (84.5) | 0.236 (6) | 0.984 (25) | 1 | |
| 90255 00 006 | 90255-63-08 | Request access | 63 | 1/2 | 1.673 (42.5) | 7.874 (200) | 5.394 (137) | 3.819 (97) | 0.236 (6) | 0.984 (25) | 1 |
