90235
OUTLET REDUCING TEE

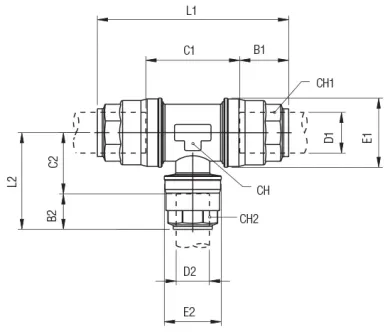

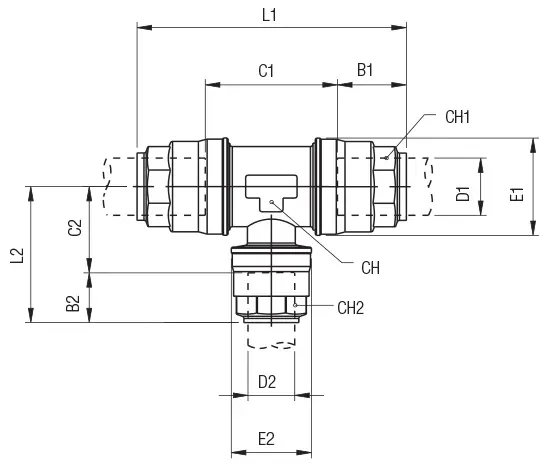

| Code | USA Ref | 3D Drawings | D1 | D2 | B1 | B2 | C1 | C2 | E1 | E2 | L1 | L2 | CH | CH1 | CH2 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90235 00 013 | 90235-20-20 | Request access | 20 | 20 | 1.240 (31.5) | 1.240 (31.5) | 1.890 (48) | 0.886 (22.5) | 1.358 (34.5) | 1.358 (34.5) | 4.291 (109) | 2.126 (54) | 1.102 (28) | 1.181 (30) | 1.181 (30) | 3 | ||
| 90235 00 001 | 90235-25-20 | Request access | 25 | 20 | 1.496 (38) | 1.240 (31.5) | 1.791 (45.5) | 1.083 (27.5) | 1.673 (42.5) | 1.358 (34.5) | 4.783 (121.5) | 2.323 (59) | 1.378 (35) | 1.378 (35) | 1.181 (30) | 3 | ||
| 90235 00 002 | 90235-32-20 | Request access | 32 | 20 | 1.811 (46) | 1.240 (31.5) | 2.146 (54.5) | 1.240 (31.5) | 2.047 (52) | 1.358 (34.5) | 5.768 (146.5) | 2.480 (63) | 1.772 (45) | 1.772 (45) | 1.181 (30) | 2 | ||
| 90235 00 003 | 90235-32-25 | Request access | 32 | 25 | 1.811 (46) | 1.496 (38) | 2.146 (54.5) | 1.240 (31.5) | 2.047 (52) | 1.673 (42.5) | 5.768 (146.5) | 2.756 (70) | 1.772 (45) | 1.772 (45) | 1.378 (35) | 2 | ||
| 90235 00 004 | 90235-40-20 | Request access | 40 | 20 | 2.067 (52.5) | 1.240 (31.5) | 2.362 (60) | 1.358 (34.5) | 2.480 (63) | 1.358 (34.5) | 6.516 (165.5) | 2.598 (66) | 2.165 (55) | 2.165 (55) | 1.181 (30) | 1 | ||
| 90235 00 005 | 90235-40-25 | Request access | 40 | 25 | 2.067 (52.5) | 1.496 (38) | 2.362 (60) | 1.358 (34.5) | 2.480 (63) | 1.673 (42.5) | 6.516 (165.5) | 2.874 (73) | 2.165 (55) | 2.165 (55) | 1.378 (35) | 1 | ||
| 90235 00 007 | 90235-50-20 | Request access | 50 | 20 | 2.500 (63.5) | 1.240 (31.5) | 2.894 (73.5) | 1.634 (41.5) | 2.874 (73) | 1.358 (34.5) | 7.913 (201) | 2.874 (73) | 2.559 (65) | 2.559 (65) | 1.181 (30) | 1 | ||
| 90235 00 008 | 90235-50-25 | Request access | 50 | 25 | 2.500 (63.5) | 1.516 (38.5) | 2.894 (73.5) | 1.614 (41) | 2.874 (73) | 1.673 (42.5) | 7.913 (201) | 3.150 (80) | 2.559 (65) | 2.559 (65) | 1.378 (35) | 1 | ||
| 90235 00 009 | 90235-50-32 | Request access | 50 | 32 | 2.500 (63.5) | 1.811 (46) | 2.894 (73.5) | 1.614 (41) | 2.874 (73) | 2.047 (52) | 7.913 (201) | 3.445 (87.5) | 2.559 (65) | 2.559 (65) | 1.772 (45) | 1 | ||
| 90235 00 010 | 90235-63-20 | Request access | 63 | 20 | 2.323 (59) | 1.240 (31.5) | 3.386 (86) | 1.929 (49) | 3.622 (92) | 1.358 (34.5) | 9.350 (237.5) | 3.189 (81) | 3.150 (80) | 2.756 (70) | 1.181 (30) | 1 | ||
| 90235 00 011 | 90235-63-25 | Request access | 63 | 25 | 2.323 (59) | 1.516 (38.5) | 3.386 (86) | 1.929 (49) | 3.622 (92) | 1.673 (42.5) | 8.051 (204.5) | 3.465 (88) | 3.150 (80) | 2.756 (70) | 1.378 (35) | 1 | ||
| 90235 00 012 | 90235-63-32 | Request access | 63 | 32 | 2.323 (59) | 1.811 (46) | 3.386 (86) | 1.929 (49) | 3.622 (92) | 2.047 (52) | 8.051 (204.5) | 3.760 (95.5) | 3.150 (80) | 2.756 (70) | 1.772 (45) | 1 | ||
| 90235 00 007 A | 90235A-50-20 | Request access | 50 | 20 | 2.303 (58.5) | 1.299 (33) | 4.134 (105) | 2.244 (57) | 3.307 (84) | 1.575 (40) | 8.740 (222) | 3.543 (90) | 2.717 (69) | 2.835 (72) | 1.181 (30) | Aluminium | 1 | |
| 90235 00 008 A | 90235A-50-25 | Request access | 50 | 25 | 2.303 (58.5) | 1.614 (41) | 4.134 (105) | 2.244 (57) | 3.307 (84) | 1.929 (49) | 8.740 (222) | 3.858 (98) | 2.717 (69) | 2.835 (72) | 1.378 (35) | Aluminium | 1 | |
| 90235 00 009 A | 90235A-50-32 | Request access | 50 | 32 | 2.303 (58.5) | 1.772 (45) | 4.134 (105) | 2.244 (57) | 3.307 (84) | 2.283 (58) | 8.740 (222) | 4.016 (102) | 2.717 (69) | 2.835 (72) | 1.772 (45) | Aluminium | 1 | |
| 90235 00 010 A | 90235A-63-20 | Request access | 63 | 20 | 2.264 (57.5) | 1.299 (33) | 3.445 (87.5) | 2.539 (64.5) | 3.701 (94) | 1.575 (40) | 8.091 (205.5) | 3.819 (97) | 3.150 (80) | 2.953 (75) | 1.181 (30) | Aluminium | 1 | |
| 90235 00 011 A | 90235A-63-25 | Request access | 63 | 25 | 2.264 (57.5) | 1.614 (41) | 3.445 (87.5) | 2.539 (64.5) | 3.701 (94) | 1.929 (49) | 8.091 (205.5) | 4.134 (105) | 3.150 (80) | 2.953 (75) | 1.378 (35) | Aluminium | 1 | |
| 90235 00 012 A | 90235A-63-32 | Request access | 63 | 32 | 2.264 (57.5) | 1.772 (45) | 3.445 (87.5) | 2.539 (64.5) | 3.701 (94) | 2.283 (58) | 8.091 (205.5) | 4.409 (112) | 3.150 (80) | 2.953 (75) | 1.772 (45) | Aluminium | 1 |
