| Code | USA Ref | 3D Drawings | Ø Int. | Tube | Max Press. | Temperature | Outlet Fitting | Inlet Fitting | Cut Down Size Tube | Air | Flow Rate at 7 Bar | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

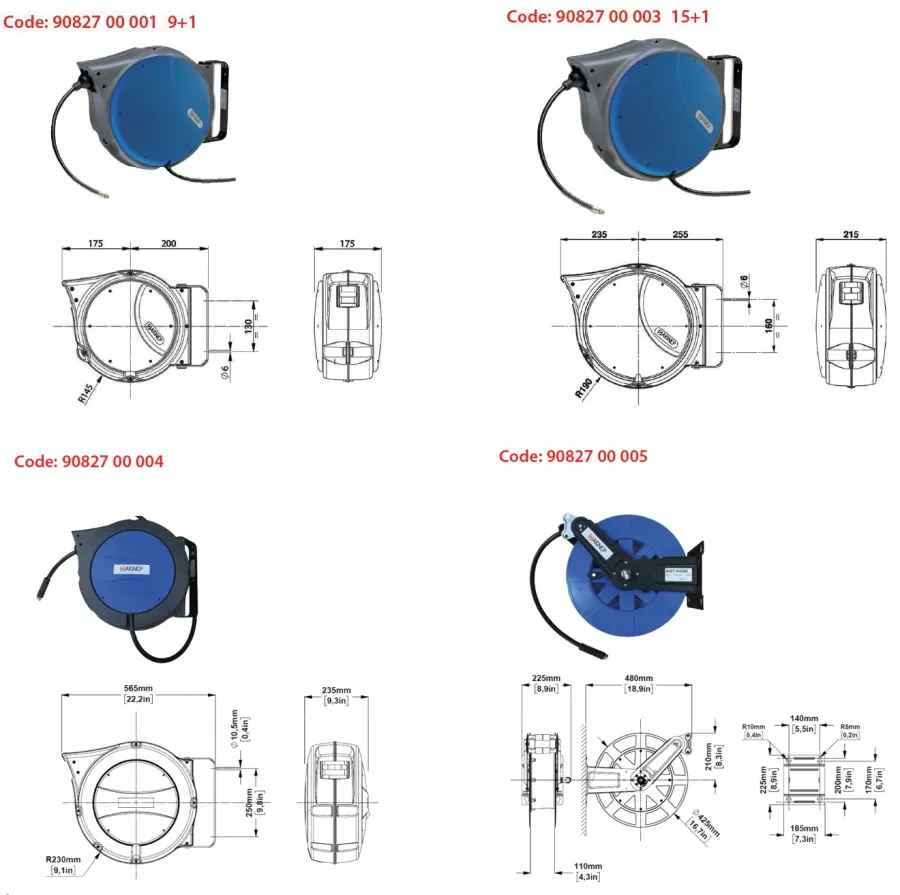

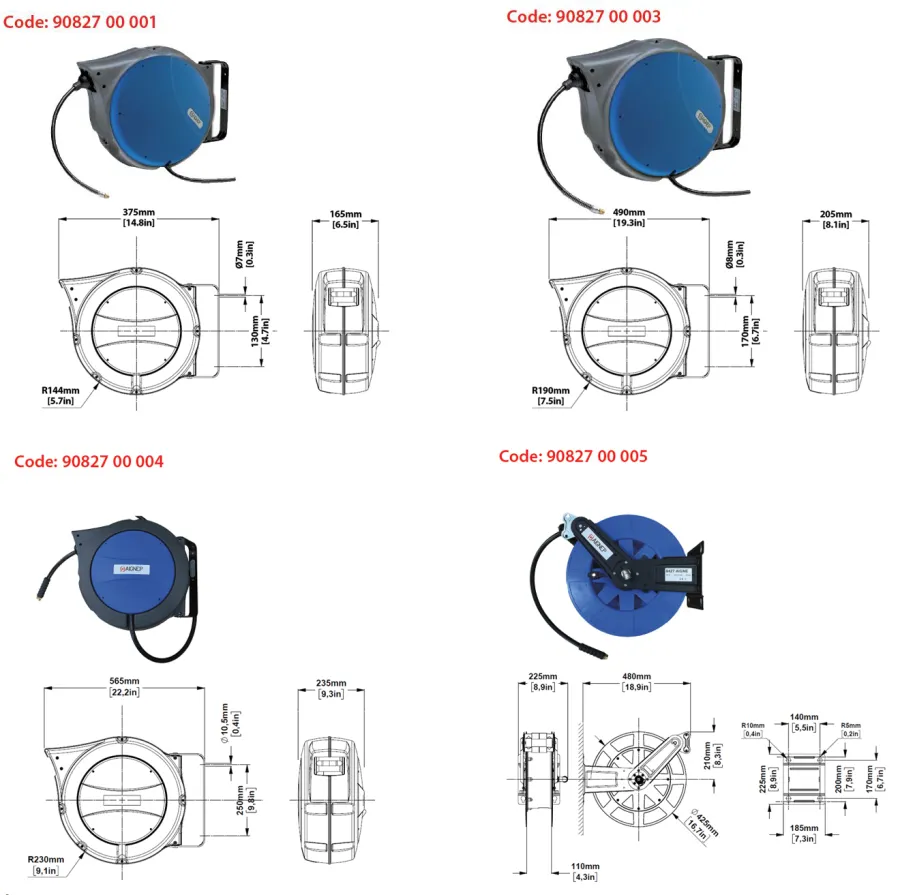

| 90827 000 01 | Request access | 5/16'' | 33 ft (10mt) | 215 PSI (15 Bar / 1,5 Mpa) | 23° ÷ 122°F (-5° ÷ 50 °C) | 1/4 M NPT | 1/4 M NPT | 5 ft (1,5 mt.) | YES | 300 I/min | 1 | ||
| 90827 000 03 | Request access | 3/8'' | 50 ft (15mt) | 215 PSI (15 Bar / 1,5 Mpa) | 23° ÷ 122°F (-5° ÷ 50 °C) | 3/8 M NPT | 3/8 M NPT | 5 ft (1,5 mt.) | YES | 450 I/min | 1 | ||
| 90827 000 04 | Request access | 1/2'' | 50 ft (15mt) | 215 PSI (15 Bar / 1,5 Mpa) | 23° ÷ 122°F (-5° ÷ 50 °C) | 1/2" M NPT | 1/2" M NPT | 5 ft (1,5 mt.) | YES | 800 I/min | 1 | ||
| 90827 000 05 | Request access | 1/2'' | 65 ft (20mt) | 290 PSI (20 Bar / 2,0 Mpa) | 23° ÷ 122°F (-5° ÷ 50 °C) | 1/2" M NPT | 1/2" M NPT | - | YES | 800 I/min | 1 |
