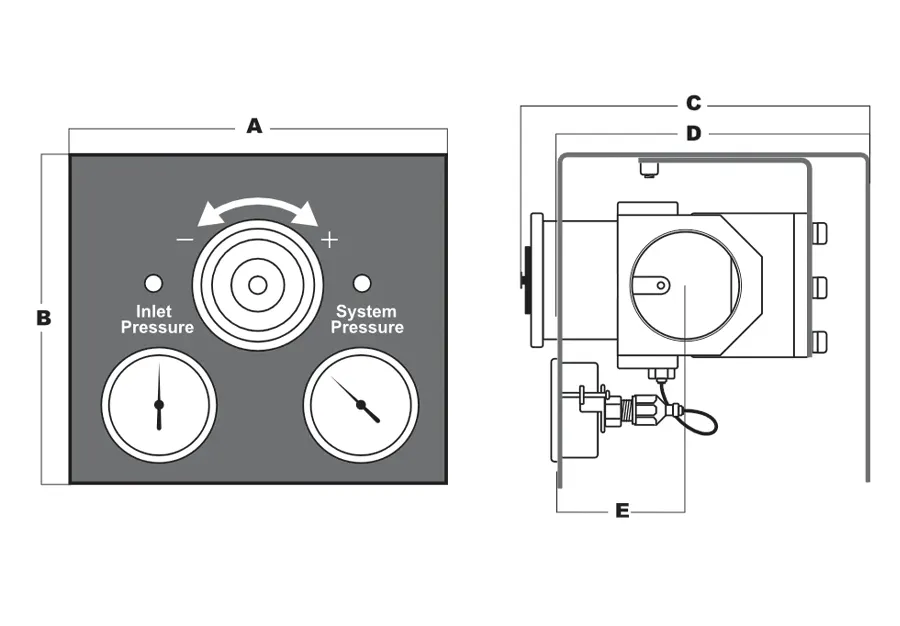

| Code | USA Ref | 3D Drawings | Inlet Size | Max Flow | Max Inlet Pressure | Control Range | Temp. Range | Sensitivity | Repeatability | A | B | C | D | E | Weight | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF 01 LR | PF 01 LR | Request access | 1" | 200 scfm | 300 psig | 0-160 psig | -4° F + 176° F | 0,2% of full span | ±0.5% of full span | 8.11" | 7.28" | 8.57" | 7.36" | 2.21" | 10.45 lbs | 1 | |
| PF 02 LR | PF 02 LR | Request access | 2" | 1000 scfm | 300 psig | 0-160 psig | -4° F + 176° F | 0,2% of full span | ±0.5% of full span | 8.11" | 7.28" | 8.57" | 7.36" | 2.78" | 14.65 lbs | 1 |
