Filter

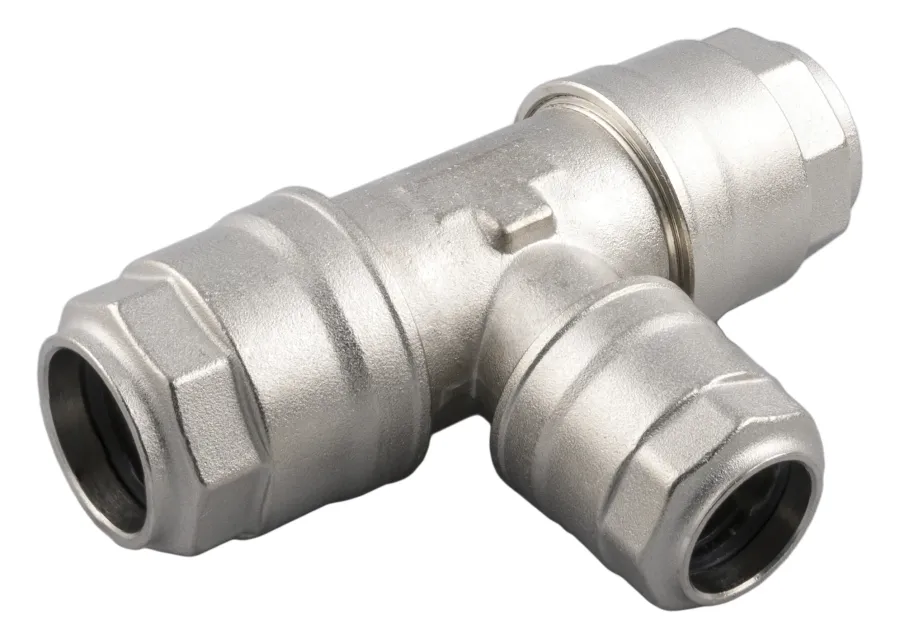

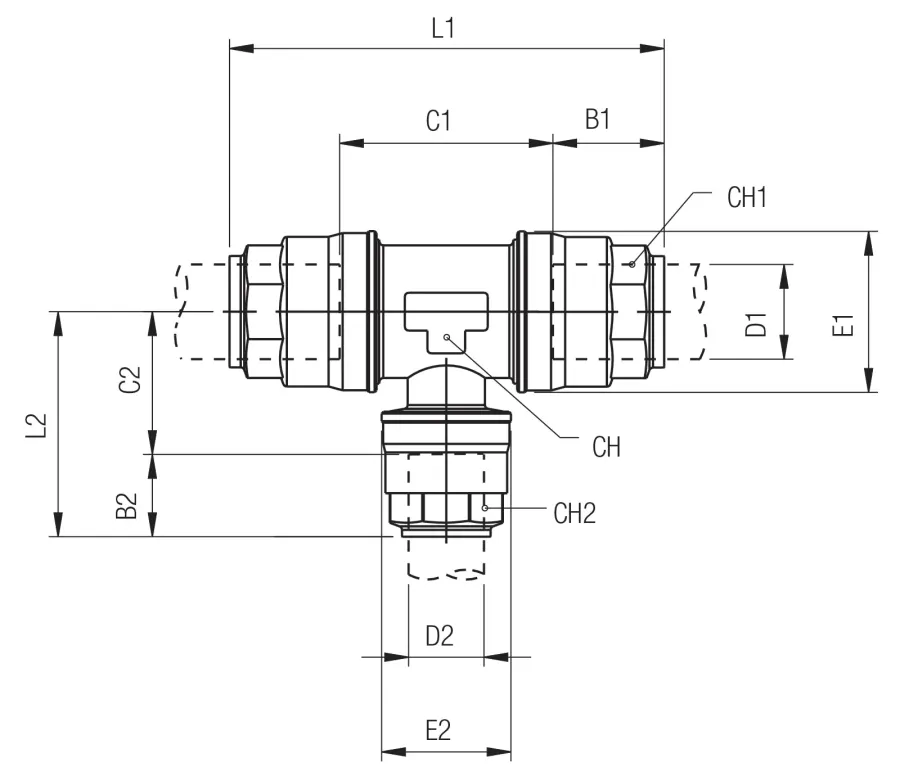

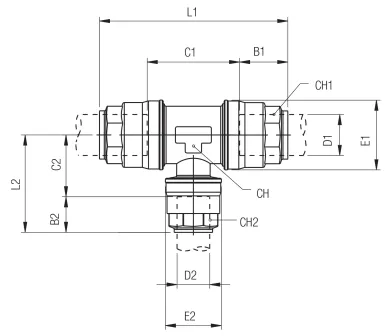

| Code | USA Ref | 3D Drawings | D1 | D2 | B1 | B2 | C1 | C2 | E1 | E2 | L1 | L2 | CH | CH1 | CH2 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90230 00 001 | 90230-20-20 | Request access | 20 | 20 | 1.240 (31.5) | 1.240 (31.5) | 1.358 (34.5) | 0.886 (22,5) | 1.358 (34.5) | 1.358 (34.5) | 3.858 (98) | 2.145 (54,5) | 0.827 (21) | 1.181 (30) | 1.181 (30) | 3 | ||
| 90259 00 002 | 90259-25-20 | Request access | 25 | 20 | 1.811 (46) | 1.240 (31.5) | 2.146 (54.5) | 1.240 (31.5) | 1.673 (42.5) | 1.358 (34.5) | 5.768 (146.5) | 2.480 (63) | 1.772 (45) | 1.772 (45) | 1.181 (30) | 2 | ||
| 90259 00 003 | 90259-32-20 | Request access | 32 | 20 | 1.811 (46) | 1.496 (38) | 2.047 (52) | 1.358 (34.5) | 2.047 (52) | 1.358 (34.5) | 5.768 (146.5) | 2.756 (70) | 1.772 (45) | 1.772 (45) | 1.378 (35) | 2 | ||
| 90259 00 004 | 90259-40-20 | Request access | 40 | 20 | 2.067 (52.5) | 1.240 (31.5) | 2.362 (60) | 1.358 (34.5) | 2.480 (63) | 1.358 (34.5) | 6.516 (165.5) | 2.598 (66) | 2.165 (55) | 2.165 (55) | 1.181 (30) | 2 | ||
| 90259 00 005 | 90259-50-20 | Request access | 50 | 20 | 2.067 (52.5) | 1.496 (38) | 2.362 (60) | 1.358 (34.5) | 2.874 (73) | 1.358 (34.5) | 6.516 (165.5) | 2.874 (73) | 2.165 (55) | 2.165 (55) | 1.378 (35) | 2 | ||
| 90259 00 006 | 90259-63-20 | Request access | 63 | 20 | 2.323 (59) | 1.240 (31.5) | 3.386 (86) | 1.949 (49.5) | 3.622 (92) | 1.358 (34.5) | 8.051 (204.5) | 3.189 (81) | 3.150 (80) | 2.756 (70) | 1.181 (30) | 1 | ||
| 90259 00 005 A | 90259A-50-20 | Request access | 50 | 20 | 2.303 (58.5) | 1.299 (33) | 4.134 (105) | 2.244 (57) | 3.307 (84) | 1.575 (40) | 8.740 (222) | 3.543 (90) | 2.717 (69) | 2.835 (72) | 1.181 (30) | Aluminium | 2 | |
| 90259 00 006 A | 90259A-63-20 | Request access | 63 | 20 | 2.264 (57.5) | 1.299 (33) | 3.445 (87.5) | 2.539 (64.5) | 3.701 (94) | 1.575 (40) | 8.091 (205.5) | 3.819 (97) | 3.150 (80) | 2.953 (75) | 1.181 (30) | Aluminium | 2 |
