90237-80-110-168

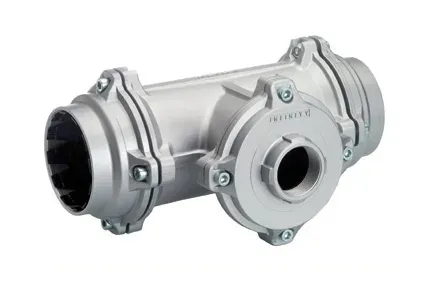

FEMALE OUTLET REDUCING TEE - NPTF

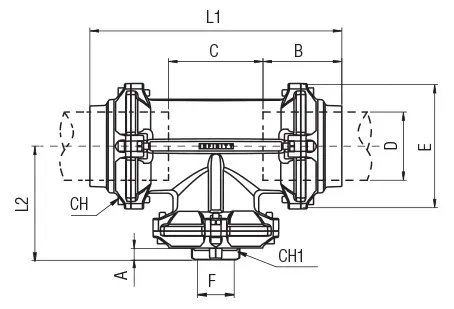

| Code | USA Ref | 3D Drawings | D | F | A | B | C | E | L1 | L2 | CH | CH1 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90237 00 009 | 90237-80-12 | Request access | 80 | 3/4 | 0.571 (14.5) | 3.583 (91) | 4.291 (109) | 5.709 (145) | 11.476 (291.5) | 5.433 (138) | 0.236 (6) | 1.654 (42) | 1 | |
| 90237 00 010 | 90237-80-16 | Request access | 80 | 1" | 0.669 (17) | 3.583 (91) | 4.291 (109) | 5.709 (145) | 11.476 (291.5) | 5.433 (138) | 0.236 (6) | 1.929 (49) | 1 | |
| 90237 00 011 | 90237-80-24 | Request access | 80 | 1" 1/2 | 0.787 (20) | 3.583 (91) | 4.291 (109) | 5.709 (145) | 11.476 (291.5) | 5.433 (138) | 0.236 (6) | 2.598 (66) | 1 | |
| 90237 00 012 | 90237-80-32 | Request access | 80 | 2" | 0.866 (22) | 3.583 (91) | 4.291 (109) | 5.709 (145) | 11.476 (291.5) | 5.433 (138) | 0.236 (6) | 3.150 (80) | 1 | |
| 90237 00 013 | 90237-110-12 | Request access | 110 | 3/4 | 0.571 (14.5) | 4.941 (125.5) | 5.925 (150.5) | 7.874 (200) | 15.787 (401) | 7.087 (180) | 0.315 (8) | 1.654 (42) | 1 | |
| 90237 00 014 | 90237-110-16 | Request access | 110 | 1" | 0.669 (17) | 4.941 (125.5) | 5.925 (150.5) | 7.874 (200) | 15.787 (401) | 7.087 (180) | 0.315 (8) | 1.929 (49) | 1 | |
| 90237 00 015 | 90237-110-24 | Request access | 110 | 1" 1/2 | 0.787 (20) | 4.941 (125.5) | 5.925 (150.5) | 7.874 (200) | 15.787 (401) | 7.087 (180) | 0.315 (8) | 2.598 (66) | 1 | |
| 90237 00 016 | 90237-110-32 | Request access | 110 | 2" | 0.866 (22) | 4.941 (125.5) | 5.925 (150.5) | 7.874 (200) | 15.787 (401) | 7.087 (180) | 0.315 (8) | 3.150 (80) | 1 | |
| 90237 00 026 | 90237-110-48 | Request access | 110 | 3" | 1.141 (29) | 4.941 (125.5) | 5.925 (150.5) | 7.874 (200) | 15.787 (401) | 7.381 (187.5) | 0.315 (8) | 4.724 (120) | 1 | |
| 90237 00 021 | 90237-168-12 | Request access | 168 | 3/4 | 0.571 (14.5) | 7.638 (194) | 9.252 (235) | 12.047 (306) | 24.528 (623) | 10.827 (275) | 0.394 (10) | 1.634 (41.5) | 1 | |
| 90237 00 022 | 90237-168-16 | Request access | 168 | 1" | 0.669 (17) | 7.638 (194) | 9.252 (235) | 12.047 (306) | 24.528 (623) | 10.906 (277) | 0.394 (10) | 1.890 (48) | 1 | |
| 90237 00 023 | 90237-168-32 | Request access | 168 | 2" | 0.925 (23,5) | 7.638 (194) | 9.252 (235) | 12.047 (306) | 24.528 (623) | 10.906 (277) | 0.394 (10) | 3.071 (78) | 1 | |
| 90237 00 024 | 90237-168-48 | Request access | 168 | 3" | 1.141 (29) | 7.638 (194) | 9.252 (235) | 12.047 (306) | 24.528 (623) | 11.141 (283) | 0.394 (10) | 4.724 (120) | 1 | |
| 90237 00 025 | 90237-168-64 | Request access | 168 | 4" | 1.062 (27) | 7.638 (194) | 9.252 (235) | 12.047 (306) | 24.528 (623) | 11.259 (286) | 0.394 (10) | 4.881 (124) | 1 |
