90130-80-110-168
ELBOW CONNECTOR

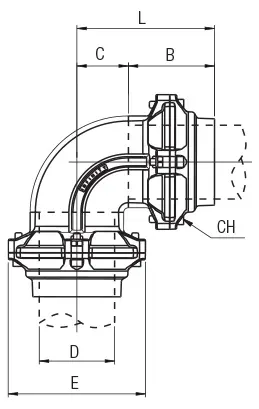

| Code | USA Ref | 3D Drawings | D | B | C | E | L | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|
| 90130 00 007 | 90130-80 | Request access | 80 | 3.583 (91) | 2.146 (54.5) | 5.709 (145) | 5.748 (146) | 0.236 (6) | 2 | |
| 90130 00 008 | 90130-110 | Request access | 110 | 4.941 (125.5) | 2.953 (75) | 7.874 (200) | 7.894 (200.5) | 0.315 (8) | 1 | |
| 90130 00 009 | 90130-168 | Request access | 168 | 7.638 (194) | 3.209 (81.5) | 12.047 (306) | 15.472 (393) | 0.394 (10) | 1 |
