90242

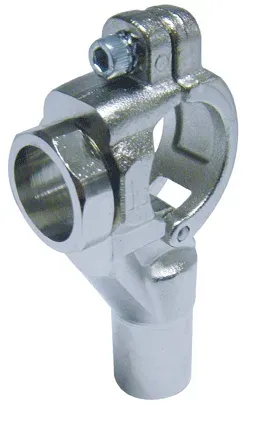

DRILLING JIG

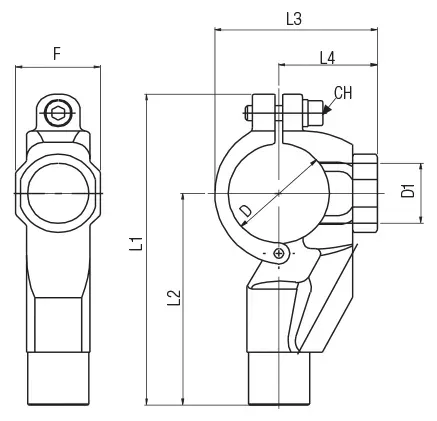

| Code | USA Ref | 3D Drawings | D | D1 | F | L1 | L2 | L3 | L4 | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90242 00 001 | 90242-32 | Request access | 32 | 0.965 (24.5) | 1.339 (34) | 4.528 (115) | 3.110 (79) | 2.205 (56) | 1.378 (35) | 0.197 (5) | 1 | |
| 90242 00 002 | 90242-40 | Request access | 40 | 0.965 (24.5) | 1.339 (34) | 5.000 (127) | 3.406 (86.5) | 2.559 (65) | 1.555 (39.5) | 0.197 (5) | 1 | |
| 90242 00 003 | 90242-50 | Request access | 50 | 1.260 (32) | 1.673 (42.5) | 5.748 (146) | 3.819 (97) | 3.110 (79) | 1.870 (47.5) | 0.236 (6) | 1 | |
| 90242 00 004 | 90242-63 | Request access | 63 | 1.260 (32) | 1.673 (42.5) | 6.437 (163.5) | 4.272 (108.5) | 3.661 (93) | 2.165 (55) | 0.236 (6) | 1 |
