Filter

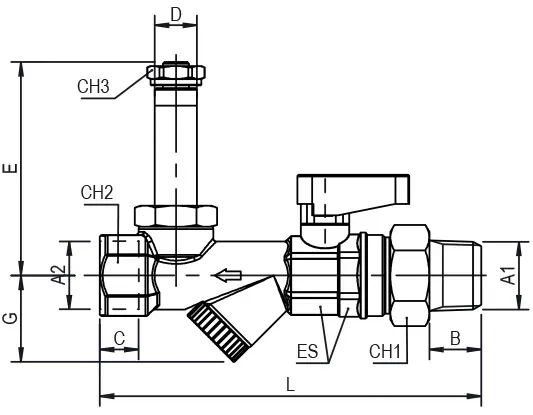

| Code | USA Ref | 3D Drawings | A1(NPTF) | A2(NPTF) | B | C | D | CH1 | CH2 | CH3 | L | E | ES | G | Cable | Ø mm | Viscosity (Max cSt) | Kv m3/h EXT | Power DC 8 W | Power DC 14 W | Power DC 22 W | Power AC 14 VA | Power AC 21 VA | Power AC 31 VA | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 909764 D2 4 2 | 90976-06-08 | Request access | 3/8 | 1/2 | 0.453 (11.5) | 0.472 (12) | 0.512 (13) | 1.063 (27) | 0.984 (25) | 0.630 (16) | 4.469 (113.5) | 2.579 (65.5) | 0.866 (22) - 0.906 (23) | 1.043 (26.5) | 2 MT /6.5ft. | 3 | 53 | 0.21 | ΔP bar 0-11.4 | ΔP bar 0-15.1 | ΔP bar 0-20 | ΔP bar 0-10.6 | ΔP bar 0-17.1 | ΔP bar 0-24.1 | 1 | |
| 909765 D2 4 2 | 90976-08-08 | Request access | 1/2 | 1/2 | 0.630 (16) | 0.472 (12) | 0.512 (13) | 1.063 (27) | 0.984 (25) | 0.630 (16) | 4.469 (113.5) | 2.579 (65.5) | 0.866 (22) - 0.906 (23) | 1.043 (26.5) | 2 MT /6.5ft. | 3 | 53 | 0.21 | ΔP bar 0-11.4 | ΔP bar 0-15.1 | ΔP bar 0-20 | ΔP bar 0-10.6 | ΔP bar 0-17.1 | ΔP bar 0-24.1 | 1 |
