90249

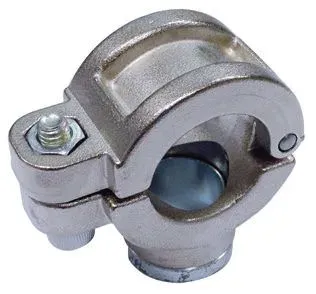

COMPACT DRILLING JIG

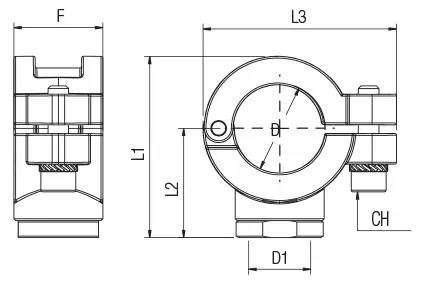

| Code | USA Ref | 3D Drawings | D | D1 | F | L1 | L2 | L3 | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90249 00 002 | 90249-25 | Request access | 25 | 0.701 (17.8) | 1.004 (25.5) | 2.087 (53) | 1.260 (32) | 2.185 (55.5) | 0.197 (5) | 1 | |
| 90249 00 003 | 90249-32 | Request access | 32 | 0.965 (24.5) | 1.339 (34) | 2.205 (56) | 1.378 (35) | 2.421 (61.5) | 0.197 (5) | 1 | |
| 90249 00 004 | 90249-40 | Request access | 40 | 0.965 (24.5) | 1.339 (34) | 2.559 (65) | 1.575 (40) | 2.756 (70) | 0.197 (5) | 1 | |
| 90249 00 005 | 90249-50 | Request access | 50 | 1.260 (32) | 1.673 (42.5) | 3.110 (79) | 1.870 (47.5) | 3.327 (84.5) | 0.236 (6) | 1 | |
| 90249 00 006 | 90249-63 | Request access | 63 | 1.260 (32) | 1.673 (42.5) | 3.661 (93) | 2.165 (55) | 3.819 (97) | 0.236 (6) | 1 |
