Filter
90000AZ-4MT

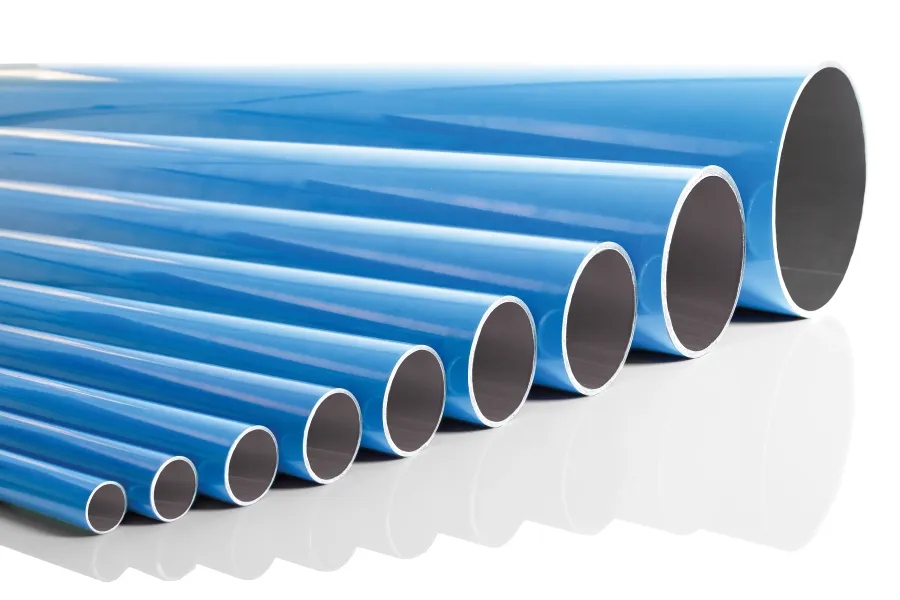

CALIBRATED ALUMINIUM TUBES LIGHT BLUE COLOUR - 4 MT
| Code | USA Ref | 3D Drawings | Ø Ext. | Wall Thickness | Max Pressure | Weight | Lenght | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 90000 00 11 Y9 AZ | 90000LB-4-20 | Request access | 20 mm | 0.059 (1.5) | 16 Bar | 235 gr/m | 4 m (0.157) | 8 | |
| 90000 00 11 J4 AZ | 90000LB-4-25 | Request access | 25 mm | 0.059 (1.5) | 16 Bar | 298 gr/m | 4 m (0.157) | 8 | |
| 90000 00 11 J9 AZ | 90000LB-4-32 | Request access | 32 mm | 0.059 (1.5 ) | 16 Bar | 387 gr/m | 4 m (0.157) | 9 | |
| 90000 00 11 K4 AZ | 90000LB-4-40 | Request access | 40 mm | 0.059 (1.5) | 16 Bar | 490 gr/m | 4 m (0.157) | 9 | |
| 90000 00 11 W0 AZ | 90000LB-4-50 | Request access | 50 mm | 0.079 (2 ) | 16 Bar | 814 gr/m | 4 m (0.157) | 4 | |
| 90000 00 11 W3 AZ | 90000LB-4-63 | Request access | 63 mm | 0.079 (2 ) | 16 Bar | 1034 gr/m | 4 m (0.157) | 4 |
