90000VE-6MT

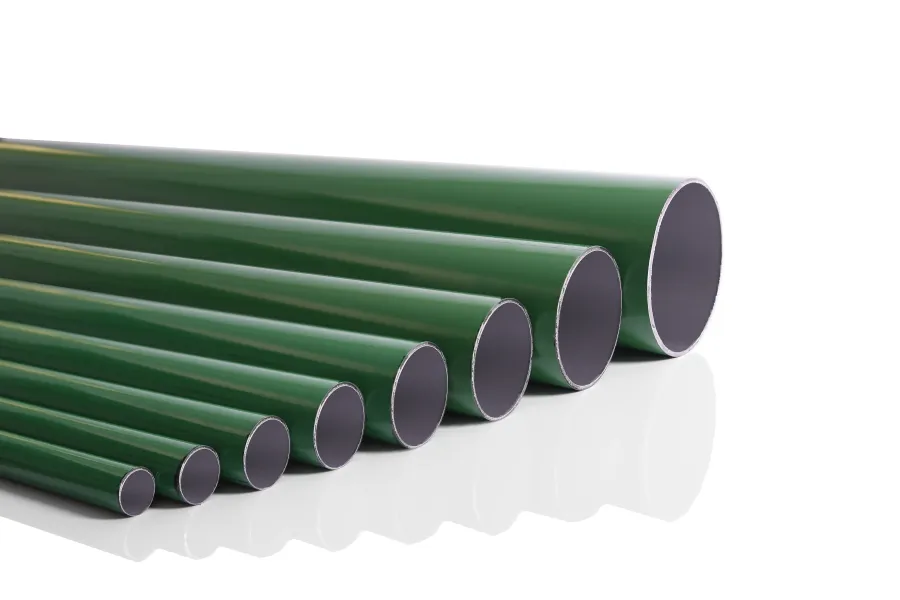

CALIBRATED ALUMINIUM TUBES GREEN COLOUR - 6 MT
| Code | USA Ref | 3D Drawings | Ø Ext. | Wall Thickness | Max Pressure | Weight | Lenght | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 90000 6 020 VE | 90000GN-6-20 | Request access | 20 mm | 0.059 (1.5 ) | 16 Bar | 235 gr/m | 5,95 m (0.234) | 8 | |
| 90000 6 025 VE | 90000GN-6-25 | Request access | 25 mm | 0.059 (1.5 ) | 16 Bar | 298 gr/m | 5,95 m (0.234) | 8 | |
| 90000 6 032 VE | 90000GN-6-32 | Request access | 32 mm | 0.059 (1.5 ) | 16 Bar | 387 gr/m | 5,95 m (0.234) | 9 | |
| 90000 6 040 VE | 90000GN-6-40 | Request access | 40 mm | 0.059 (1.5 ) | 16 Bar | 490 gr/m | 5,95 m (0.234) | 4 | |
| 90000 6 050 VE | 90000GN-6-50 | Request access | 50 mm | 0.079 (2) | 16 Bar | 814 gr/m | 5,95 m (0.234) | 4 | |
| 90000 6 063 VE | 90000GN-6-63 | Request access | 63 mm | 0.079 (2) | 16 Bar | 1034 gr/m | 5,95 m (0.234) | 2 |
