90828

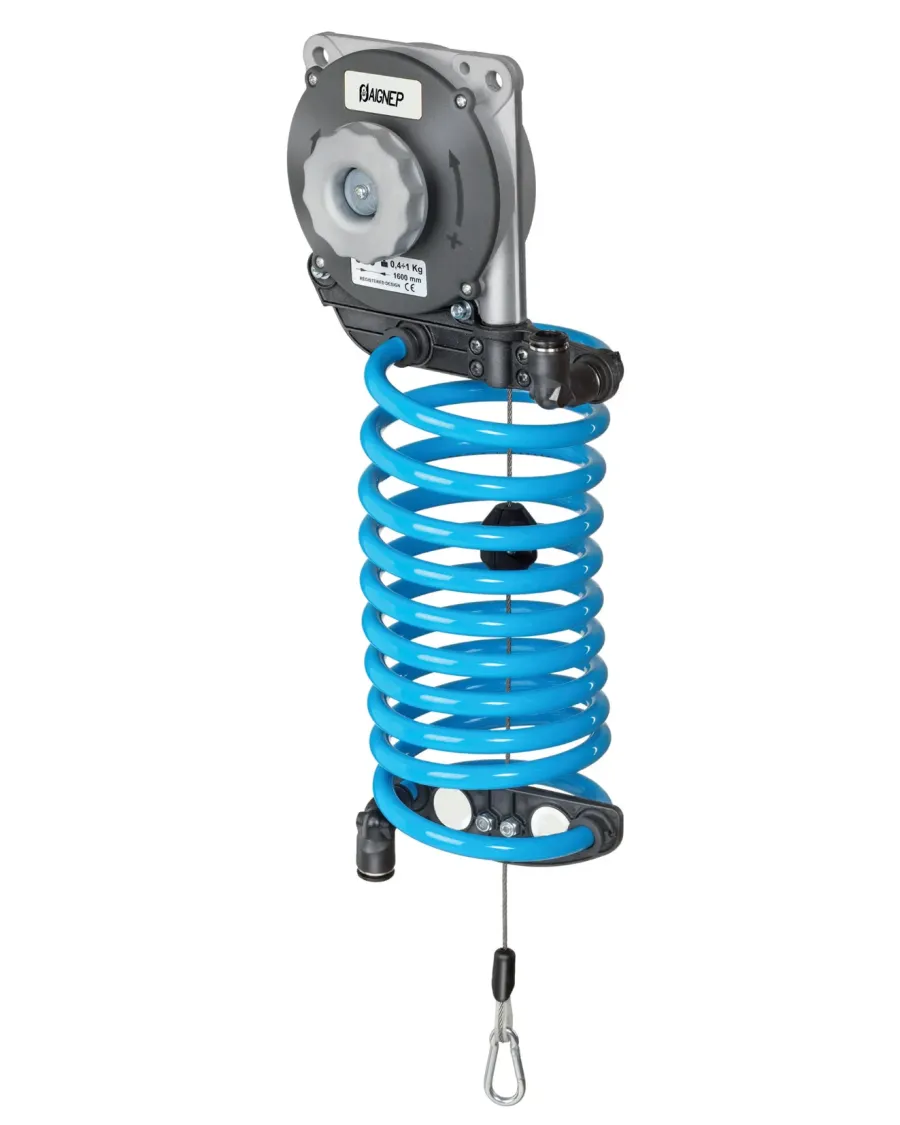

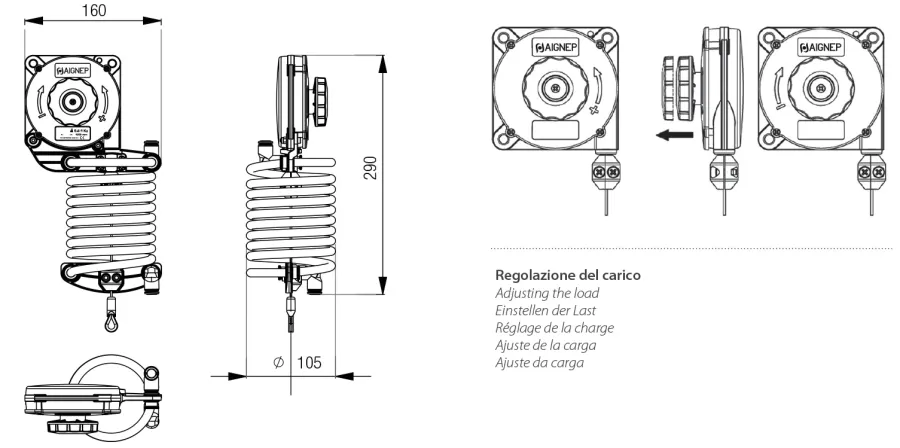

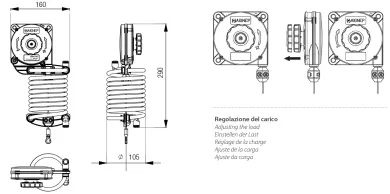

BALANCER WITH COILED TUBING
| Code | USA Ref | 3D Drawings | Capacity Kg | Stainless Steel Rope | Stroke Rope | Tube PA12 Int. | Tube PA12 Ext. | Max Press. | Temperature | Inlet - Outlet Fitting | Cut Down Size Tube | Air | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90828 000 01 | Request access | 0,4÷1 | Ø 0,078 INCH (Ø 2mm) | 5,24 ft - 1600mm | Ø 8mm (5/16") | Ø 10mm | 10bar (1Mpa) | -20/+80° | Push-in Fittings Ø 10 | 1 mt | YES | 1 | ||
| 90828 000 02 | Request access | 1÷2 | Ø 0,078 INCH (Ø 2mm) | 5,24 ft - 1600mm | Ø 8mm (5/16") | Ø 10mm | 10bar (1Mpa) | -20/+80° | Push-in Fittings Ø 10 | 1 mt | YES | 1 | ||
| 90828 000 03 | Request access | 2÷3 | Ø 0,078 INCH (Ø 2mm) | 5,24 ft - 1600mm | Ø 8mm (5/16") | Ø 10mm | 10bar (1Mpa) | -20/+80° | Push-in Fittings Ø 10 | 1 mt | YES | 1 |
