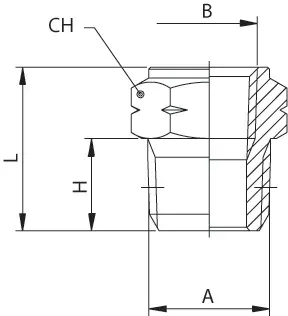

| Code | USA Ref | 3D Drawings | A (NPTF) | B | H | L | CH | Pack | Thread | |
|---|---|---|---|---|---|---|---|---|---|---|
| 82280 00 01 0K NB | 82280N-02-32 | Request access | 1/8 | 10/32 | 0.335 (8.5) | 0.571 (14.5) | 0.472 (12) | 10 | NPTF - UNF | |
| 82280 00 01 5W NB | 82280N-04-02 | Request access | 1/4 | 1/8 NPTF | 0.512 (13) | 0.748 (19) | 0.551 (14) | 10 | NPTF - NPTF | |
| 82280 00 01 9W NB | 82280N-06-02 | Request access | 3/8 | 1/8 NPTF | 0.512 (13) | 0.768 (19.5) | 0.748 (19) | 10 | NPTF - NPTF | |
| 82280 00 01 AA NB | 82280N-06-04 | Request access | 3/8 | 1/4 NPTF | 0.512 (13) | 0.906 (23) | 0.748 (19) | 10 | NPTF - NPTF | |
| 82280 00 01 AE NB | 82280N-08-04 | Request access | 1/2 | 1/4 NPTF | 0.669 (17) | 0.965 (24.5) | 0.866 (22) | 10 | NPTF - NPTF | |
| 82280 00 01 AF NB | 82280N-08-06 | Request access | 1/2 | 3/8 NPTF | 0.669 (17) | 0.571 (24.5) | 0.472 (22) | 10 | NPTF - NPTF |
