Push-In Fittings>

MIST FIT - INCH Series - Low Pressure

>84000
84000

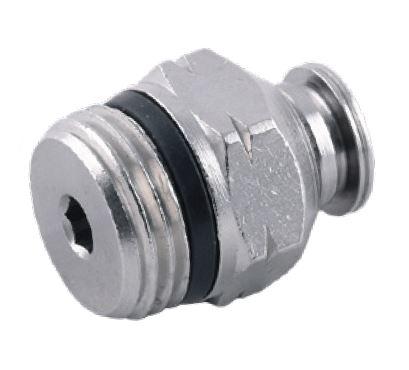

STRAIGHT MALE ADAPTOR - SWIFTFIT - LOW PRESSURE

Technical characteristics / catalogAignep Scan Labels Certifications
STRAIGHT MALE ADAPTOR - SWIFTFIT - LOW PRESSURE
STRAIGHT MALE ADAPTOR - SWIFTFIT - LOW PRESSURE
Tipo connessione: Tube - Fix Thread
Clear all fields
Code USA REF  Draw Tube A B L CH1 CH2 Bag
84000 00 006     84000-04-04 Download 1/4 1/4 0.276 (7) 0.827 (21) 0.551 (14) 0.157 (4) 25
84000 00 007     84000-04-06 Download 1/4 3/8 0.295 (7.5) 0.925 (23.5) 0.669 (17) 0.157 (4) 25
84000 00 012     84000-06-04 Download 3/8 1/4 0.276 (7) 1.102 (28) 0.669 (17) 0.276 (7) 25
84000 00 013     84000-06-06 Download 3/8 3/8 0.295 (7.5) 1.024 (26) 0.669 (17) 0.276 (7) 25
Code Draw Tube A B L CH1 CH2 Bag
84000 00 006 Download 1/4 1/4 0.276 (7) 0.827 (21) 0.551 (14) 0.157 (4) 25
84000 00 007 Download 1/4 3/8 0.295 (7.5) 0.925 (23.5) 0.669 (17) 0.157 (4) 25
84000 00 012 Download 3/8 1/4 0.276 (7) 1.102 (28) 0.669 (17) 0.276 (7) 25
84000 00 013 Download 3/8 3/8 0.295 (7.5) 1.024 (26) 0.669 (17) 0.276 (7) 25
