RHV

RODLESS CYLINDER WITH “V” EDGE SLIDE SYSTEM

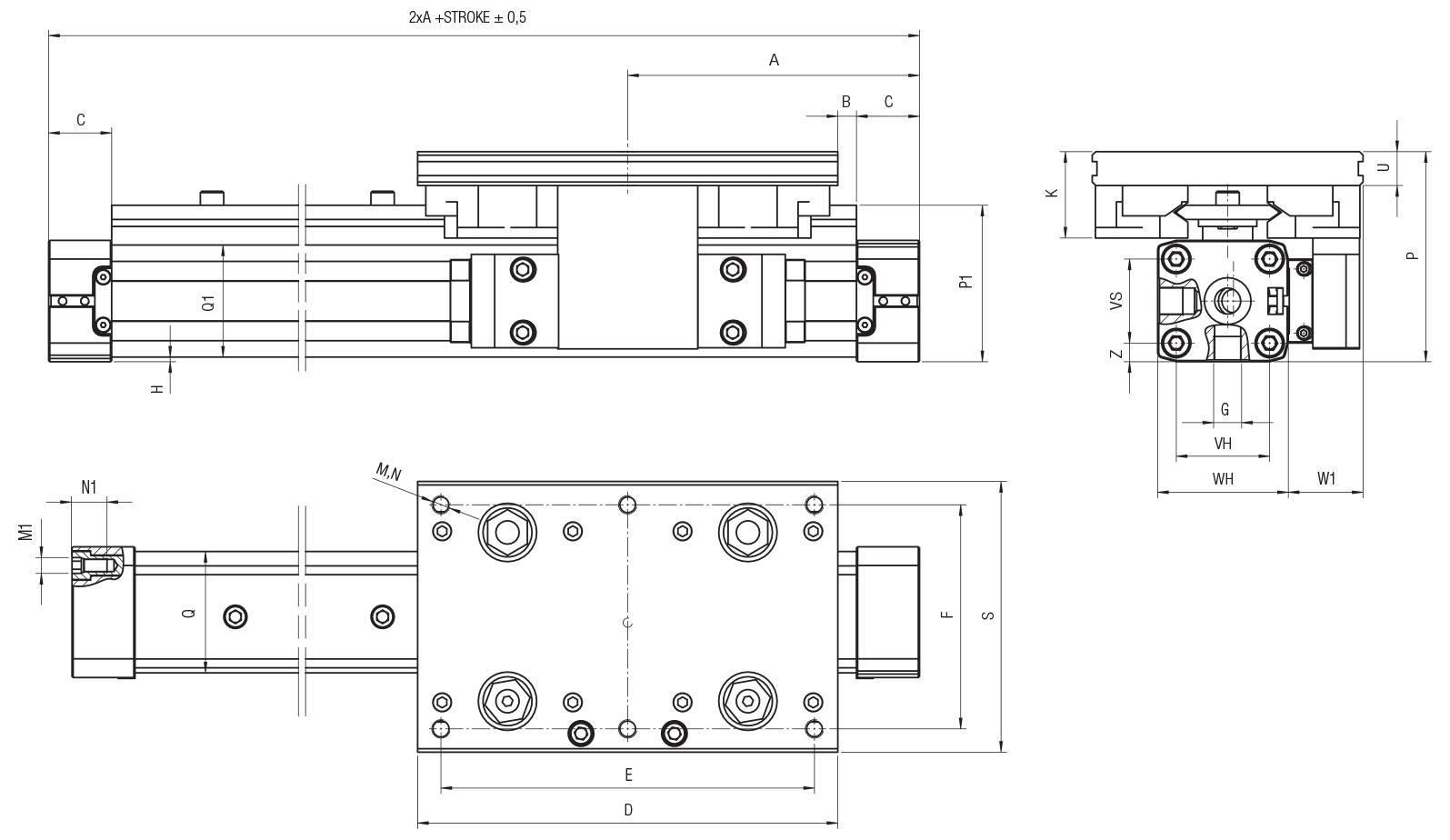

Code	USA REF	Ø mm	Stroke (mm)	A mm	B mm	C mm	D mm	E mm	F mm	G	H mm	K mm	M	N mm	M1	N1 mm	P mm	P1 mm	QXQ1 (mm)	S mm	U mm	VH mm	VS mm	WS mm	W1 mm	Z mm
RHV 025	RHV0250000	25	From 100 to 5700	100	9.5	23	135	120	65	1/8	2	29,5	M6	11	M5	10	74	56.8	36 X 36	80	11	27	27	40	22	6,5
RHV 032	RHV0320000	32	From 100 to 5700	125	8	27	180	160	96	1/4	2	37	M8	14,5	M6	14	90	64.5	52 X 48	116	14,5	40	36	56	32	8
RHV 040	RHV0400000	40	From 100 to 5700	150	0	30	240	216	115	1/4	6,75	39	M8	16,5	M6	17	108,5	84	58,5 X 59	135	16,5	54	54	69	34,5	9
RHV 050	RHV0500000	50	From 100 to 5700	175	22	33	240	216	115	1/4	1	39	M8	16,5	M6	18	122	97.5	77 X 78	135	16,5	70	70	80	31	5

Code	Ø mm	Stroke (mm)	A mm	B mm	C mm	D mm	E mm	F mm	G	H mm	K mm	M	N mm	M1	N1 mm	P mm	P1 mm	QXQ1 (mm)	S mm	U mm	VH mm	VS mm	WS mm	W1 mm	Z mm
RHV 025	25	From 100 to 5700	100	9.5	23	135	120	65	1/8	2	29,5	M6	11	M5	10	74	56.8	36 X 36	80	11	27	27	40	22	6,5
RHV 032	32	From 100 to 5700	125	8	27	180	160	96	1/4	2	37	M8	14,5	M6	14	90	64.5	52 X 48	116	14,5	40	36	56	32	8
RHV 040	40	From 100 to 5700	150	0	30	240	216	115	1/4	6,75	39	M8	16,5	M6	17	108,5	84	58,5 X 59	135	16,5	54	54	69	34,5	9
RHV 050	50	From 100 to 5700	175	22	33	240	216	115	1/4	1	39	M8	16,5	M6	18	122	97.5	77 X 78	135	16,5	70	70	80	31	5

R Series
