Pneumatic Actuators>

L Series ISO 15552

>VCH
VCH

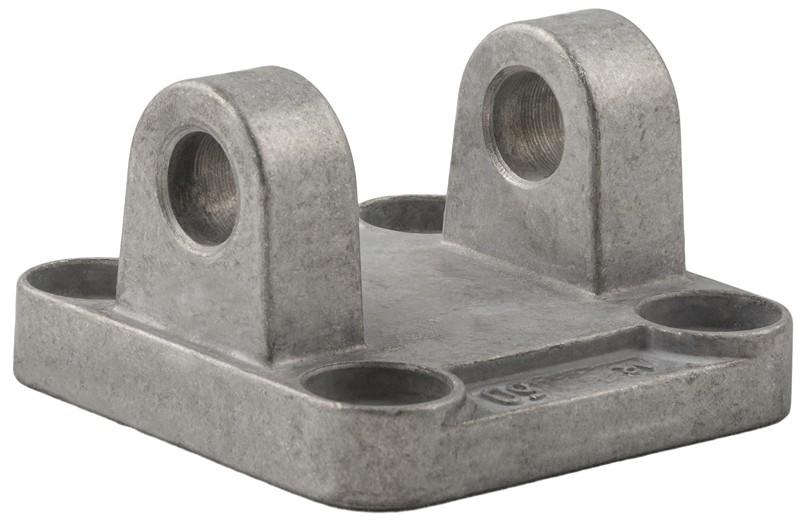

CLEVIS BRACKET

Technical characteristics / catalogAignep Scan Labels Certifications
CLEVIS BRACKET
CLEVIS BRACKET

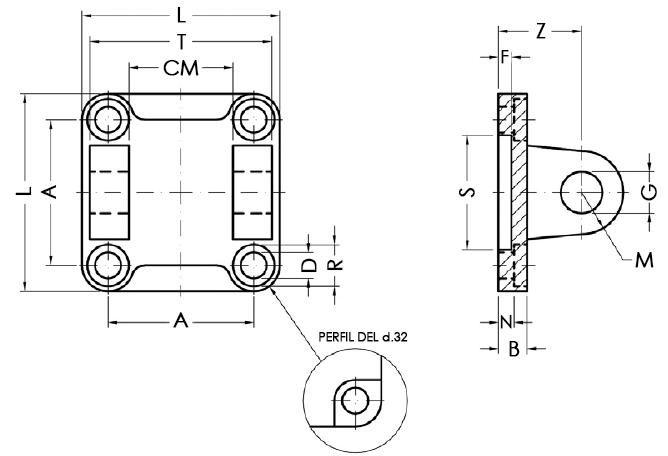

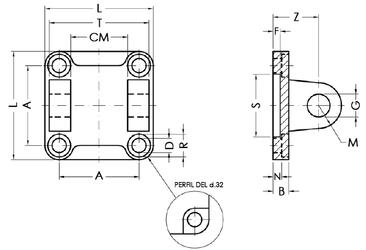

Code USA REF  Draw Ø A L D R N B S F Z G M CM T
VCH 032     VCH032 Download 1.260 (32) 1.280 (32.5) 1.772 (45) 0.260 (6.6) 0.433 (11) 0.217 (5.5) 0.354 (9) 1.181 (30) 0.197 (5) 0.866 (22) 0.394 (10) 0.394 (10) 1.024 (26) 1.772 (45)
VCH 040     VCH040 1.575 (40) 1.496 (38) 2.047 (52) 0.260 (6.6) 0.433 (11) 0.217 (5.5) 0.354 (9) 1.378 (35) 0.197 (5) 0.984 (25) 0.472 (12) 0.472 (12) 1.102 (28) 2.047 (52)
VCH 050     VCH050 1.969 (50) 1.831 (46.5) 2.559 (65) 0.354 (9) 0.591 (15) 0.256 (6.5) 0.433 (11) 1.575 (40) 0.197 (5) 1.063 (27) 0.472 (12) 0.472 (12) 1.260 (32) 2.362 (60)
VCH 063     VCH063 2.480 (63) 2.224 (56.5) 2.953 (75) 0.354 (9) 0.591 (15) 0.256 (6.5) 0.433 (11) 1.772 (45) 0.197 (5) 1.260 (32) 0.630 (16) 0.630 (16) 1.575 (40) 2.756 (70)
VCH 080     VCH080 3.150 (80) 2.835 (72) 3.740 (95) 0.433 (11) 0.709 (18) 0.394 (10) 0.551 (14) 1.772 (45) 0.197 (5) 1.417 (36) 0.630 (16) 0.630 (16) 1.969 (50) 3.543 (90)
VCH 100     VCH100 3.937 (100) 3.504 (89) 4.528 (115) 0.433 (11) 0.709 (18) 0.394 (10) 0.551 (14) 2.165 (55) 0.197 (5) 1.614 (41) 0.787 (20) 0.787 (20) 2.362 (60) 4.331 (110)
VCH 125     VCH125 4.921 (125) 4.331 (110) 5.512 (140) 0.551 (14) 0.787 (20) 0.394 (10) 0.787 (20) 2.362 (60) 0.276 (7) 1.969 (50) 0.984 (25) 0.984 (25) 2.756 (70) 5.118 (130)
Code Draw Ø A L D R N B S F Z G M CM T
VCH 032 Download 1.260 (32) 1.280 (32.5) 1.772 (45) 0.260 (6.6) 0.433 (11) 0.217 (5.5) 0.354 (9) 1.181 (30) 0.197 (5) 0.866 (22) 0.394 (10) 0.394 (10) 1.024 (26) 1.772 (45)
VCH 040 1.575 (40) 1.496 (38) 2.047 (52) 0.260 (6.6) 0.433 (11) 0.217 (5.5) 0.354 (9) 1.378 (35) 0.197 (5) 0.984 (25) 0.472 (12) 0.472 (12) 1.102 (28) 2.047 (52)
VCH 050 1.969 (50) 1.831 (46.5) 2.559 (65) 0.354 (9) 0.591 (15) 0.256 (6.5) 0.433 (11) 1.575 (40) 0.197 (5) 1.063 (27) 0.472 (12) 0.472 (12) 1.260 (32) 2.362 (60)
VCH 063 2.480 (63) 2.224 (56.5) 2.953 (75) 0.354 (9) 0.591 (15) 0.256 (6.5) 0.433 (11) 1.772 (45) 0.197 (5) 1.260 (32) 0.630 (16) 0.630 (16) 1.575 (40) 2.756 (70)
VCH 080 3.150 (80) 2.835 (72) 3.740 (95) 0.433 (11) 0.709 (18) 0.394 (10) 0.551 (14) 1.772 (45) 0.197 (5) 1.417 (36) 0.630 (16) 0.630 (16) 1.969 (50) 3.543 (90)
VCH 100 3.937 (100) 3.504 (89) 4.528 (115) 0.433 (11) 0.709 (18) 0.394 (10) 0.551 (14) 2.165 (55) 0.197 (5) 1.614 (41) 0.787 (20) 0.787 (20) 2.362 (60) 4.331 (110)
VCH 125 4.921 (125) 4.331 (110) 5.512 (140) 0.551 (14) 0.787 (20) 0.394 (10) 0.787 (20) 2.362 (60) 0.276 (7) 1.969 (50) 0.984 (25) 0.984 (25) 2.756 (70) 5.118 (130)
