Pneumatic Actuators>

Accessories for Cylinders Series

>VCM
VCM

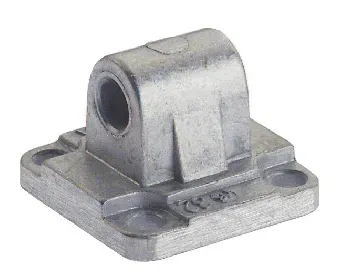

MALE CLEVIS WITH SELF-LUBRICATING BUSHINGS - ALUMINIUM

Technical characteristics / catalogAignep Scan Labels Certifications
MALE CLEVIS WITH SELF-LUBRICATING BUSHINGS - ALUMINIUM
MALE CLEVIS WITH SELF-LUBRICATING BUSHINGS - ALUMINIUM

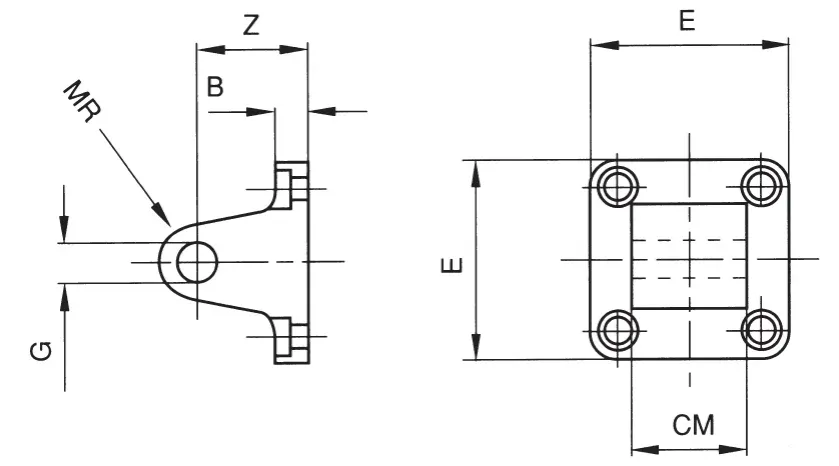

Code USA REF  Draw Ø mm B mm E mm G mm Z mm CM mm MR mm
VCM 032     VCM032 Download 32 9 45 10 22 26 10
VCM 040     VCM040 Download 40 9 52 12 25 28 12
VCM 050     VCM050 Download 50 11 65 12 27 32 12
VCM 063     VCM063 Download 63 11 75 16 32 40 16
VCM 080     VCM080 Download 80 14 95 16 36 50 16
VCM 100     VCM100 Download 100 14 115 20 41 60 20
VCM 125     VCM125 Download 125 20 140 25 50 70 25
VCM 160     VCM160 160 20 180 30 55 90 25
VCM 200     VCM200 200 25 220 30 60 90 25
VCM 250     VCM250 250 25 270 40 70 110 40
Code Draw Ø mm B mm E mm G mm Z mm CM mm MR mm
VCM 032 Download 32 9 45 10 22 26 10
VCM 040 Download 40 9 52 12 25 28 12
VCM 050 Download 50 11 65 12 27 32 12
VCM 063 Download 63 11 75 16 32 40 16
VCM 080 Download 80 14 95 16 36 50 16
VCM 100 Download 100 14 115 20 41 60 20
VCM 125 Download 125 20 140 25 50 70 25
VCM 160 160 20 180 30 55 90 25
VCM 200 200 25 220 30 60 90 25
VCM 250 250 25 270 40 70 110 40
