FUNCTIONAL Series

82660

SLIDE VALVE - FEMALE NPTF

Technical characteristics / catalog Aignep Scan Labels Certifications

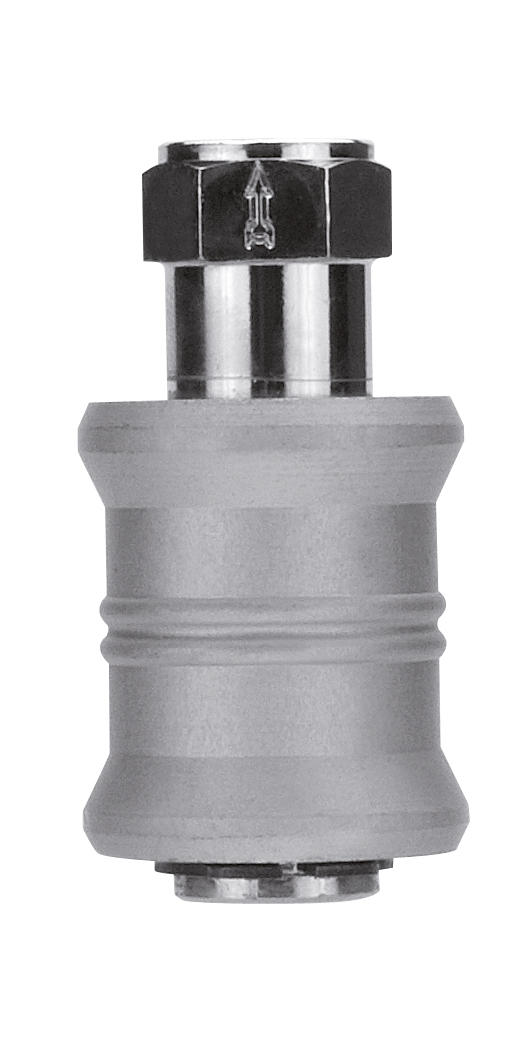

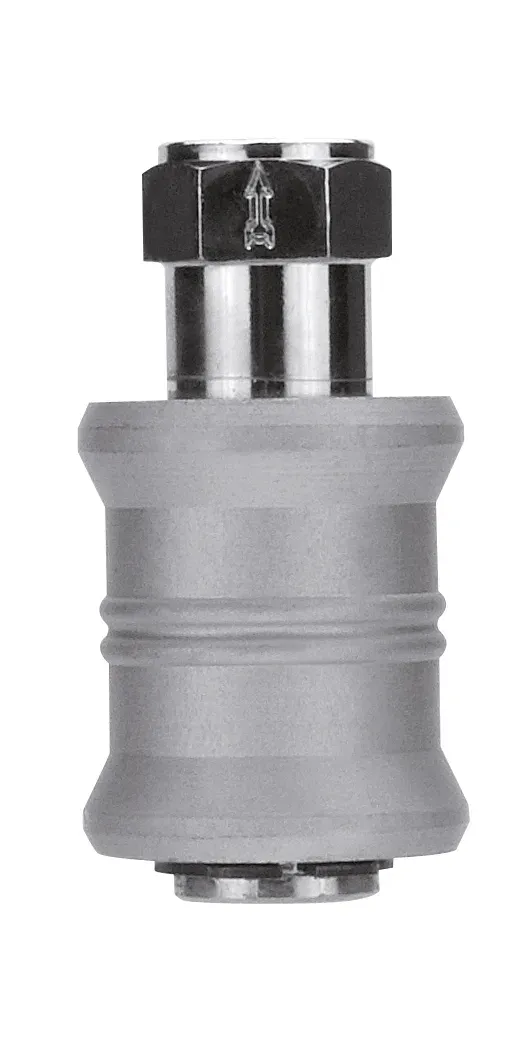

SLIDE VALVE - FEMALE NPTF

SLIDE VALVE - FEMALE NPTF

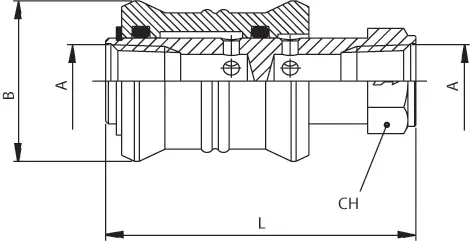

Code	USA REF			A NPTF	B	L	CH	Pack
82660 00 001	82660-02			1/8	0.984 (25)	1.890 (48)	0.551 (14)	10
82660 00 002	82660-04			1/4	1.181 (30)	2.283 (58)	0.669 (17)	10
82660 00 003	82660-06			3/8	1.378 (35)	2.756 (70)	0.866 (22)	10
82660 00 004	82660-08			1/2	1.575 (40)	3.150 (80)	1.024 (26)	10

Code	A NPTF	B	L	CH	Pack
82660 00 001	1/8	0.984 (25)	1.890 (48)	0.551 (14)	10
82660 00 002	1/4	1.181 (30)	2.283 (58)	0.669 (17)	10
82660 00 003	3/8	1.378 (35)	2.756 (70)	0.866 (22)	10
82660 00 004	1/2	1.575 (40)	3.150 (80)	1.024 (26)	10
