50907N

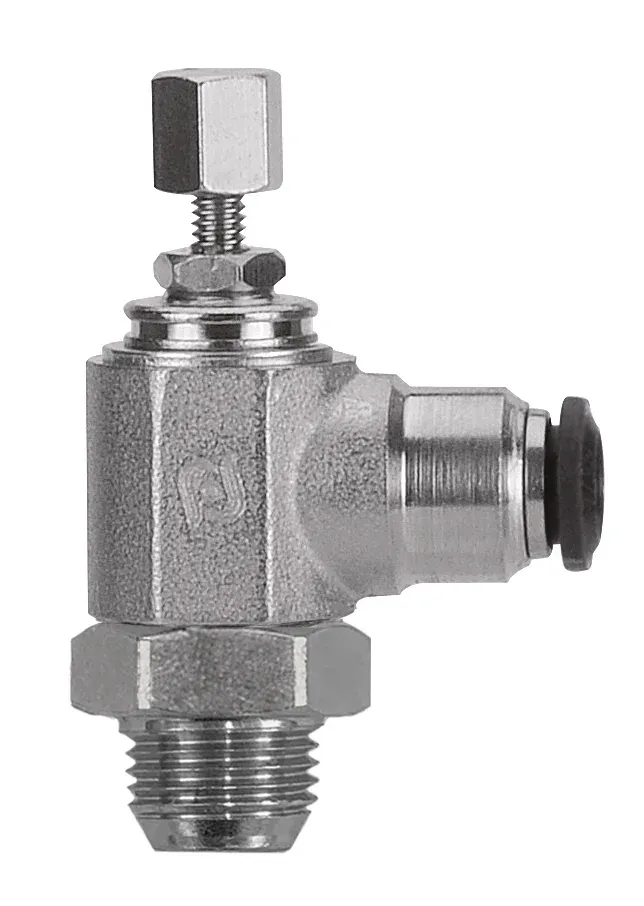

METRIC TUBE FLOW CONTROL (OUT) - PTF - MANUAL REGULATION

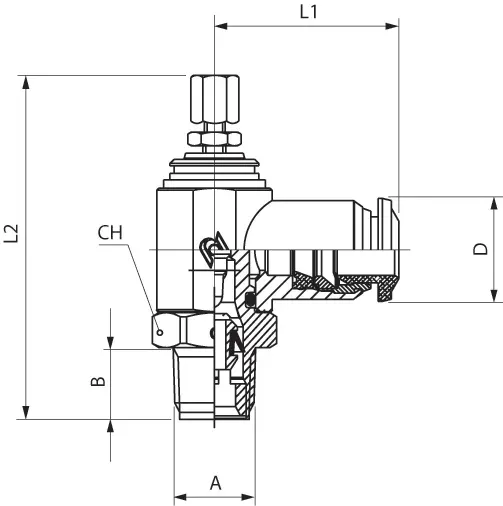

Code	USA REF	Tube	A (PTF)	B	L1	L2 min	L2 max	CH	D	Pack
50907 00 N01	50907N-4-1/8	5/32 (4)	1/8	0.240 (6.1)	0.827 (21)	1.732 (44)	1.929 (49)	0.551 (14)	0.394 (10)	10
50907 00 N02	50907N-5-1/8	5	1/8	0.240 (6.1)	0.846 (21.5)	1.732 (44)	1.929 (49)	0.551 (14)	0.492 (12.5)	10
50907 00 N03	50907N-5-1/4	5	1/4	0.358 (9.1)	0.965 (24.5)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.492 (12.5)	10
50907 00 N04	50907N-6-1/8	6	1/8	0.240 (6.1)	0.886 (22.5)	1.732 (44)	1.929 (49)	0.551 (14)	0.492 (12.5)	10
50907 00 N05	50907N-6-1/4	6	1/4	0.358 (9.1)	0.984 (25)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.492 (12.5)	10
50907 00 N06	50907N-8-1/8	5/16 (8)	1/8	0.240 (6.1)	0.945 (24)	1.732 (44)	1.929 (49)	0.551 (14)	0.551 (14)	10
50907 00 N07	50907N-8-1/4	5/16 (8)	1/4	0.358 (9.1)	1.024 (26)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.551 (14)	10

Code	Tube	A (PTF)	B	L1	L2 min	L2 max	CH	D	Pack
50907 00 N01	5/32 (4)	1/8	0.240 (6.1)	0.827 (21)	1.732 (44)	1.929 (49)	0.551 (14)	0.394 (10)	10
50907 00 N02	5	1/8	0.240 (6.1)	0.846 (21.5)	1.732 (44)	1.929 (49)	0.551 (14)	0.492 (12.5)	10
50907 00 N03	5	1/4	0.358 (9.1)	0.965 (24.5)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.492 (12.5)	10
50907 00 N04	6	1/8	0.240 (6.1)	0.886 (22.5)	1.732 (44)	1.929 (49)	0.551 (14)	0.492 (12.5)	10
50907 00 N05	6	1/4	0.358 (9.1)	0.984 (25)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.492 (12.5)	10
50907 00 N06	5/16 (8)	1/8	0.240 (6.1)	0.945 (24)	1.732 (44)	1.929 (49)	0.551 (14)	0.551 (14)	10
50907 00 N07	5/16 (8)	1/4	0.358 (9.1)	1.024 (26)	1.909 (48.5)	2.165 (55)	0.669 (17)	0.551 (14)	10

FUNCTIONAL Series
