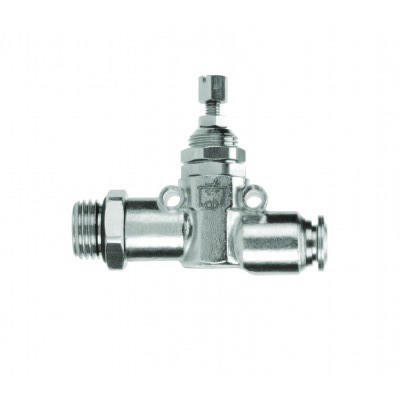

INLINE NEEDLE VALVE X TUBE - SWIFTFIT - MANUAL REGULATION

Technical characteristics / catalogAignep Scan Labels Certifications
INLINE NEEDLE VALVE X TUBE - SWIFTFIT - MANUAL REGULATION
INLINE NEEDLE VALVE X TUBE - SWIFTFIT - MANUAL REGULATION

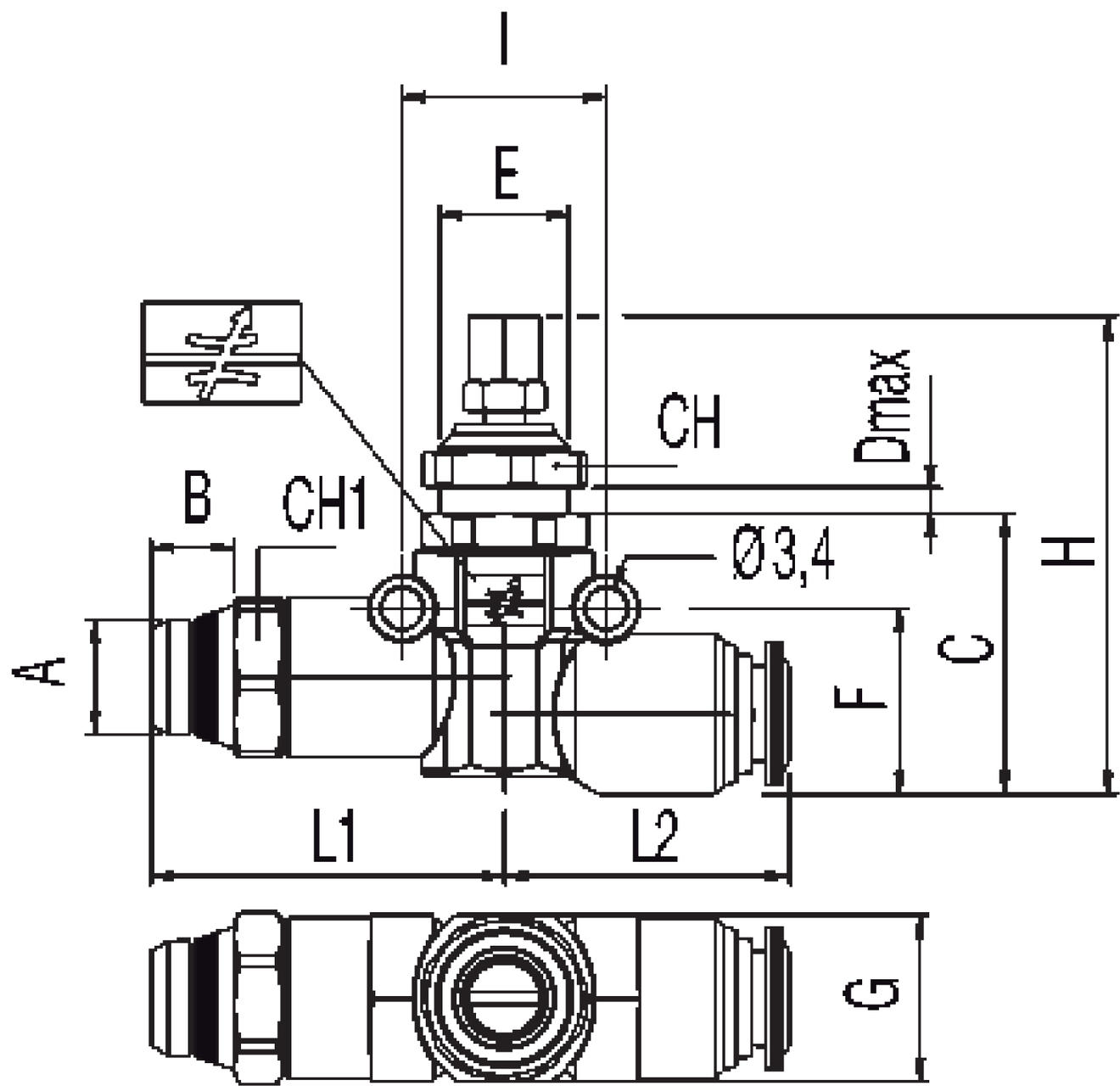

Code USA REF   A Tube B C D E F G Hmin Hmax I L1 L2 CH CH1 Pack
82835 00 003     82835-04 1/4 1/4 0.276 (7) 0.925 (23.5) 0.157 (4) M11X1 0.610 (15.5) 0.551 (14) 1.594 (40.5) 1.831 (46.5) 0.669 (17) 1.161 (29.5) 0.945 (24) 0.512 (13) 0.512 (13) 10
82835 00 004     82835-06 3/8 3/8 0.295 (7.5) 1.004 (25.5) 0.177 (4.5) M16X1 0.807 (20.5) 0.807 (20.5) 1.929 (49) 2.165 (55) 0.787 (20) 1.299 (33) 1.142 (29) 0.709 (18) 0.669 (17) 10
Code A Tube B C D E F G Hmin Hmax I L1 L2 CH CH1 Pack
82835 00 003 1/4 1/4 0.276 (7) 0.925 (23.5) 0.157 (4) M11X1 0.610 (15.5) 0.551 (14) 1.594 (40.5) 1.831 (46.5) 0.669 (17) 1.161 (29.5) 0.945 (24) 0.512 (13) 0.512 (13) 10
82835 00 004 3/8 3/8 0.295 (7.5) 1.004 (25.5) 0.177 (4.5) M16X1 0.807 (20.5) 0.807 (20.5) 1.929 (49) 2.165 (55) 0.787 (20) 1.299 (33) 1.142 (29) 0.709 (18) 0.669 (17) 10
