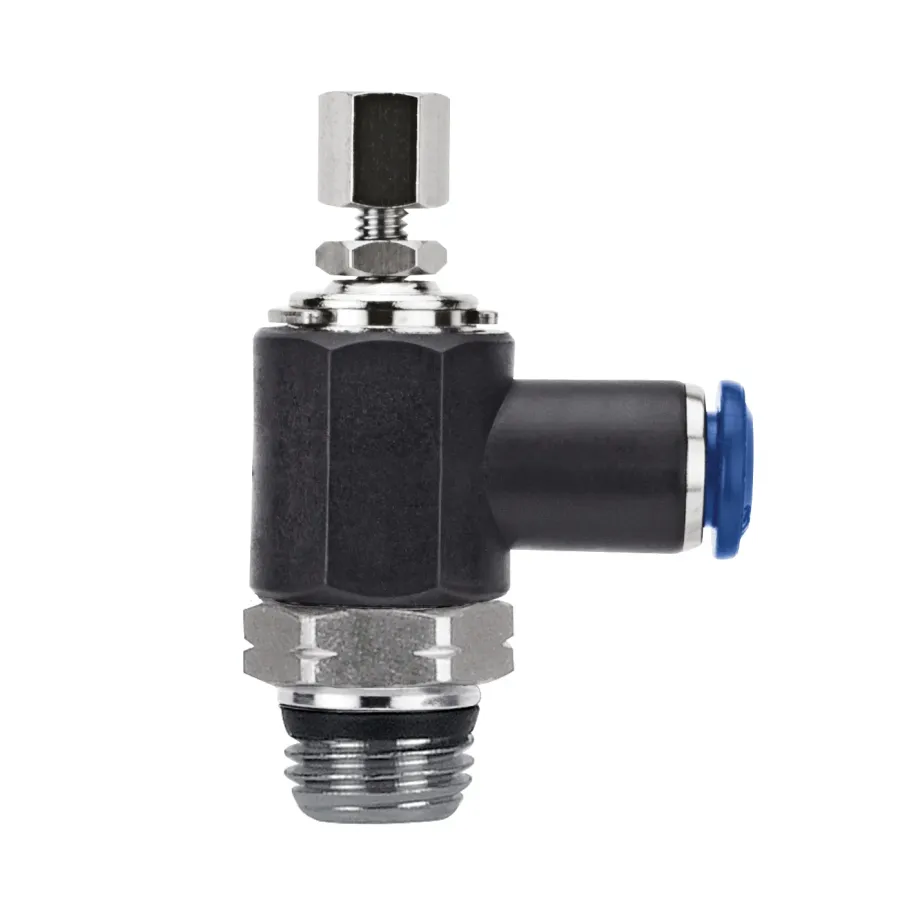

INCH TUBE FLOW CONTROL (OUT) - SWIFTFIT - MANUAL REGULATION

Technical characteristics / catalogAignep Scan Labels Certifications
INCH TUBE FLOW CONTROL (OUT) - SWIFTFIT - MANUAL REGULATION
INCH TUBE FLOW CONTROL (OUT) - SWIFTFIT - MANUAL REGULATION

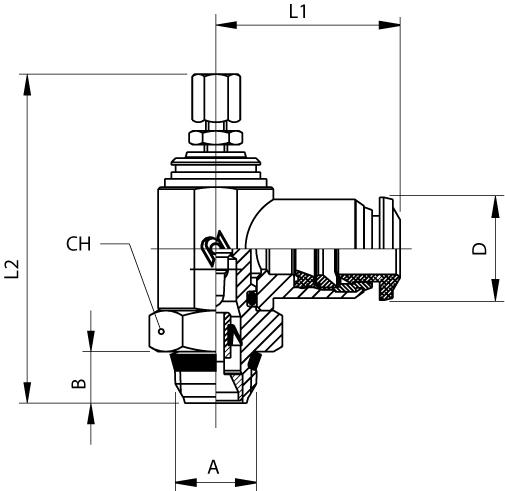

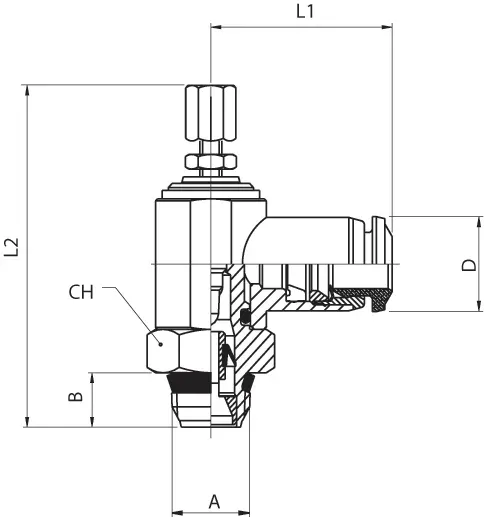

Code USA REF  Draw Tube A B L1 L2 min L2 max CH D Pack
88958 00 001     88958-02-32 Download 1/8 10/32 0.157 (4) 0.748 (19) 1.299 (33) 1.476 (37.5) 0.315 (8) 0.394 (10) 10
88958 00 002     88958-02-02 Download 1/8 1/8 0.217 (5.5) 0.827 (21) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.394 (10) 10
88958 00 003     88958-53-32 Download 5/32 10/32 0.157 (4) 0.748 (19) 1.299 (33) 1.476 (37.5) 0.315 (8) 0.394 (10) 10
88958 00 004     88958-53-02 Download 5/32 1/8 0.217 (5.5) 0.827 (21) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.394 (10) 10
88958 00 005     88958-04-02 Download 1/4 1/8 0.217 (5.5) 0.866 (22) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.492 (12.5) 10
88958 00 006     88958-04-04 Download 1/4 1/4 0.276 (7) 0.984 (25) 1.850 (47) 2.087 (53) 0.669 (17) 0.492 (12.5) 10
88958 00 007     88958-06-04 Download 3/8 1/4 0.295 (7.5) 1.201 (30.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.689 (17.5) 10
88958 00 008     88958-06-06 Download 3/8 3/8 0.295 (7.5) 1.201 (30.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.689 (17.5) 10
88958 00 009     88958-08-06 Download 1/2 3/8 0.295 (7.5) 1.280 (32.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.846 (21.5) 10
88958 00 010     88958-08-08 Download 1/2 1/2 0.354 (9) 1.378 (35) 2.402 (61) 2.717 (69) 0.945 (24) 0.846 (21.5) 10
Code Draw Tube A B L1 L2 min L2 max CH D Pack
88958 00 001 Download 1/8 10/32 0.157 (4) 0.748 (19) 1.299 (33) 1.476 (37.5) 0.315 (8) 0.394 (10) 10
88958 00 002 Download 1/8 1/8 0.217 (5.5) 0.827 (21) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.394 (10) 10
88958 00 003 Download 5/32 10/32 0.157 (4) 0.748 (19) 1.299 (33) 1.476 (37.5) 0.315 (8) 0.394 (10) 10
88958 00 004 Download 5/32 1/8 0.217 (5.5) 0.827 (21) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.394 (10) 10
88958 00 005 Download 1/4 1/8 0.217 (5.5) 0.866 (22) 1.614 (41) 1.831 (46.5) 0.551 (14) 0.492 (12.5) 10
88958 00 006 Download 1/4 1/4 0.276 (7) 0.984 (25) 1.850 (47) 2.087 (53) 0.669 (17) 0.492 (12.5) 10
88958 00 007 Download 3/8 1/4 0.295 (7.5) 1.201 (30.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.689 (17.5) 10
88958 00 008 Download 3/8 3/8 0.295 (7.5) 1.201 (30.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.689 (17.5) 10
88958 00 009 Download 1/2 3/8 0.295 (7.5) 1.280 (32.5) 2.205 (56) 2.480 (63) 0.787 (20) 0.846 (21.5) 10
88958 00 010 Download 1/2 1/2 0.354 (9) 1.378 (35) 2.402 (61) 2.717 (69) 0.945 (24) 0.846 (21.5) 10
