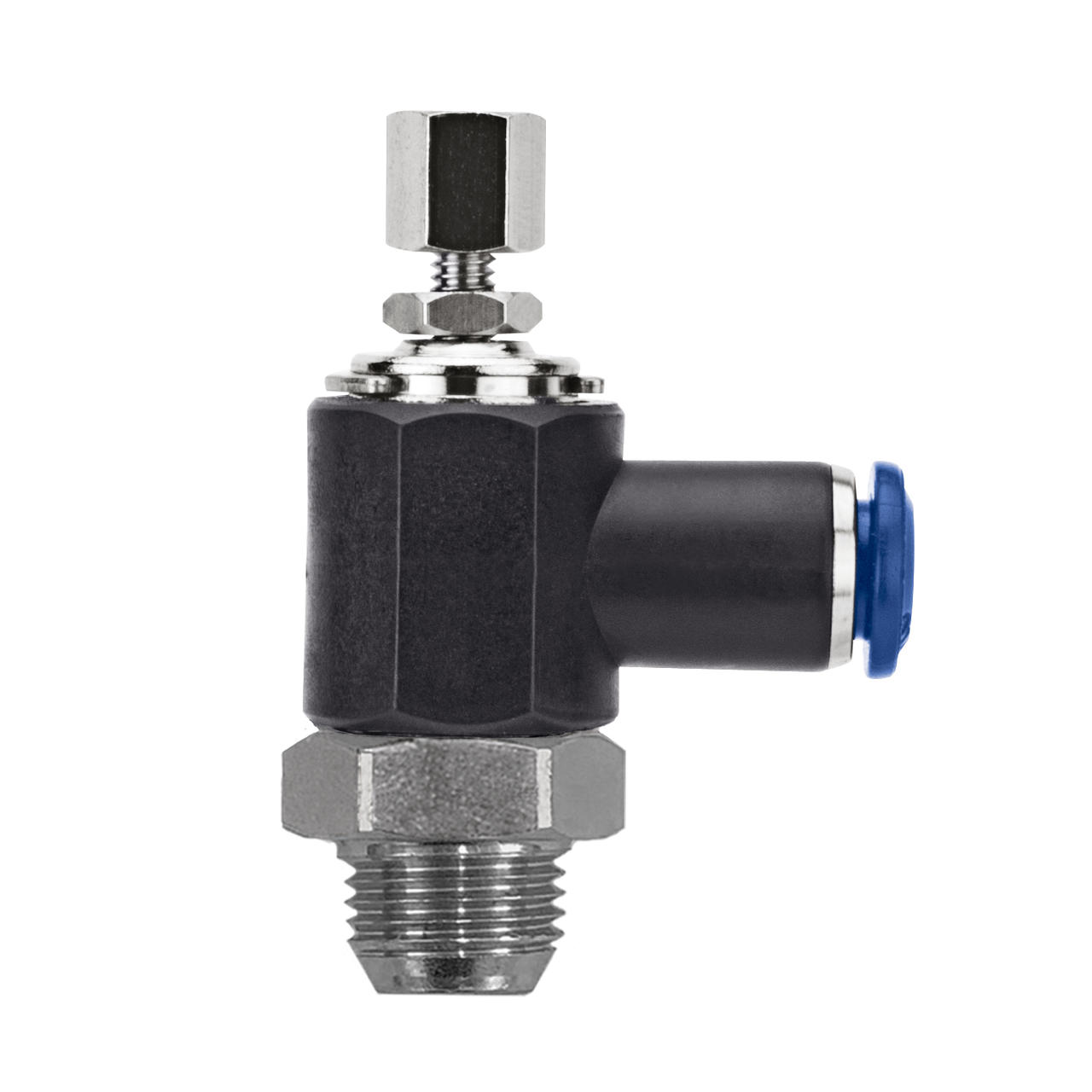

INCH TUBE FLOW CONTROL (OUT) - PTF - MANUAL REGULATION

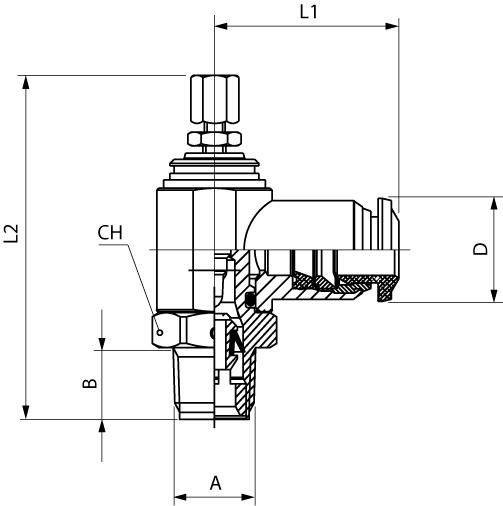

Code	USA REF	Tube	A (PTF)	B	L1	L2 min	L2 max	CH	D	Pack
85907 00 001	85907-02-02	1/8	1/8	0.240 (6.1)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
85907 00 002	85907-53-02	5/32	1/8	0.240 (6.1)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
85907 00 003	85907-04-02	1/4	1/8	0.240 (6.1)	0.866 (22)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.472 (12)	10
85907 00 004	85907-04-04	1/4	1/4	0.358 (9.1)	0.984 (25)	1.850 (47)	2.087 (53)	0.669 (17)	0.472 (12)	10
85907 00 005	85907-06-04	3/8	1/4	0.358 (9.1)	1.201 (30.5)	2.205 (56)	2.480 (63)	0.787 (20)	0.669 (17)	10

Code	Tube	A (PTF)	B	L1	L2 min	L2 max	CH	D	Pack
85907 00 001	1/8	1/8	0.240 (6.1)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
85907 00 002	5/32	1/8	0.240 (6.1)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
85907 00 003	1/4	1/8	0.240 (6.1)	0.866 (22)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.472 (12)	10
85907 00 004	1/4	1/4	0.358 (9.1)	0.984 (25)	1.850 (47)	2.087 (53)	0.669 (17)	0.472 (12)	10
85907 00 005	3/8	1/4	0.358 (9.1)	1.201 (30.5)	2.205 (56)	2.480 (63)	0.787 (20)	0.669 (17)	10

FUNCTIONAL Series
