Serie X2Y - 2/2 NC - NPTF

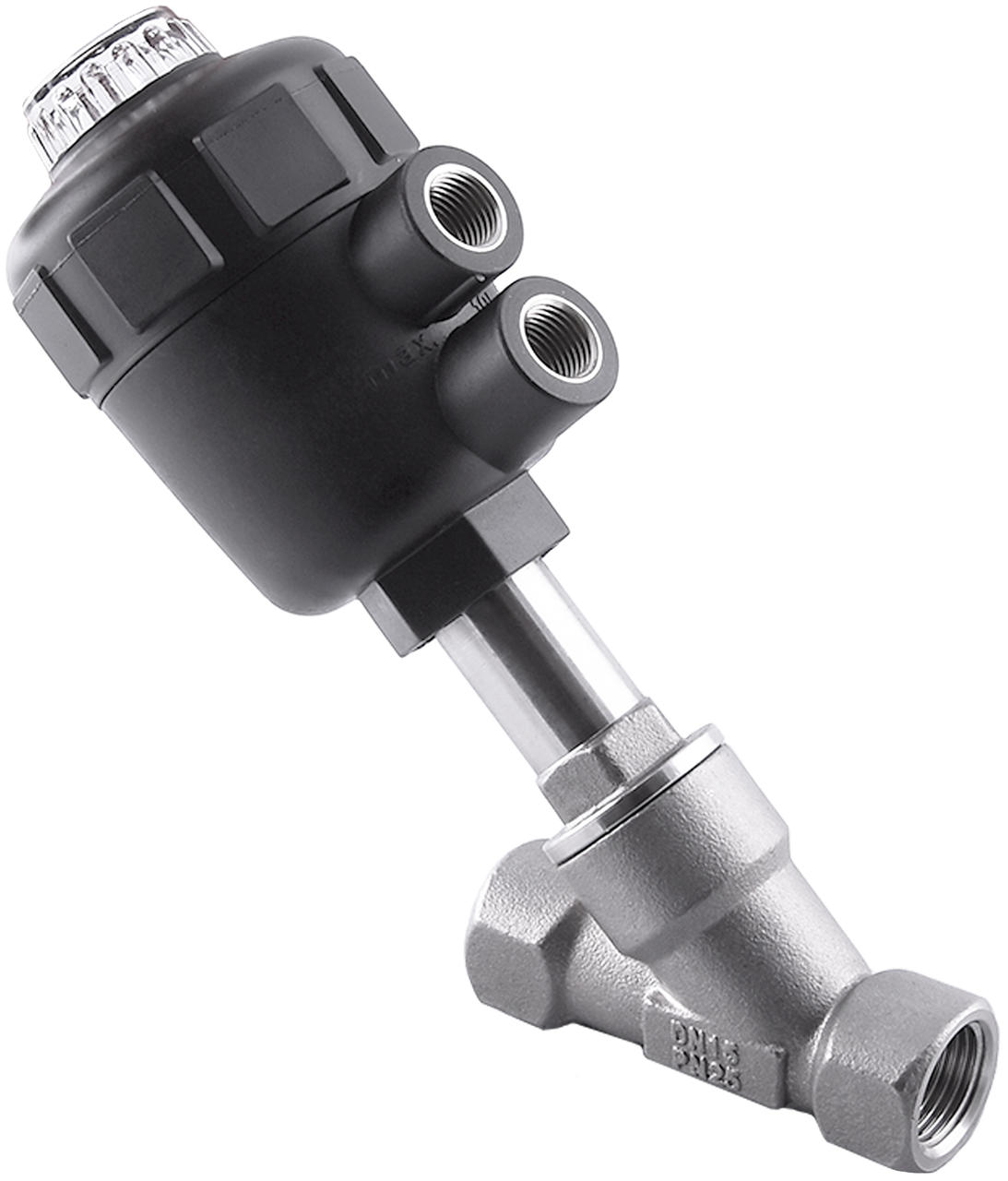

ANGLE SEAT VALVES - INLET BELOW SEAT - TECHNOPOLYMER ACTUATOR - NPTF
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Sealing material | Port size NPTF | DN (mm) | Ø Orifice in (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | Actuator size (mm) | Control pressure | OPD (ΔP) | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| X2Y 05 1 040 0 N | PTFE +14°F +356°F (-10°C +180°C) | 1/2" | 15 | 13 | 600 | 5,48 (4,7) | 40 | ≥73 psi (≥5 bar) | 0 - 174 psi (0 - 12 bar) | 1 |
| X2Y 05 1 050 0 N | PTFE +14°F +356°F (-10°C +180°C) | 1/2" | 15 | 13 | 600 | 5,48 (4,7) | 50 | ≥73 psi (≥5 bar) | 0 - 232 psi (0 - 16 bar) | 1 |
| X2Y 07 1 050 0 N | PTFE +14°F +356°F (-10°C +180°C) | 3/4" | 20 | 19 | 600 | 11,07 (9,5) | 50 | ≥73 psi (≥5 bar) | 0 - 218 psi (0 - 15 bar) | 1 |
| X2Y 09 1 063 0 N | PTFE +14°F +356°F (-10°C +180°C) | 1" | 25 | 24 | 600 | 21,09 (18,1) | 63 | ≥73 psi (≥5 bar) | 0 - 218 psi (0 - 15 bar) | 1 |
| X2Y XF 1 080 0 N | PTFE +14°F +356°F (-10°C +180°C) | 1-1/4" | 32 | 31 | 600 | 26,91 (23,1) | 80 | ≥73 psi (≥5 bar) | 0 - 218 psi (0 - 15 bar) | 1 |
| X2Y XG 1 080 0 N | PTFE +14°F +356°F (-10°C +180°C) | 1-1/2" | 40 | 35 | 600 | 38,33 (32,9) | 80 | ≥73 psi (≥5 bar) | 0 - 174 psi (0 - 12 bar) | 1 |
| X2Y XH 1 080 0 N | PTFE +14°F +356°F (-10°C +180°C) | 2" | 50 | 45 | 600 | 61,51 (52,8) | 80 | ≥73 psi (≥5 bar) | 0 - 116 psi (0 - 8 bar) | 1 |
