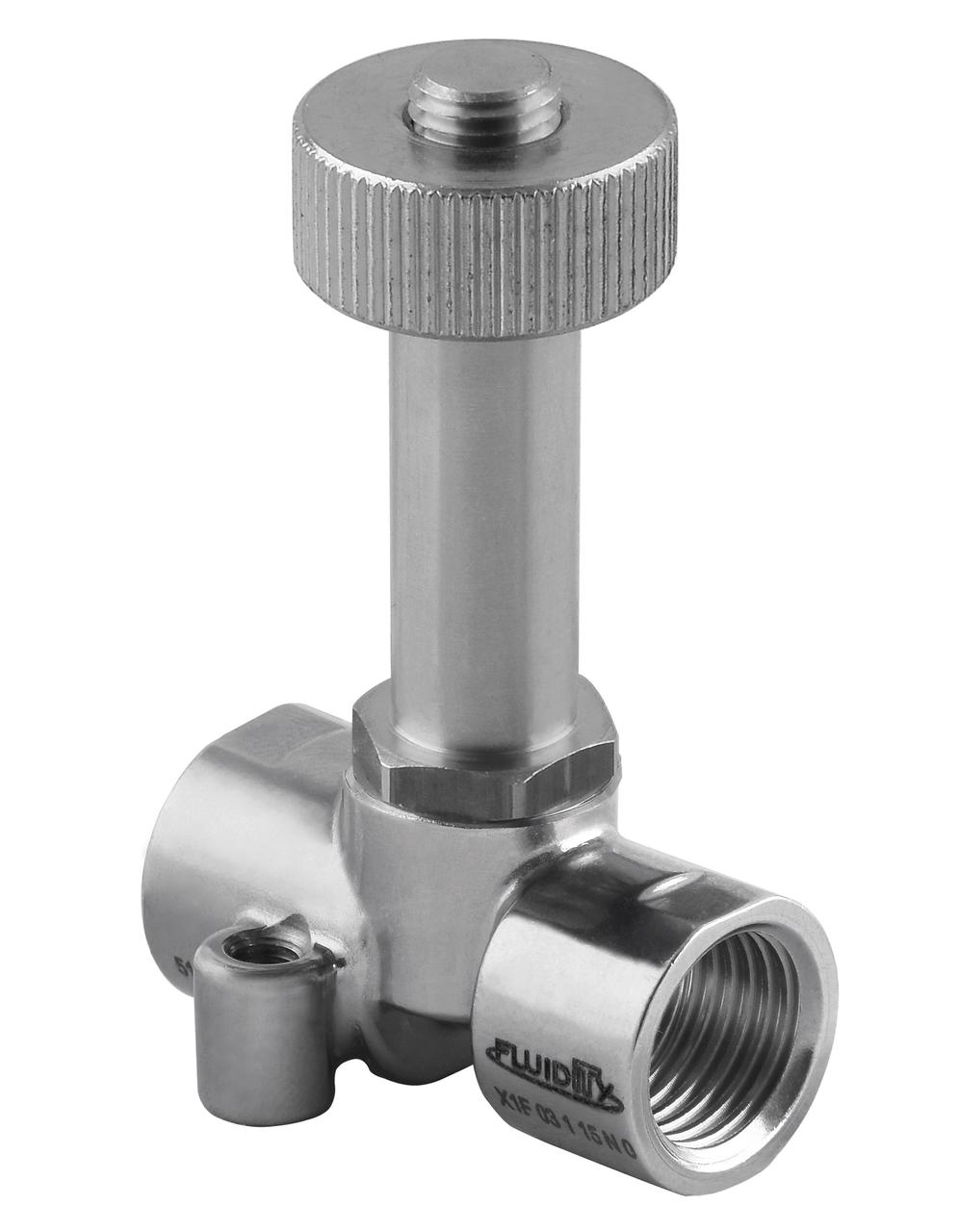

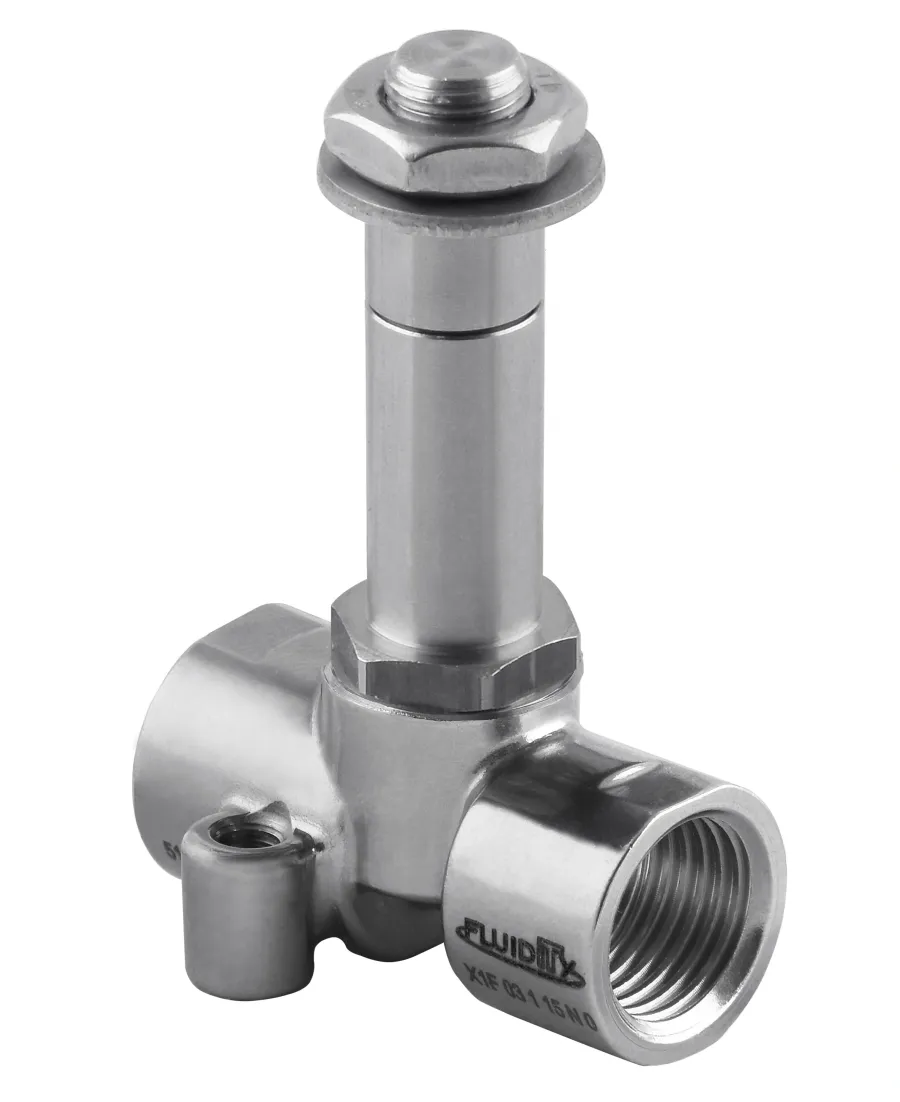

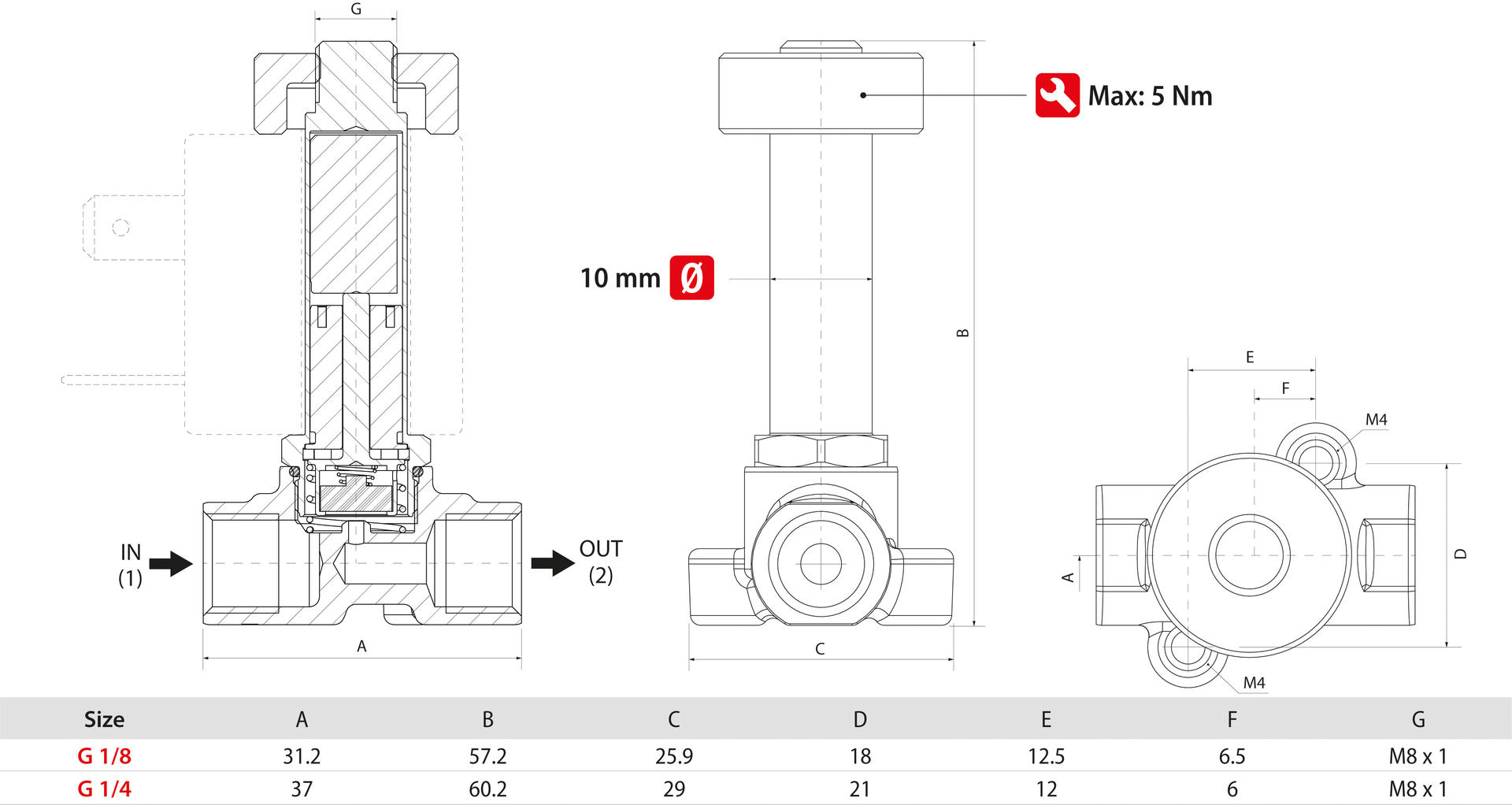

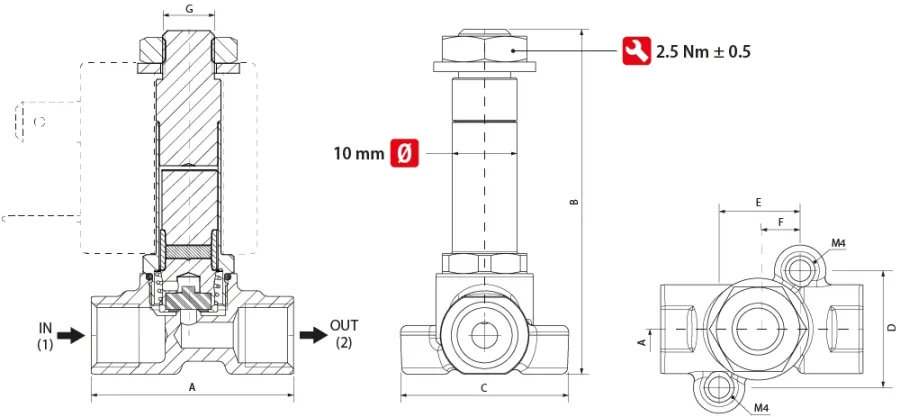

Serie X1F - 2/2 NO - NPTF
DIRECT ACTING SOLENOID VALVES - NPTF
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Sealing material | Temperature | Port size - NPTF | Ø Orifice - inch (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - AC (7.5 VA) | OPD (ΔP) - AC (11 VA) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| X1F 02 2 15 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 02 2 15 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 02 2 15 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 02 2 02 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 02 2 02 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 02 2 02 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 02 2 25 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 02 2 25 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 02 2 25 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 02 2 03 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
| X1F 02 2 03 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
| X1F 02 2 03 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
| X1F 03 2 15 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 03 2 15 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/4" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 03 2 15 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/4" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 261 psi (0 - 18 bar) | 1 |
| X1F 03 2 02 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 03 2 02 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/4" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 03 2 02 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/4" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
| X1F 03 2 25 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 03 2 25 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/4" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 03 2 25 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/4" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 0 - 94 psi (0 - 6.5 bar) | 1 |
| X1F 03 2 03 N 0 N | Download | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
| X1F 03 2 03 V 0 N | Download | FKM | +14°F +284°F (-10°C +140°C) | 1/4" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
| X1F 03 2 03 E 0 N | Download | EPDM | +14°F +284°F (-10°C +140°C) | 1/4" | 1/8 (3) | 53 | 0.23 (0.2) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 0 - 61 psi (0 - 4.2 bar) | 1 |
