Ball Valves>

GHILUX Series

>6400
6400

FEMALE X FEMALE - BSPP

Technical characteristics / catalogAignep Scan Labels Certifications
FEMALE X FEMALE - BSPP
FEMALE X FEMALE - BSPP

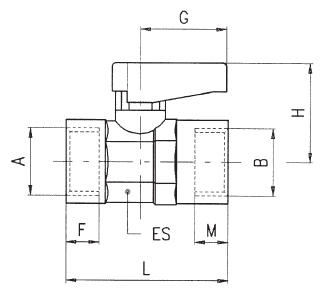

Code USA REF  Draw A B D.N. ES F M L G H Bag
06400 00 001     6400-1/8-1/8 Download 1/8 1/8 0.236 (6) 0.551 (14)-0,591 (15) 0.276 (7) 0.276 (7) 1.378 (35) 0.748 (19) 0.827 (21) 10
06400 00 002     6400-1/4-1/4 Download 1/4 1/4 0.236 (6) 0.551 (14)-0,591 (15) 0.315 (8) 0.315 (8) 1.457 (37) 0.748 (19) 0.827 (21) 10
06400 00 003     6400-3/8-3/8 Download 3/8 3/8 0.315 (8) 0.709 (18)-0,748 (19) 0.354 (9) 0.354 (9) 1.654 (42) 0.748 (19) 0.866 (22) 10
06400 00 004     6400-1/2-1/2 Download 1/2 1/2 0.394 (10) 0.866 (22)-0,906 (23) 0.394 (10) 0.394 (10) 1.929 (49) 1.024 (26) 1.201 (30.5) 10
06400 00 055     6400-3/4-3/4 Download 3/4 3/4 0.551 (14) 1.102 (28)-1.181 (30) 0.472 (12) 0.472 (12) 2.283 (58) 1.969 (50) 1.299 (33) 5
Code Draw A B D.N. ES F M L G H Bag
06400 00 001 Download 1/8 1/8 0.236 (6) 0.551 (14)-0,591 (15) 0.276 (7) 0.276 (7) 1.378 (35) 0.748 (19) 0.827 (21) 10
06400 00 002 Download 1/4 1/4 0.236 (6) 0.551 (14)-0,591 (15) 0.315 (8) 0.315 (8) 1.457 (37) 0.748 (19) 0.827 (21) 10
06400 00 003 Download 3/8 3/8 0.315 (8) 0.709 (18)-0,748 (19) 0.354 (9) 0.354 (9) 1.654 (42) 0.748 (19) 0.866 (22) 10
06400 00 004 Download 1/2 1/2 0.394 (10) 0.866 (22)-0,906 (23) 0.394 (10) 0.394 (10) 1.929 (49) 1.024 (26) 1.201 (30.5) 10
06400 00 055 Download 3/4 3/4 0.551 (14) 1.102 (28)-1.181 (30) 0.472 (12) 0.472 (12) 2.283 (58) 1.969 (50) 1.299 (33) 5
