Automatic Quick Couplings>

80190 Series 1/4 "MULTISOCKET"

80291

1/4" TRU-FLATE MALE NPTF

Technical characteristics / catalog Aignep Scan Labels Certifications

1/4" TRU-FLATE MALE NPTF

1/4" TRU-FLATE MALE NPTF

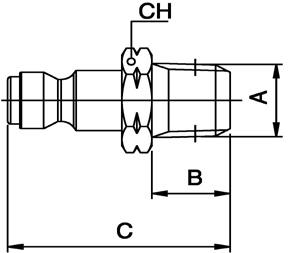

Code	USA REF			Draw	A NPTF	B	C	CH	Bag
80291 00 01 03 NB	80291-04			Download	1/4	0.512 (13)	1.457 (37)	0.669 (17)	10
80291 00 01 04 NB	80291-06			Download	3/8	0.512 (13)	1.457 (37)	0.748 (19)	10
80291 00 01 05 NB	80291-08			Download	1/2	0.669 (17)	1.634 (41.5)	0.866 (22)	10

Code	Draw	A NPTF	B	C	CH	Bag
80291 00 01 03 NB	Download	1/4	0.512 (13)	1.457 (37)	0.669 (17)	10
80291 00 01 04 NB	Download	3/8	0.512 (13)	1.457 (37)	0.748 (19)	10
80291 00 01 05 NB	Download	1/2	0.669 (17)	1.634 (41.5)	0.866 (22)	10
