85360

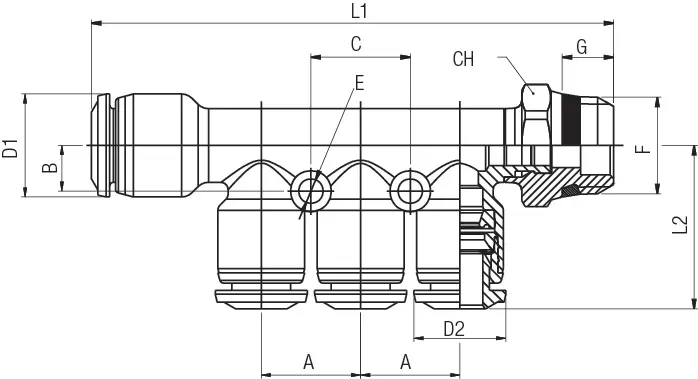

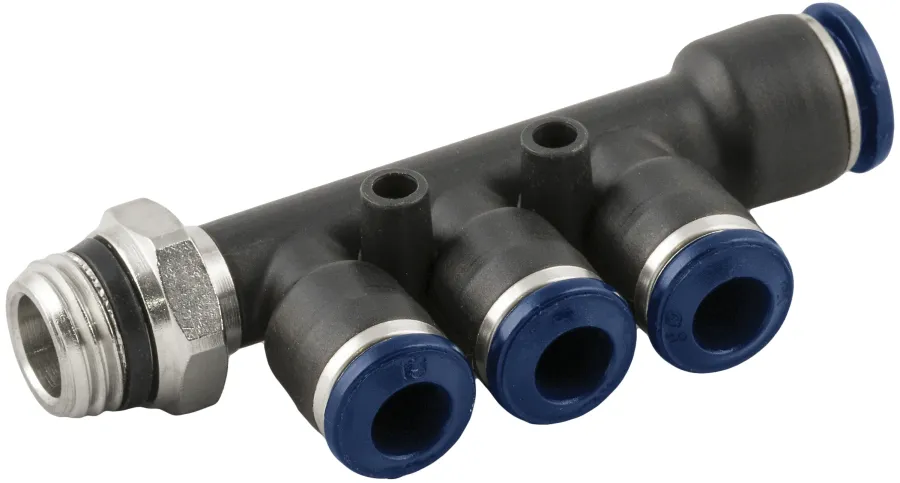

RACCORDO MULTIPLO DI RIDUZIONE ORIENTABILE MASCHIO "UNIVERSAL SHORT"
| Codice | Disegni 3D | Tubo | F | A | B | L1 | L2 | C | D1 | D2 | E | G | H | Confezione | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85360 00 003 | Richiedi accesso | 1/4-5/32 | 1/8 | 13.5 | 6 | 70 | 22 | 13.5 | 14 | 12 | 3.3 | 5.5 | 13 | 10 | |
| 85360 00 004 | Richiedi accesso | 1/4-5/32 | 1/4 | 13.5 | 6 | 71.4 | 22 | 13.5 | 14 | 12 | 3.3 | 7 | 15 | 10 | |
| 85360 00 001 | Richiedi accesso | 5/16-5/32 | 1/8 | 13.5 | 6 | 70 | 22 | 13.5 | 14 | 12 | 3.3 | 5.5 | 13 | 10 | |
| 85360 00 002 | Richiedi accesso | 5/16-5/32 | 1/4 | 13.5 | 6 | 71.4 | 22 | 13.5 | 14 | 12 | 3.3 | 7 | 15 | 10 | |
| 85360 00 005 | Richiedi accesso | 5/16-1/4 | 1/8 | 13.5 | 6 | 70 | 22 | 13.5 | 14 | 12.5 | 3.3 | 5.5 | 13 | 10 | |
| 85360 00 006 | Richiedi accesso | 5/16-1/4 | 1/4 | 13.5 | 6 | 71.4 | 22 | 13.5 | 14 | 12.5 | 3.3 | 7 | 15 | 10 | |
| 85360 00 007 | Richiedi accesso | 3/8-1/4 | 1/4 | 15 | 7 | 81.5 | 24 | 15 | 17 | 14 | 3.3 | 7 | 16 | 10 | |
| 85360 00 008 | Richiedi accesso | 3/8-1/4 | 3/8 | 15 | 7 | 81.5 | 24 | 15 | 17 | 14 | 3.3 | 7.5 | 17 | 10 | |
| 85360 00 009 | Richiedi accesso | 3/8-5/16 | 1/4 | 15 | 7 | 81.5 | 23 | 15 | 17 | 14 | 3.3 | 7 | 16 | 10 | |
| 85360 00 010 | Richiedi accesso | 3/8-5/16 | 3/8 | 15 | 7 | 81.5 | 23 | 15 | 17 | 14 | 3.3 | 7.5 | 17 | 10 |
