14230

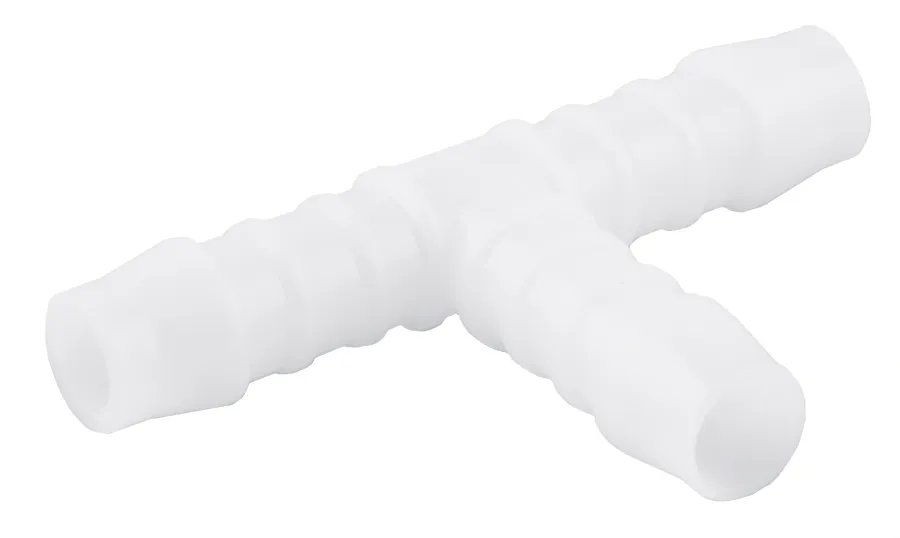

T-STÜCK SCHLAUCHVERBINDER

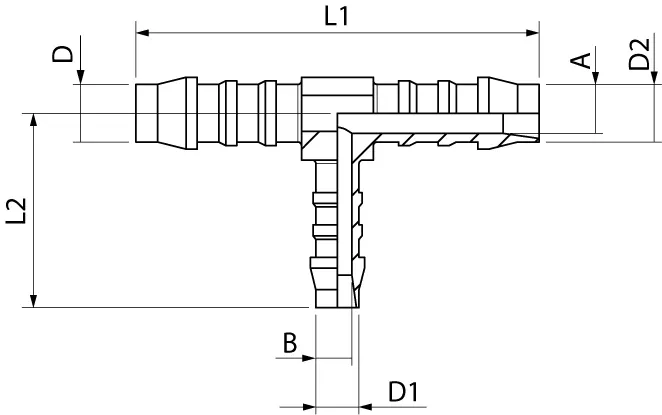

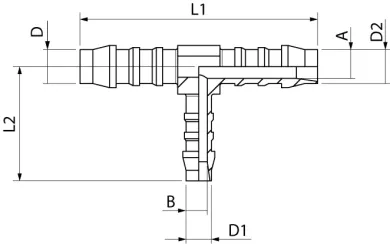

| Code | 3D-Zeichnungen | Nummer | D | D1 | D2 | A | B | L1 | L2 | Verpackung | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 142300095X100 | Zugang anfordern | 14230 00 95 X1 00 | 4 | 4 | 4 | 2.7 | 2.7 | 35 | 19.5 | 20 | |
| 142300095GR00 | Zugang anfordern | 14230 00 95 GR 00 | 4 | 6 | 4 | 2.7 | 4 | 37 | 24 | 20 | |
| 142300095X400 | Zugang anfordern | 14230 00 95 X4 00 | 6 | 6 | 6 | 4 | 4 | 50 | 26 | 20 | |
| 142300095KC00 | Zugang anfordern | 14230 00 95 KC 00 | 8 | 4 | 8 | 5.6 | 2.5 | 56 | 22 | 20 | |
| 142300095GF00 | Zugang anfordern | 14230 00 95 GF 00 | 8 | 6 | 8 | 5.6 | 4 | 56 | 28 | 20 | |
| 142300095X700 | Zugang anfordern | 14230 00 95 X7 00 | 8 | 8 | 8 | 5.6 | 5.6 | 58 | 30 | 20 | |
| 142300095PR00 | Zugang anfordern | 14230 00 95 PR 00 | 10 | 6 | 10 | 7 | 4 | 62 | 28 | 20 | |
| 142300095FQ00 | Zugang anfordern | 14230 00 95 FQ 00 | 10 | 8 | 10 | 7 | 5.6 | 62 | 31 | 20 | |
| 142300095X900 | Zugang anfordern | 14230 00 95 X9 00 | 10 | 10 | 10 | 7 | 7 | 62.5 | 33.5 | 20 | |
| 142300095FS00 | Zugang anfordern | 14230 00 95 FS 00 | 12 | 10 | 12 | 8.6 | 7 | 69 | 33 | 20 | |
| 142300095Y100 | Zugang anfordern | 14230 00 95 Y1 00 | 12 | 12 | 12 | 8.6 | 8.6 | 69 | 36 | 20 |
