DOPPELTWIRKEND MAGNETISCH

Aluminiumrohr mit Gewindestangenbefestigung.

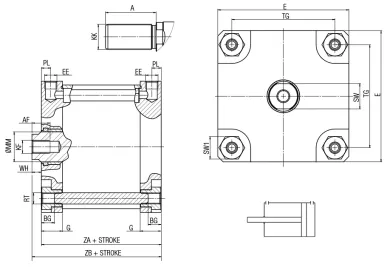

Code	3D-Zeichnungen	Nummer	Ø	Hub	A	E	G	TG	AF	BG	EE	KF	KK	MM	PL	RT	SW	WH	ZA	ZB	SW1
PF1250005T	Zugang anfordern	PF 125 0005 T	125	5	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250010T	Zugang anfordern	PF 125 0010 T	125	10	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250015T	Zugang anfordern	PF 125 0015 T	125	15	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250020T	Zugang anfordern	PF 125 0020 T	125	20	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250025T	Zugang anfordern	PF 125 0025 T	125	25	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250030T	Zugang anfordern	PF 125 0030 T	125	30	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250040T	Zugang anfordern	PF 125 0040 T	125	40	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250050T	Zugang anfordern	PF 125 0050 T	125	50	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250060T	Zugang anfordern	PF 125 0060 T	125	60	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250080T	Zugang anfordern	PF 125 0080 T	125	80	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250100T	Zugang anfordern	PF 125 0100 T	125	100	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250125T	Zugang anfordern	PF 125 0125 T	125	125	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250150T	Zugang anfordern	PF 125 0150 T	125	150	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250200T	Zugang anfordern	PF 125 0200 T	125	200	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250250T	Zugang anfordern	PF 125 0250 T	125	250	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250300T	Zugang anfordern	PF 125 0300 T	125	300	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250320T	Zugang anfordern	PF 125 0320 T	125	320	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250350T	Zugang anfordern	PF 125 0350 T	125	350	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250400T	Zugang anfordern	PF 125 0400 T	125	400	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250450T	Zugang anfordern	PF 125 0450 T	125	450	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250500T	Zugang anfordern	PF 125 0500 T	125	500	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250600T	Zugang anfordern	PF 125 0600 T	125	600	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250700T	Zugang anfordern	PF 125 0700 T	125	700	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250800T	Zugang anfordern	PF 125 0800 T	125	800	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1250900T	Zugang anfordern	PF 125 0900 T	125	900	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1251000T	Zugang anfordern	PF 125 1000 T	125	1000	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PF1600005T	Zugang anfordern	PF 160 0005 T	160	5	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600010T	Zugang anfordern	PF 160 0010 T	160	10	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600015T	Zugang anfordern	PF 160 0015 T	160	15	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600020T	Zugang anfordern	PF 160 0020 T	160	20	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600025T	Zugang anfordern	PF 160 0025 T	160	25	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600030T	Zugang anfordern	PF 160 0030 T	160	30	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600040T	Zugang anfordern	PF 160 0040 T	160	40	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600050T	Zugang anfordern	PF 160 0050 T	160	50	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600060T	Zugang anfordern	PF 160 0060 T	160	60	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600080T	Zugang anfordern	PF 160 0080 T	160	80	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600100T	Zugang anfordern	PF 160 0100 T	160	100	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600125T	Zugang anfordern	PF 160 0125 T	160	125	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600150T	Zugang anfordern	PF 160 0150 T	160	150	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600200T	Zugang anfordern	PF 160 0200 T	160	200	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600250T	Zugang anfordern	PF 160 0250 T	160	250	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600300T	Zugang anfordern	PF 160 0300 T	160	300	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600320T	Zugang anfordern	PF 160 0320 T	160	320	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600350T	Zugang anfordern	PF 160 0350 T	160	350	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600400T	Zugang anfordern	PF 160 0400 T	160	400	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600450T	Zugang anfordern	PF 160 0450 T	160	450	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600500T	Zugang anfordern	PF 160 0500 T	160	500	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600600T	Zugang anfordern	PF 160 0600 T	160	600	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600700T	Zugang anfordern	PF 160 0700 T	160	700	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600800T	Zugang anfordern	PF 160 0800 T	160	800	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1600900T	Zugang anfordern	PF 160 0900 T	160	900	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF1601000T	Zugang anfordern	PF 160 1000 T	160	1000	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000005T	Zugang anfordern	PF 200 0005 T	200	5	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000010T	Zugang anfordern	PF 200 0010 T	200	10	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000015T	Zugang anfordern	PF 200 0015 T	200	15	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000020T	Zugang anfordern	PF 200 0020 T	200	20	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000025T	Zugang anfordern	PF 200 0025 T	200	25	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000030T	Zugang anfordern	PF 200 0030 T	200	30	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000040T	Zugang anfordern	PF 200 0040 T	200	40	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000050T	Zugang anfordern	PF 200 0050 T	200	50	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000060T	Zugang anfordern	PF 200 0060 T	200	60	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000080T	Zugang anfordern	PF 200 0080 T	200	80	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000100T	Zugang anfordern	PF 200 0100 T	200	100	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000125T	Zugang anfordern	PF 200 0125 T	200	125	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000150T	Zugang anfordern	PF 200 0150 T	200	150	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000200T	Zugang anfordern	PF 200 0200 T	200	200	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000250T	Zugang anfordern	PF 200 0250 T	200	250	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000300T	Zugang anfordern	PF 200 0300 T	200	300	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000320T	Zugang anfordern	PF 200 0320 T	200	320	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000350T	Zugang anfordern	PF 200 0350 T	200	350	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000400T	Zugang anfordern	PF 200 0400 T	200	400	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000450T	Zugang anfordern	PF 200 0450 T	200	450	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000500T	Zugang anfordern	PF 200 0500 T	200	500	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000600T	Zugang anfordern	PF 200 0600 T	200	600	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000700T	Zugang anfordern	PF 200 0700 T	200	700	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000800T	Zugang anfordern	PF 200 0800 T	200	800	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2000900T	Zugang anfordern	PF 200 0900 T	200	900	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2001000T	Zugang anfordern	PF 200 1000 T	200	1000	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PF2500005T	Zugang anfordern	PF 250 0005 T	250	5	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500010T	Zugang anfordern	PF 250 0010 T	250	10	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500015T	Zugang anfordern	PF 250 0015 T	250	15	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500020T	Zugang anfordern	PF 250 0020 T	250	20	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500025T	Zugang anfordern	PF 250 0025 T	250	25	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500030T	Zugang anfordern	PF 250 0030 T	250	30	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500040T	Zugang anfordern	PF 250 0040 T	250	40	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500050T	Zugang anfordern	PF 250 0050 T	250	50	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500060T	Zugang anfordern	PF 250 0060 T	250	60	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500080T	Zugang anfordern	PF 250 0080 T	250	80	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500100T	Zugang anfordern	PF 250 0100 T	250	100	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500125T	Zugang anfordern	PF 250 0125 T	250	125	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500150T	Zugang anfordern	PF 250 0150 T	250	150	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500200T	Zugang anfordern	PF 250 0200 T	250	200	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500250T	Zugang anfordern	PF 250 0250 T	250	250	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500300T	Zugang anfordern	PF 250 0300 T	250	300	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500320T	Zugang anfordern	PF 250 0320 T	250	320	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500350T	Zugang anfordern	PF 250 0350 T	250	350	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500400T	Zugang anfordern	PF 250 0400 T	250	400	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500450T	Zugang anfordern	PF 250 0450 T	250	450	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500500T	Zugang anfordern	PF 250 0500 T	250	500	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500600T	Zugang anfordern	PF 250 0600 T	250	600	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500700T	Zugang anfordern	PF 250 0700 T	250	700	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500800T	Zugang anfordern	PF 250 0800 T	250	800	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2500900T	Zugang anfordern	PF 250 0900 T	250	900	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PF2501000T	Zugang anfordern	PF 250 1000 T	250	1000	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
