MPD
FUSSBEFESTIGUNG

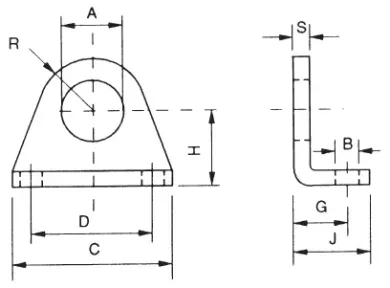

| Code | 3D-Zeichnungen | Nummer | Ø | A | B | C | D | G | H | J | R | S | Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPD008 | Zugang anfordern | MPD 008 | 8-10 | 12 | 4,5 | 35 | 25 | 11 | 16 | 16 | 10 | 3 | Stahl | |
| MPD012 | Zugang anfordern | MPD 012 | 12-16 | 16 | 5,5 | 42 | 32 | 14 | 20 | 20 | 13,5 | 4 | Stahl | |
| MPD020 | Zugang anfordern | MPD 020 | 20-25 | 22 | 6,6 | 54 | 40 | 17 | 25 | 25 | 18 | 5 | Stahl |
