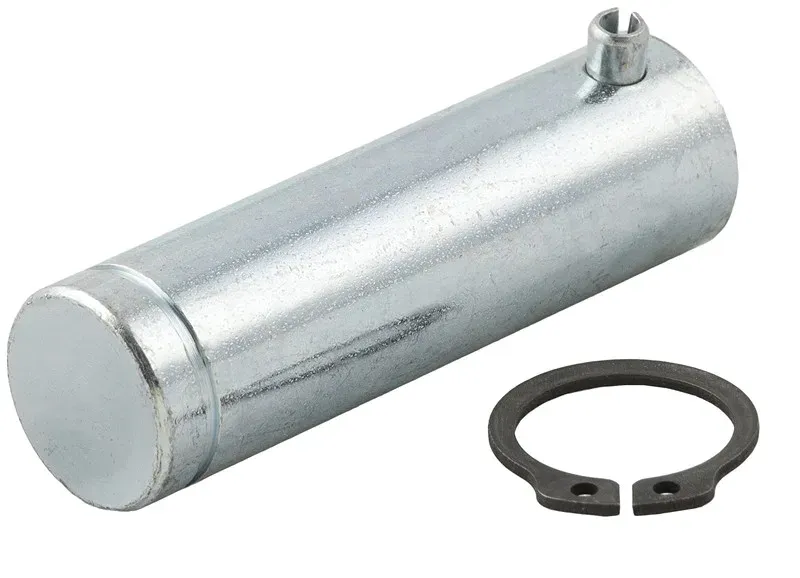

VERDREHSICHERUNG FÜR SCHWENKBEFESTIGUNG VCD - ALUMINIUM
|
Code |

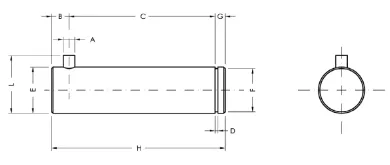

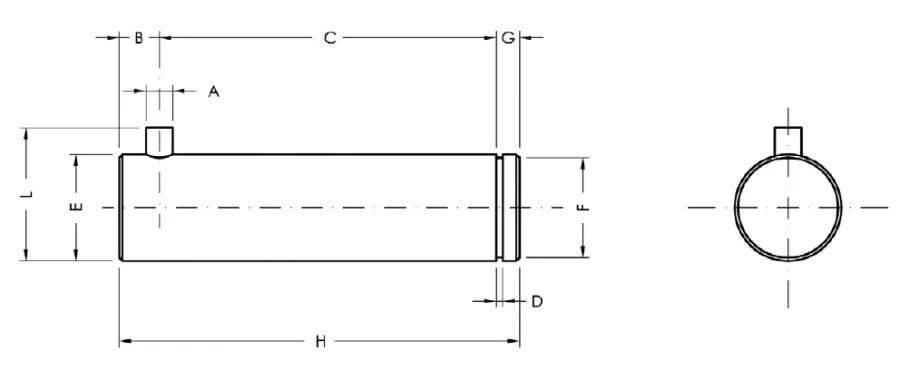

3D-Zeichnungen |
Nummer |
Ø |
A |
C |
D |
E |
F |
G |
H |
L |
B |
|
VPS032
|
-
Zugang anfordern
|
VPS 032 |
32 |
3 |
32,5 |
1,1 |
10 |
9,6 |
4 |
41 |
14 |
4,5 |
|
VPS040
|
-
Zugang anfordern
|
VPS 040 |
40 |
4 |
38 |
1,1 |
12 |
11,5 |
4 |
48 |
16 |
6 |
|
VPS050
|
-
Zugang anfordern
|
VPS 050 |
50 |
4 |
43 |
1,1 |
16 |
15,2 |
5 |
54 |
20 |
6 |
|
VPS063
|
-
Zugang anfordern
|
VPS 063 |
63 |
4 |
49 |
1,1 |
16 |
15,2 |
5 |
54 |
20 |
6 |
|
VPS080
|
-
Zugang anfordern
|
VPS 080 |
80 |
4 |
63 |
1,3 |
20 |
19 |
6 |
75 |
24 |
6 |
|
VPS100
|
-
Zugang anfordern
|
VPS 100 |
100 |
4 |
73 |
1,3 |
20 |
19 |
6 |
85 |
24 |
6 |
|
VPS125
|
-
Zugang anfordern
|
VPS 125 |
125 |
6 |
94 |
1,6 |
30 |
28,6 |
7 |
110 |
36 |
9 |
