CG04SX

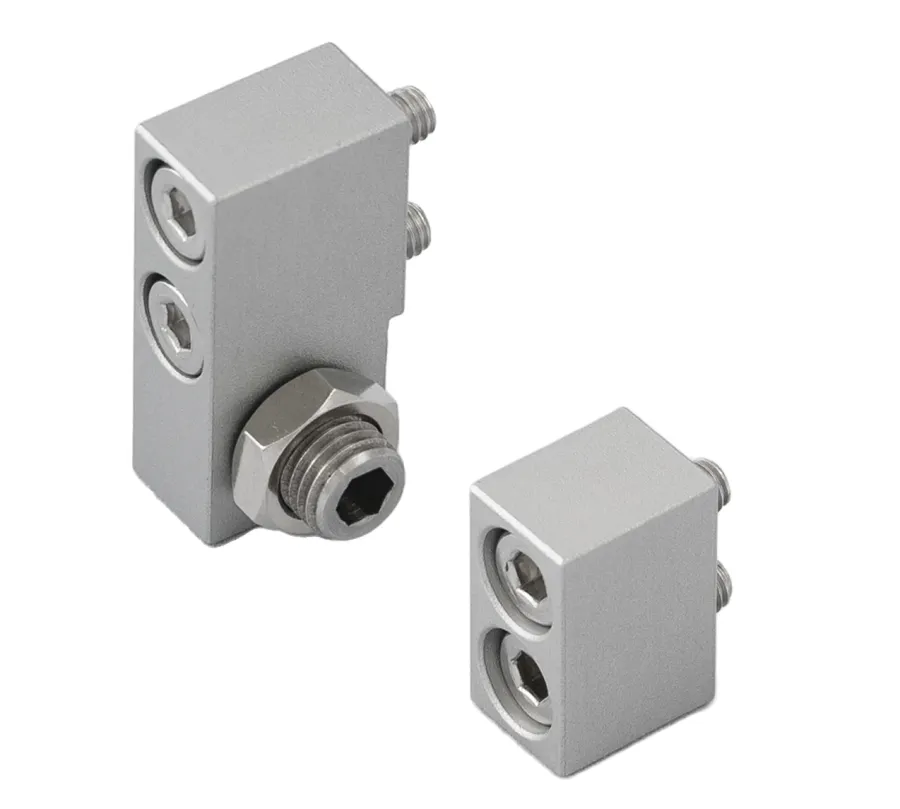

HUBBEGRENZER AM AUSZUGSENDE
| Code | 3D-Zeichnungen | Nummer | Ø | Hub-Einstellbereich | A | B | C | D | E | F | M | P | H | I | J | Q | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CG04006SX05 | Zugang anfordern | CG04 006 SX05 | 6 | 5 | 6 | 17.8 | 10.5 | 16.5 | 7 | 2,5 | M5X0,8 | M2,5X10 | 12,5 | 6 | 8,5 | M2,5X8 | |
| CG04008SX05 | Zugang anfordern | CG04 008 SX05 | 8 | 5 | 7 | 21.5 | 11 | 16.5 | 8 | 3 | M6X1 | M3X10 | 14,6 | 7 | 10 | M3X10 | |
| CG04012SX05 | Zugang anfordern | CG04 012 SX05 | 12 | 5 | 9,5 | 31 | 16 | 20 | 11 | 4 | M8X1 | M4X16 | 18,5 | 10 | 13 | M4X12 | |
| CG04016SX05 | Zugang anfordern | CG04 016 SX05 | 16 | 5 | 11 | 37 | 19 | 24.5 | 14 | 5 | M10X1 | M5X16 | 21 | 12 | 16,5 | M5X16 | |
| CG04020SX05 | Zugang anfordern | CG04 020 SX05 | 20 | 5 | 13 | 45.5 | 24 | 27.5 | 17 | 6 | M12X1,25 | M6X20 | 25 | 13 | 21 | M6X20 | |
| CG04025SX05 | Zugang anfordern | CG04 025 SX05 | 25 | 5 | 16 | 53.5 | 26.5 | 32.5 | 19 | 6 | M14X1,5 | M8X25 | 31 | 17 | 25,5 | M8X25 |
