90247-80-110-168

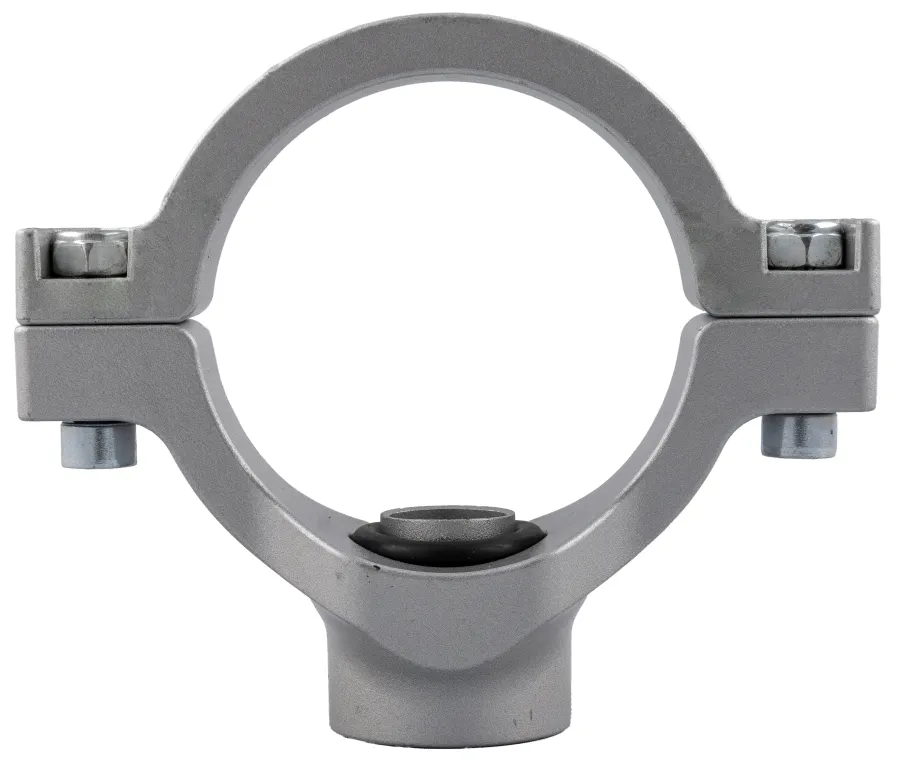

SCHNELLFLANSCH MIT INNENGEWINDE

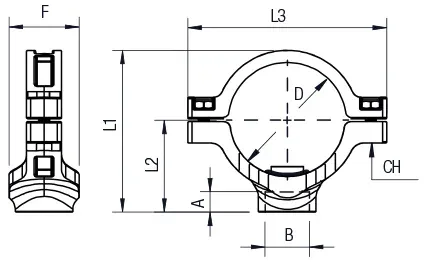

| Code | 3D-Zeichnungen | Nummer | D | B | A | F | L1 | L2 | L3 | CH | Verpackung | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9024700007 | Zugang anfordern | 90247 00 007 | 80 | 3/4 | 16.5 | 50 | 117.5 | 66.5 | 141.5 | 6 | 1 | |
| 9024700008 | Zugang anfordern | 90247 00 008 | 80 | 1" | 19 | 50 | 120 | 69 | 141.5 | 6 | 1 | |
| 9024700009 | Zugang anfordern | 90247 00 009 | 110 | 3/4 | 16.5 | 50 | 152.5 | 82 | 189.5 | 8 | 1 | |
| 9024700010 | Zugang anfordern | 90247 00 010 | 110 | 1" | 19 | 50 | 155 | 84.5 | 189.5 | 8 | 1 | |
| 9024700015 | Zugang anfordern | 90247 00 015 | 110 | 2" | 22 | 71 | 165 | 94 | 189.5 | 8 | 1 | |
| 9024700011 | Zugang anfordern | 90247 00 011 | 168 | 3/4 | 16.5 | 52 | 213 | 114 | 249 | 8 | 1 | |
| 9024700012 | Zugang anfordern | 90247 00 012 | 168 | 1" | 19 | 52 | 213 | 114 | 249 | 8 | 1 | |
| 9024700013 | Zugang anfordern | 90247 00 013 | 168 | 1"1/2 | 19 | 74 | 213 | 114 | 249 | 8 | 1 | |
| 9024700014 | Zugang anfordern | 90247 00 014 | 168 | 2" | 22 | 74 | 213 | 114 | 249 | 8 | 1 |
