90248-80-110-168

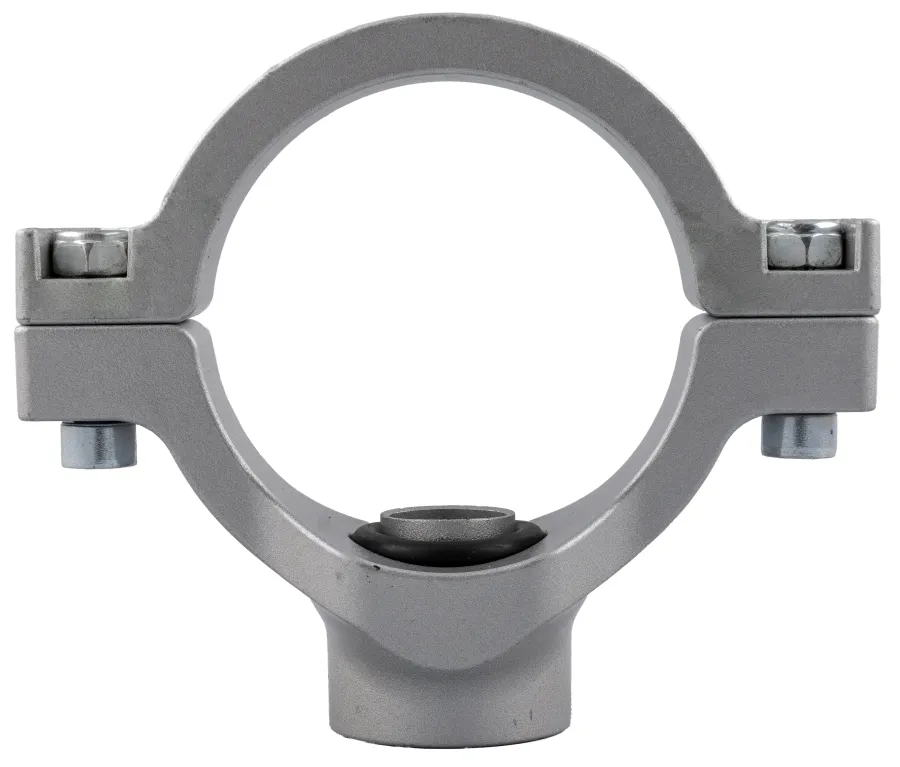

SCHNELLFLANSCH MIT INNENGEWINDE NPTF

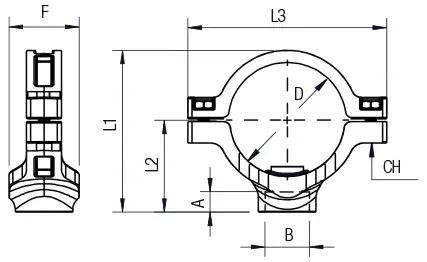

| Code | 3D-Zeichnungen | Nummer | D | B | A | F | L1 | L2 | L3 | CH | Verpackung | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9024800007 | Zugang anfordern | 90248 00 007 | 80 | 3/4 | 16.5 | 50 | 117.5 | 66.5 | 141.5 | 6 | 1 | |
| 9024800008 | Zugang anfordern | 90248 00 008 | 80 | 1" | 19 | 50 | 120 | 69 | 141.5 | 6 | 1 | |
| 9024800009 | Zugang anfordern | 90248 00 009 | 110 | 3/4 | 16.5 | 50 | 152.5 | 82 | 189.5 | 8 | 1 | |
| 9024800010 | Zugang anfordern | 90248 00 010 | 110 | 1" | 19 | 50 | 155 | 84.5 | 189.5 | 8 | 1 | |
| 9024800015 | Zugang anfordern | 90248 00 015 | 110 | 2" | 22 | 71 | 165 | 94 | 189.5 | 8 | 1 | |
| 9024800011 | Zugang anfordern | 90248 00 011 | 168 | 3/4 | 14 | 52 | 213 | 114 | 249 | 8 | 1 | |
| 9024800012 | Zugang anfordern | 90248 00 012 | 168 | 1" | 16.8 | 52 | 213 | 114 | 249 | 8 | 1 | |
| 9024800013 | Zugang anfordern | 90248 00 013 | 168 | 1"1/2 | 17.3 | 72 | 213 | 124 | 249 | 8 | 1 | |
| 9024800014 | Zugang anfordern | 90248 00 014 | 168 | 2" | 17.3 | 72 | 213 | 124 | 249 | 8 | 1 |
