90249-80-110-168

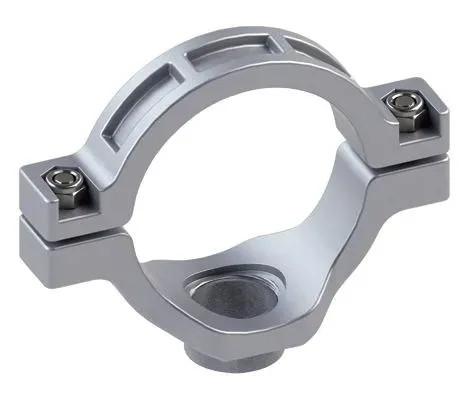

BOHRSCHABLONE

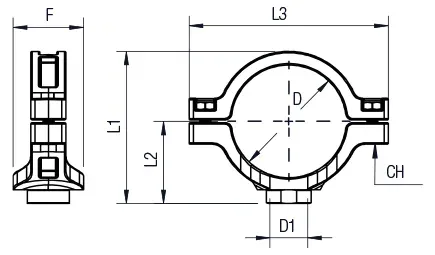

| Code | 3D-Zeichnungen | Nummer | D | D1 | F | L1 | L2 | L3 | CH | Verpackung | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9024900007 | Zugang anfordern | 90249 00 007 | 80 | 24,5 | 50 | 110.5 | 59.5 | 141.5 | 6 | 1 | |
| 9024900008 | Zugang anfordern | 90249 00 008 | 110 | 24,5 | 50 | 135.5 | 64.5 | 189.5 | 8 | 1 | |
| 9024900011 | Zugang anfordern | 90249 00 011 | 110 2" | 41,5 | 71 | 147 | 77 | 189.5 | 8 | 1 | |
| 9024900009 | Zugang anfordern | 90249 00 009 | 168 3/4 - 168 1" | 24,5 | 52 | 201.5 | 102.5 | 248.5 | 8 | 1 | |
| 9024900010 | Zugang anfordern | 90249 00 010 | 168 1"1/2 - 168 2" | 41,5 | 74 | 204.5 | 105.5 | 248.5 | 8 | 1 |
