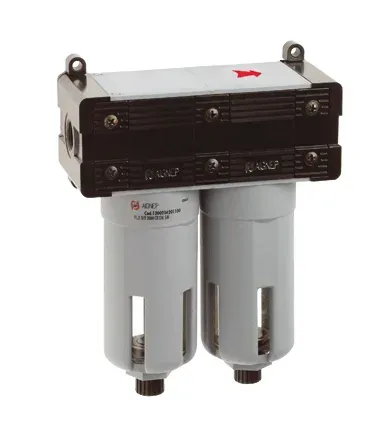

Filter
T400
FIL + FC

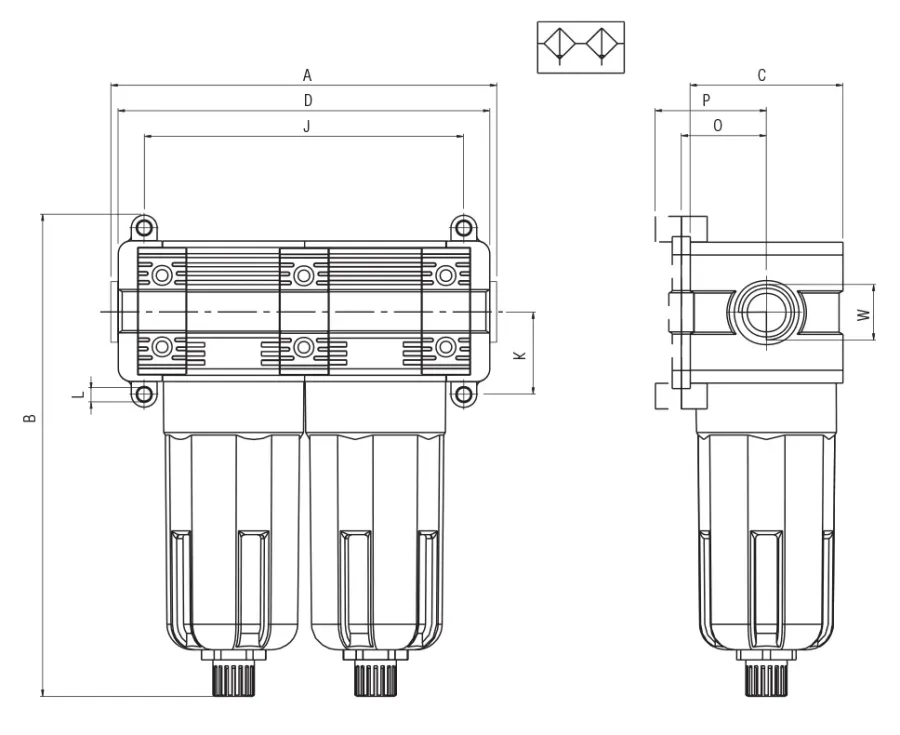

| Code | 3D-Zeichnungen | Nummer | Grösse | Gewinde | Filterfeinheit | Durchfluss | A | B | C | D | W | J | K | L | O | P | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400103401000 | Zugang anfordern | T400 103 401 000 | FIL+FC 1 | 1/4 | 5µm + 0,01µm | 600 NI/min | 118,5 | 146 | 45 | 115 | 1/4 | 97 | 26 | Ø X M4 | 26 | 32,5 | |
| T400104401000 | Zugang anfordern | T400 104 401 000 | FIL+FC 1 | 3/8 | 5µm + 0,01µm | 600 NI/min | 118,5 | 146 | 45 | 115 | 3/8 | 97 | 26 | Ø X M4 | 26 | 32,5 | |
| T400204401000 | Zugang anfordern | T400 204 401 000 | FIL+FC 2 | 3/8 | 5µm + 0,01µm | 660 NI/min | 144 | 178,5 | 59 | 144 | 3/8 | 124 | 32,5 | Ø X M5 | 32 | 38,5 | |
| T400205401000 | Zugang anfordern | T400 205 401 000 | FIL+FC 2 | 1/2 | 5µm + 0,01µm | 660 NI/min | 144 | 178,5 | 59 | 144 | 1/2 | 124 | 32,5 | Ø X M5 | 32 | 38,5 | |
| T400307401000 | Zugang anfordern | T400 307 401 000 | FIL+FC 3 | 3/4 | 5µm + 0,01µm | 910 NI/min | 171 | 197,5 | 70 | 165 | 3/4 | 144 | 38 | Ø X M6 | 38,5 | 45 | |
| T400309401000 | Zugang anfordern | T400 309 401 000 | FIL+FC 3 | 1" | 5µm + 0,01µm | 910 NI/min | 176 | 197,5 | 70 | 165 | 1" | 144 | 38 | Ø X M6 | 38,5 | 45 |
