Filter

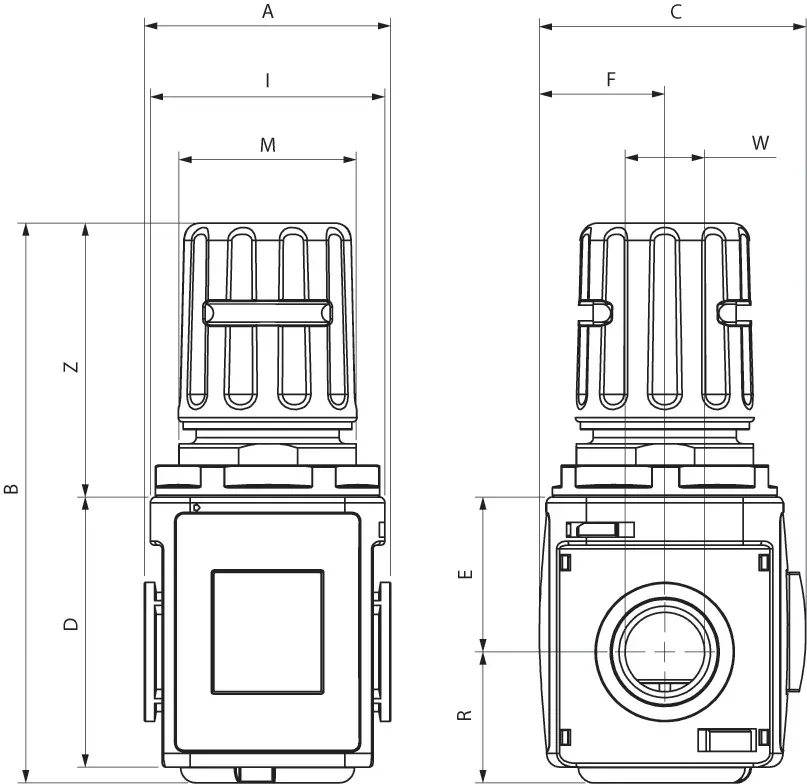

| Code | 3D-Zeichnungen | Nummer | Grösse | Gewinde | Regulierung | Durchfluss | A | B | C | D | W | E | F | I | R | M | Z | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y020103010000 | Zugang anfordern | Y020 103 010 000 | REG 1 | 1/4 | 0÷2 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020103020000 | Zugang anfordern | Y020 103 020 000 | REG 1 | 1/4 | 0÷4 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020103030000 | Zugang anfordern | Y020 103 030 000 | REG 1 | 1/4 | 0÷8 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020103040000 | Zugang anfordern | Y020 103 040 000 | REG 1 | 1/4 | 0÷12 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020104010000 | Zugang anfordern | Y020 104 010 000 | REG 1 | 3/8 | 0÷2 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020104020000 | Zugang anfordern | Y020 104 020 000 | REG 1 | 3/8 | 0÷4 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020104030000 | Zugang anfordern | Y020 104 030 000 | REG 1 | 3/8 | 0÷8 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020104040000 | Zugang anfordern | Y020 104 040 000 | REG 1 | 3/8 | 0÷12 Bar | 2600 Nl/min | 51 | 117 | 57 | 57 | 1/4 - 3/8 | 32,5 | 25,5 | 47,5 | 28 | M37x1,5 | 57 | |
| Y020204010000 | Zugang anfordern | Y020 204 010 000 | REG 2 | 3/8 | 0÷2 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020204020000 | Zugang anfordern | Y020 204 020 000 | REG 2 | 3/8 | 0÷4 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020204030000 | Zugang anfordern | Y020 204 030 000 | REG 2 | 3/8 | 0÷8 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020204040000 | Zugang anfordern | Y020 204 040 000 | REG 2 | 3/8 | 0÷12 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020205010000 | Zugang anfordern | Y020 205 010 000 | REG 2 | 1/2 | 0÷2 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020205020000 | Zugang anfordern | Y020 205 020 000 | REG 2 | 1/2 | 0÷4 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020205030000 | Zugang anfordern | Y020 205 030 000 | REG 2 | 1/2 | 0÷8 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020205040000 | Zugang anfordern | Y020 205 040 000 | REG 2 | 1/2 | 0÷12 Bar | 4000 Nl/min | 62 | 141,5 | 67 | 68 | 3/8 - 1/2 | 39 | 31,5 | 59 | 33 | M47x1,5 | 72,5 | |
| Y020307030000 | Zugang anfordern | Y020 307 030 000 | REG 3 | 3/4 | 0÷8 Bar | 7700 Nl/min | 90 | 178 | 96 | 89 | 3/4 - 1 | 47 | 46 | 77,5 | 52 | M59x1,5 | 79 | |
| Y020307040000 | Zugang anfordern | Y020 307 040 000 | REG 3 | 3/4 | 0÷12 Bar | 7700 Nl/min | 90 | 178 | 96 | 89 | 3/4 - 1 | 47 | 46 | 77,5 | 52 | M59x1,5 | 79 | |
| Y020309030000 | Zugang anfordern | Y020 309 030 000 | REG 3 | 1 | 0÷8 Bar | 7700 Nl/min | 90 | 178 | 96 | 89 | 3/4 - 1 | 47 | 46 | 77,5 | 52 | M59x1,5 | 79 | |
| Y020309040000 | Zugang anfordern | Y020 309 040 000 | REG 3 | 1 | 0÷12 Bar | 7700 Nl/min | 90 | 178 | 96 | 89 | 3/4 - 1 | 47 | 46 | 77,5 | 52 | M59x1,5 | 79 |
