Filter

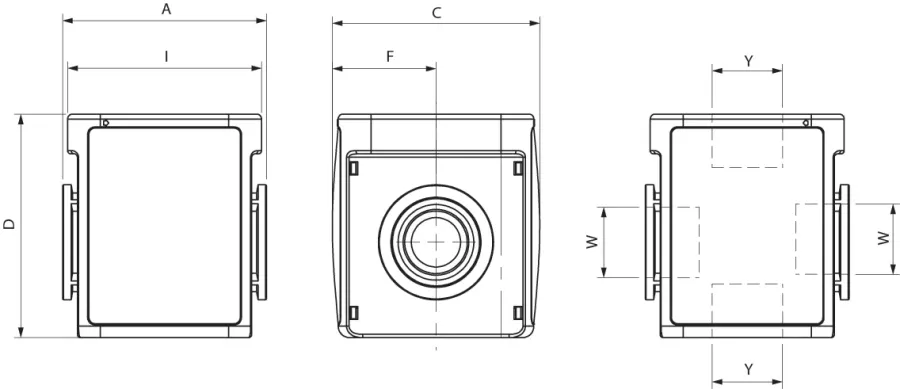

| Code | 3D-Zeichnungen | Nummer | Grösse | Gewinde | Durchfluss | A | C | D | W | F | I | Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y090103030000 | Zugang anfordern | Y090 103 030 000 | DIS 1 | 1/4 - 1/4 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 | |
| Y090104030000 | Zugang anfordern | Y090 104 030 000 | DIS 1 | 3/8 - 1/4 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 | |
| Y090104040000 | Zugang anfordern | Y090 104 040 000 | DIS 1 | 3/8 - 3/8 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 | |
| Y090204030000 | Zugang anfordern | Y090 204 030 000 | DIS 2 | 3/8 - 1/4 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |
| Y090204040000 | Zugang anfordern | Y090 204 040 000 | DIS 2 | 3/8 - 3/8 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |

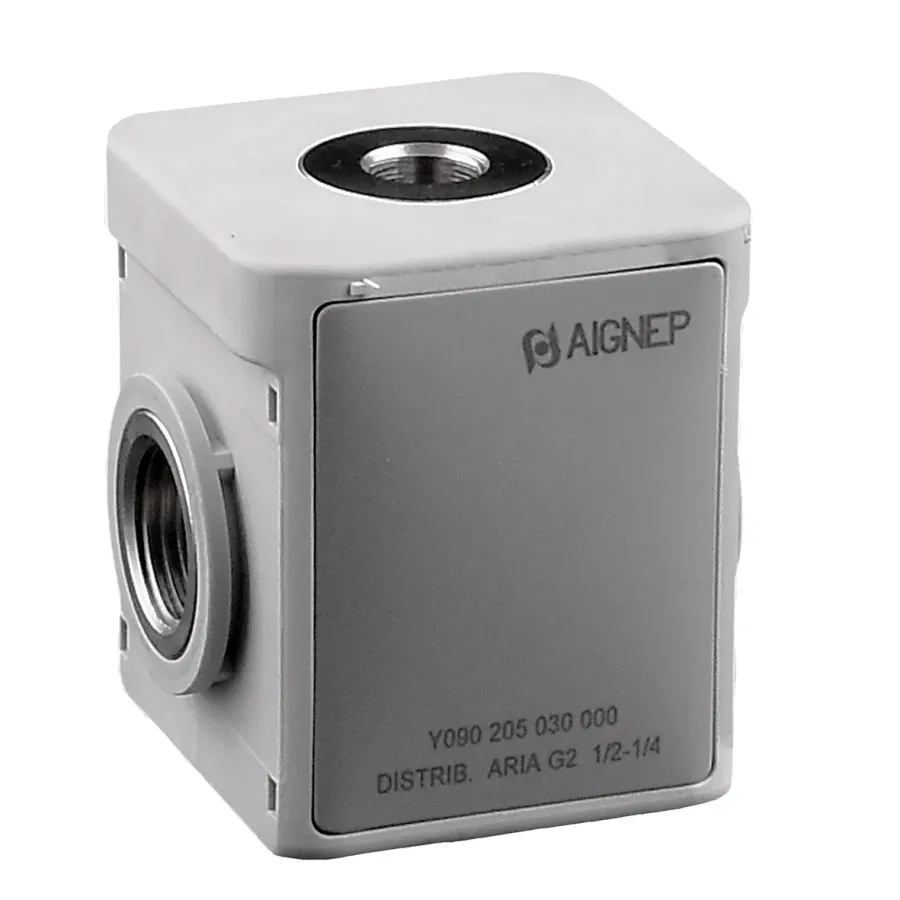

| Y090205030000 | Zugang anfordern | Y090 205 030 000 | DIS 2 | 1/2 - 1/4 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |
| Y090205050000 | Zugang anfordern | Y090 205 050 000 | DIS 2 | 1/2 - 1/2 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |
| Y090307070000 | Zugang anfordern | Y090 307 070 000 | DIS 3 | 3/4 - 3/4 | 11700 Nl/min | 90 | 92 | 89 | 3/4 - 1 | 46 | 77,5 | 3/4 - 1 | |
| Y090309090000 | Zugang anfordern | Y090 309 090 000 | DIS 3 | 1 - 1 | 11700 Nl/min | 90 | 92 | 89 | 3/4 - 1 | 46 | 77,5 | 3/4 - 1 |
