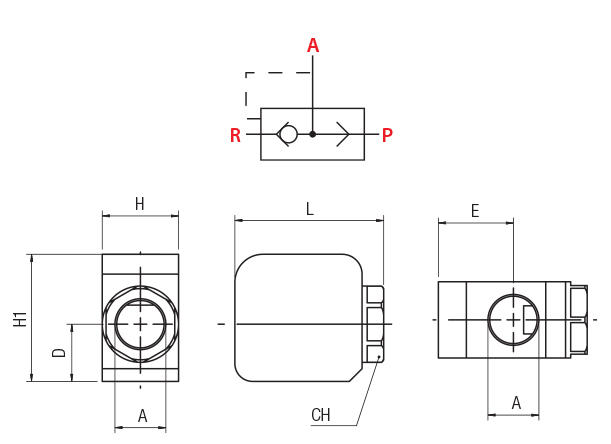

| Nummer | 3D-Zeichnungen | A | H | L | H1 | E | D | CH | DN | * | Verpackung |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 66050 00 001 | Download | 1/8 | 20 | 40 | 33 | 23,5 | 13,5 | 18 | 8 | Membrane FKM | 2 |
| 66050 00 002 | Download | 1/4 | 20 | 40 | 33 | 23 | 13,5 | 18 | 8 | Membrane FKM | 2 |
| 66050 PL 003 | Download | 3/8 | 24 | 50 | 43 | 24 | 20 | 21 | 10 | Membrane PU | 2 |
| 66050 PL 004 | Download | 1/2 | 30 | 58.5 | 50 | 29.5 | 22,5 | 27 | 12 | Membrane PU | 2 |
1/8 - 1/4: MEMBRANE FKM 3/8 - 1/2: MEMBRANE PU
