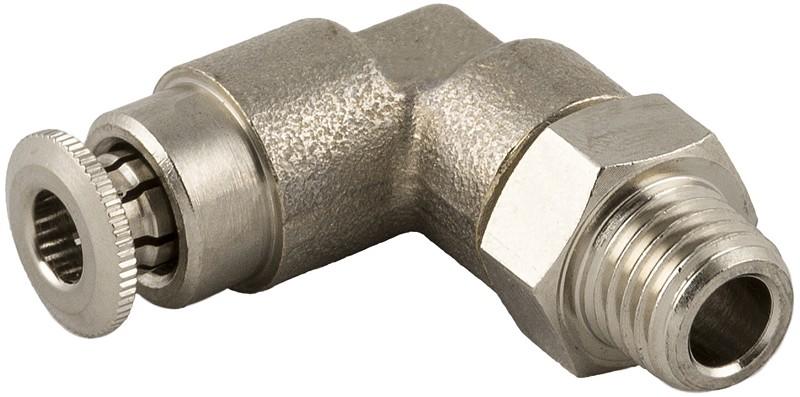

EQUERRE MÂLE ORIENTABLE, CONIQUE
prodotto___rs58000_58111-d
prodotto___rs58000_58111-f

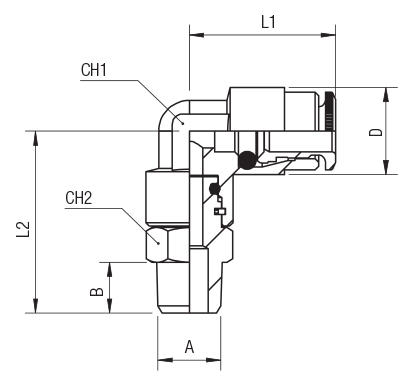

Code Dessins 3D Tube A B L1 L2 CH1 CH2 D Conditionnement
58111 00 001 Demander l'accès 4 M6x1 6 18 22.5 8 11 10.5 10
58111 00 002 Demander l'accès 4 M8x1 6 18 22.5 8 11 10.5 10
58111 00 013 Demander l'accès 4 M8x1.25 7 18 26.5 8 11 10.5 10
58111 00 003 Demander l'accès 4 M10x1 6.5 18 22.5 8 11 10.5 10
58111 00 015 Demander l'accès 4 M10x1.5 7.5 18 26.5 8 11 10.5 10
58111 00 004 Demander l'accès 4 1/8 7.5 18 24 8 11 10.5 10
58111 00 010 Demander l'accès 4 1/4 11 18 26.5 8 14 10.5 10
58111 00 005 Demander l'accès 6 M6x1 6 21 25.5 10 11 13 10
58111 00 006 Demander l'accès 6 M8x1 6 21 25.5 10 11 13 10
58111 00 016 Demander l'accès 6 M8x1.25 7 21 26.5 10 11 13 10
58111 00 007 Demander l'accès 6 M10x1 6.5 21 22.5 10 11 13 10
58111 00 017 Demander l'accès 6 M10x1.5 7.5 21 27 10 11 13 10
58111 00 008 Demander l'accès 6 1/8 7.5 21 27 10 11 13 10
58111 00 009 Demander l'accès 6 1/4 11 21 30 10 14 13 10
