90040-80-110-168

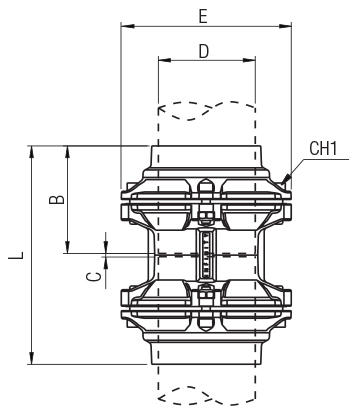

Code | Dessin 3D | D | B | C | E | L | CH1 | Conditionnement | ||
---|---|---|---|---|---|---|---|---|---|---|
90040 00 007 | Download | 80 | 91 | 3.5 | 145 | 186 | 6 | 2 | ||
90040 00 008 | Download | 110 | 125,5 | 4 | 200 | 255 | 8 | 1 | ||
90040 00 009 | Download | 168 | 194 | 5 | 306 | 393 | 10 | 1 |
Code | Dessin 3D | D | B | C | E | L | CH1 | Conditionnement |
---|---|---|---|---|---|---|---|---|
90040 00 007 | Download | 80 | 91 | 3.5 | 145 | 186 | 6 | 2 |
90040 00 008 | Download | 110 | 125,5 | 4 | 200 | 255 | 8 | 1 |
90040 00 009 | Download | 168 | 194 | 5 | 306 | 393 | 10 | 1 |
