90130-80-110-168

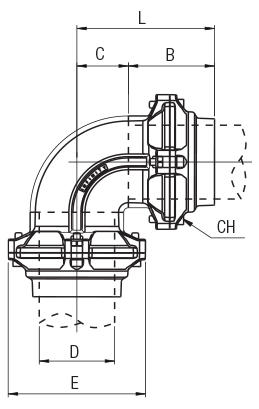

Code | Dessin 3D | D | B | C | E | L | CH | Conditionnement | ||
---|---|---|---|---|---|---|---|---|---|---|
90130 00 007 | Download | 80 | 91 | 54.5 | 145 | 146 | 6 | 2 | ||
90130 00 008 | Download | 110 | 125,5 | 75 | 200 | 200.5 | 8 | 1 | ||
90130 00 009 | Download | 168 | 194 | 117.5 | 306 | 311.5 | 10 | 1 |
Code | Dessin 3D | D | B | C | E | L | CH | Conditionnement |
---|---|---|---|---|---|---|---|---|
90130 00 007 | Download | 80 | 91 | 54.5 | 145 | 146 | 6 | 2 |
90130 00 008 | Download | 110 | 125,5 | 75 | 200 | 200.5 | 8 | 1 |
90130 00 009 | Download | 168 | 194 | 117.5 | 306 | 311.5 | 10 | 1 |
