13570BI

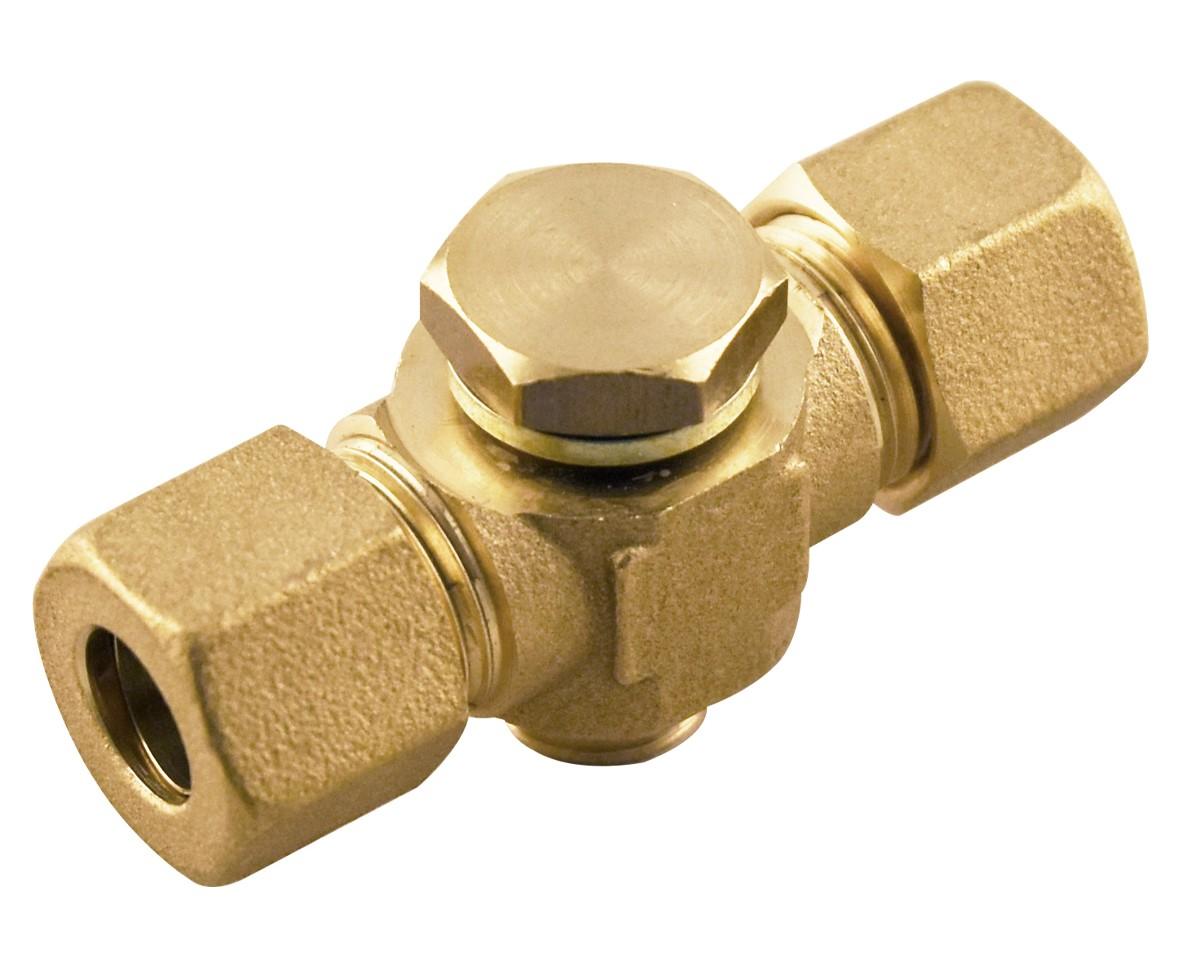

RACCORD BANJO DOUBLE MALE CYLINDRIQUE AVEC JOINT BI-MATIÈRE (16/3)
Caractéristiques Techniques / CatalogueEtiquettes Aignep Scan Certificats
| Code | Dessin 3D | Tube | A | L | L2 | L1 | CH | °C Min | °C Max | Conditionnement |
|---|---|---|---|---|---|---|---|---|---|---|
| 13570 BI 001 | Download | 4 | 1/8 | 45 | 31 | 25 | 14 | -30 | +100 | 10 |
| 13570 BI 002 | Download | 6 | 1/8 | 47 | 31 | 25 | 14 | -30 | +100 | 10 |
| 13570 BI 003 | Download | 6 | 1/4 | 53 | 32 | 25,5 | 17 | -30 | +100 | 10 |
| 13570 BI 004 | Download | 8 | 1/8 | 57 | 36 | 25 | 14 | -30 | +100 | 10 |
| 13570 BI 005 | Download | 8 | 1/4 | 57 | 32 | 26,5 | 17 | -30 | +100 | 10 |
| 13570 BI 006 | Download | 8 | 3/8 | 60 | 36 | 28,5 | 19 | -30 | +100 | 10 |
| 13570 BI 007 | Download | 10 | 1/4 | 63 | 32 | 25,5 | 17 | -30 | +100 | 10 |
| 13570 BI 008 | Download | 10 | 3/8 | 65 | 36 | 28,5 | 19 | -30 | +100 | 10 |
| 13570 BI 027 | Download | 12 | 1/4 | 73 | 44 | 38,5 | 17 | -30 | +100 | 10 |
| 13570 BI 028 | Download | 12 | 3/8 | 73 | 46 | 39 | 19 | -30 | +100 | 10 |
| 13570 BI 009 | Download | 14 | 1/4 | 73 | 44 | 38,5 | 17 | -30 | +100 | 10 |
| 13570 BI 010 | Download | 14 | 3/8 | 73 | 46 | 39 | 22 | -30 | +100 | 10 |
| 13570 BI 011 | Download | 14 | 1/2 | 73 | 49 | 41 | 24 | -30 | +100 | 10 |
| 13570 BI 029 | Download | 15 | 3/8 | 73 | 46 | 39 | 22 | -30 | +100 | 10 |
| 13570 BI 030 | Download | 15 | 1/2 | 73 | 49 | 41 | 24 | -30 | +100 | 10 |
| 13570 BI 031 | Download | 16 | 1/2 | 78 | 49 | 41 | 24 | -30 | +100 | 10 |
| 13570 BI 032 | Download | 18 | 1/2 | 91 | 49 | 41 | 24 | -30 | +100 | 10 |
| 13570 BI 012 | Download | 22 | 3/4 | 93 | 64 | 55 | 32 | -30 | +100 | 10 |
