60020

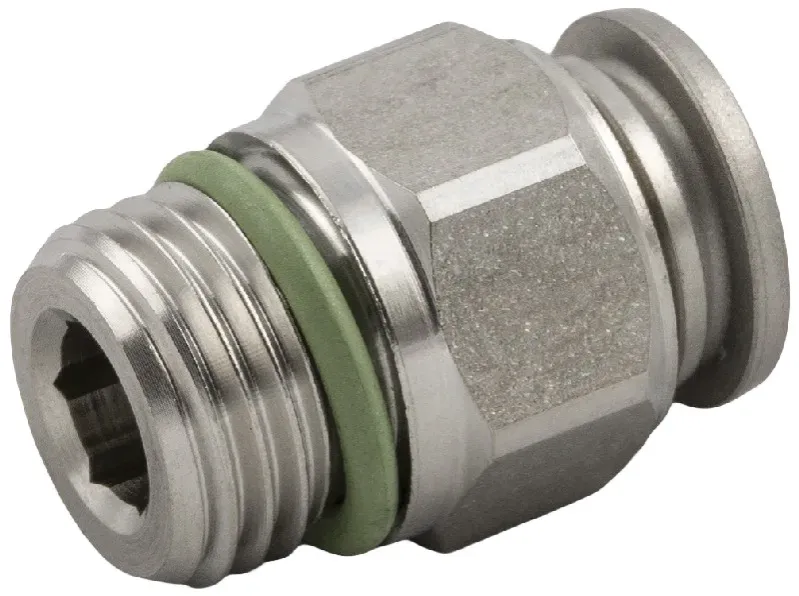

RACCORD DROIT MÂLE, CYLINDRIQUE
Caractéristiques Techniques / CatalogueEtiquettes Aignep Scan Certificats

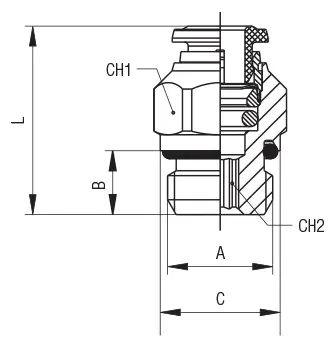

| Code | Dessin 3D | Tube | A | B | C | L | CH1 | CH2 | Conditionnement |
|---|---|---|---|---|---|---|---|---|---|
| 60020 00 011 | Download | 4 | M5 | 4 | 8 | 20 | 10 | 2 | 5 |
| 60020 00 001 | Download | 4 | 1/8 | 6 | 13 | 19.5 | 10 | 3 | 5 |
| 60020 00 002 | Download | 4 | 1/4 | 8 | 15 | 19.5 | 15 | 3 | 5 |
| 60020 00 013 | Download | 6 | M5 | 4 | 10 | 23 | 12 | 2 | 5 |
| 60020 00 003 | Download | 6 | 1/8 | 6 | 13 | 23.5 | 13 | 4 | 5 |
| 60020 00 004 | Download | 6 | 1/4 | 8 | 15 | 23.5 | 15 | 4 | 5 |
| 60020 00 005 | Download | 8 | 1/8 | 6 | 13 | 25.5 | 14 | 5 | 5 |
| 60020 00 006 | Download | 8 | 1/4 | 8 | 15 | 23.5 | 15 | 6 | 5 |
| 60020 00 007 | Download | 10 | 1/4 | 8 | 16 | 30 | 17 | 8 | 2 |
| 60020 00 008 | Download | 10 | 3/8 | 9 | 20 | 27 | 17 | 8 | 2 |
| 60020 00 012 | Download | 10 | 1/2 | 10 | 25 | 30 | 22 | 8 | 2 |
| 60020 00 009 | Download | 12 | 3/8 | 9 | 21 | 34 | 21 | 8 | 2 |
| 60020 00 010 | Download | 12 | 1/2 | 10 | 25 | 31 | 22 | 10 | 2 |
| 60020 00 014 | Download | 14 | 1/2 | 10 | 25 | 32 | 22 | 11 | 2 |
| 60020 00 015 | Download | 16 | 3/8 | 9 | 24 | 36 | 24 | 10 | 2 |
| 60020 00 016 | Download | 16 | 1/2 | 10 | 25 | 37 | 25 | 12 | 2 |
